Product Specifications
| Prod Model: |
TC-171 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory Channels: |
128 Channels |
| Antenna Impedance: |
50 |
| Weight(Approx.): |
1200g(Except Antenna ) |
| Frequency Stability: |
±2.5ppm |
| Dimension(Approx.)(Except Antenna ): |
160*43*137mm |
| Output Power: |
50W/20W(VHF) 40W/20W(UHF) |
| Audio Response: |
+1/-3db |
| Spurious Radiation: |
< 60db |
| Modulation Distortion: |
≤5% |
| Adjacent Channel Power: |
≥65db/25kHz |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description

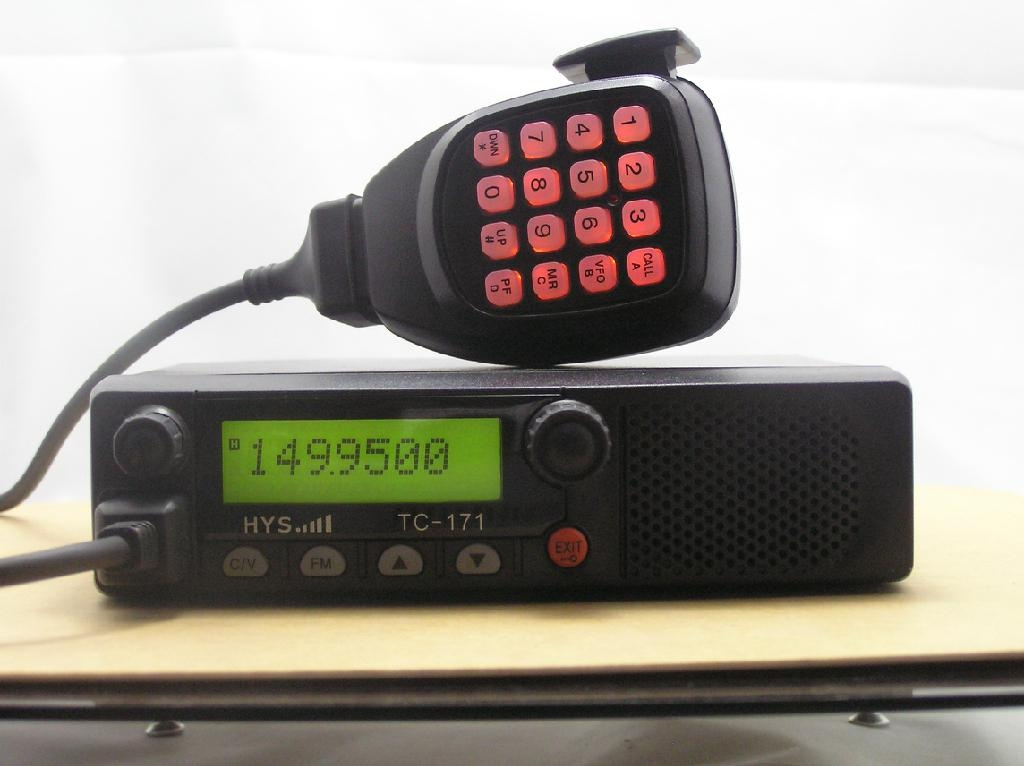

VHF/UHF Mobile Car Two Way Radio TC-171
Product Description:
Main feature:
1. High power 50W output for VHF
2. Tough!
3. Compatible With American Military Standard(MIL-STD-810C/D/E)· High quality front speaker
4. 128 memory channels, plus one call channel
5. 6 alphanumeric characters offers 100 memory channels
6. Multiple scan functions
7. CTCSS & DCS encoder/decoder
8. FM Receive frequency: 87-108MHz
9. High frequency stability with built-in TCXO
General Specification:
Frequency Range: VHF: 136-173MHZ
UHF: 400-470MHZ, 440-480MHZ
Operating Voltage: 13.8V DC cathode grounded
Operate Mode: Co-channels or dis-channel simplex
CTCSS/DSC: CTCSS: 50, DCS: 105
Memory Channels: 128 Channels
Frequency Stability: ± 2.5PPM
Antenna Impedance: 50Ω
Operating Temperature: -30º C to +60º C
Weight(approx. ): 1200g(Except antenna )
Dimension(approx. )(Except antenna ): 160*43*137mm
Transmitter(Testing under TIA/EIA-603 standard)
Output Power: 50W/20W(VHF) 40W/20W(UHF)
Modulation Mode: 16K¢ F3E/11K¢ F3E
Audio Response: +1/-3dB
Frequency Stability: ± 2.5ppm
Spurious Radiation: < 60dB
Modulation Distortion: ≤ 5%
Channel Spacing: ≤ 25KHz (width)/12.5KHz(narrow)
Adjacent channel power: ≥ 65dB/25KHz
Receiver(Testing under TIA/EIA-603 standard)
Sensitivity: ≤ 0.8uV
Squelch Sensitivity: ≤ 0.2uV
Adjacent channel selectivity: ≥ 60dB
Intermodulation Rejection: ≥ 60dB
Audio output power: 500mW
Audio Distortion: ≤ 5%
Co-channel restrain: ≥ -0.8dB
Blocking: ≥ 84dB
| General Specification | | Frequency Range | VHF:136-173MHZ
UHF:400-470MHZ ,440-480MHZ | Operating Voltage | 13.8V DC cathode grounded | | Operate Mode | Co-channels or dis-channel simplex | CTCSS/DSC | CTCSS:50 DCS:105 | | Memory Channels | 128 Channels | Frequency Stability | ±2.5PPM | | Antenna Impedance | 50Ω | Operating Temperature | -30 to +60 | | Weight(approx.) | 1200g(Except antenna ) | Dimension(approx.)(Except antenna ) | 160*43*137mm | | Transmitter(Testing under TIA/EIA-603 standard) | | Output Power | 50W/20W(VHF) 40W/20W(UHF) | Modulation Mode | 16K F3E/11K F3E | | Audio Response | +1/-3dB | Frequency Stability | ±2.5ppm | | Spurious Radiation | < 60dB | Modulation Distortion | ≤5% | | Channel Spacing | ≤25KHz (width)/12.5KHz(narrow) | Adjacent channel power | ≥65dB/25KHz | | Receiver(Testing under TIA/EIA-603 standard) | | Sensitivity | ≤0.8uV | Squelch Sensitivity | ≤0.2uV | | Adjacent channel selectivity | ≥60dB | Intermodulation Rejection | ≥60dB | | Audio output power | 500mW | Audio Distortion | ≤5% | | Co-channel restrain | ≥-0.8dB | Blocking | ≥84dB |
|
|
|
|
