Product Specifications
| Prod Model: |
TC-271 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory Channels: |
128 Channels |
| Antenna Impedance: |
50 |
| Weight(Approx.): |
1200g(Except Antenna ) |
| Ctcss/DSC: |
Ctcss:50 Dcs:105 |
| Frequency Stability: |
±2.5ppm |
| Output Power: |
50W/20W(VHF) 40W/20W(UHF) |
| Audio Response: |
+1/-3db |
| Spurious Radiation: |
< 60db |
| Channel Spacing: |
≤25kHz (Width)/12.5kHz(Narrow) |
| Sensitivity: |
≤0.8UV |
| Application: |
Industrial |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description

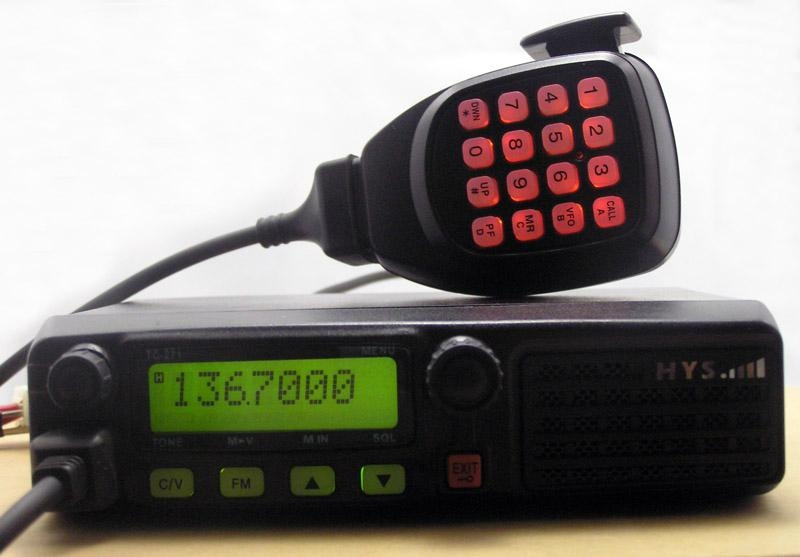

TC-271 Newest Single band VHF or UHF Mobile Transceiver
Product Description:
General Specification:
Frequency RangeVHF: 136-173MHZ, UHF: 400-470MHZ, 440-480MHZ
Operating Voltage: 13.8V DC cathode grounded
Operate Mode: Co-channels or dis-channel simplex
CTCSS/DSC: CTCSS: 50 DCS: 105
Memory Channels: 128
ChannelsFrequency Stability: ± 2.5PPM
Antenna Impedance: 50Ω
Operating Temperature: -30º C to +60º C
Weight(approx. ): 1200g(Except antenna )
Dimension(approx. )(Except antenna ): 160*43*137mm
Transmitter(Testing under TIA/EIA-603 standard):
Output Power: 50W/20W(VHF) 40W/20W(UHF)
Modulation Mode: 16K¢ F3E/11K¢ F3E
Audio Response: +1/-3dB
Frequency Stability: ± 2.5ppm
Spurious Radiation: < 60dB
Modulation Distortion: ≤ 5%
Channel Spacing: ≤ 25KHz (width)/12.5KHz(narrow)
Adjacent channel power: ≥ 65dB/25KHz
Receiver(Testing under TIA/EIA-603 standard):
Sensitivity: ≤ 0.8uVSquelch S
ensitivity: ≤ 0.2uV
Adjacent channel selectivity: ≥ 60dB
Intermodulation Rejection: ≥ 60dB
Audio output power: 500mW
Audio Distortion: ≤ 5%
Co-channel restrain: ≥ -0.8dB
Blocking: ≥ 84dB
| General Specification |
| Frequency Range | VHF:136-173MHZ
UHF:400-470MHZ ,440-480MHZ | Operating Voltage | 13.8V DC cathode grounded |
| Operate Mode | Co-channels or dis-channel simplex | CTCSS/DSC | CTCSS:50 DCS:105 |
| Memory Channels | 128 Channels | Frequency Stability | ±2.5PPM |
| Antenna Impedance | 50Ω | Operating Temperature | -30 to +60 |
| Weight(approx.) | 1200g(Except antenna ) | Dimension(approx.)(Except antenna ) | 160*43*137mm |
| Transmitter(Testing under TIA/EIA-603 standard) |
| Output Power | 50W/20W(VHF) 40W/20W(UHF) | Modulation Mode | 16K F3E/11K F3E |
| Audio Response | +1/-3dB | Frequency Stability | ±2.5ppm |
| Spurious Radiation | < 60dB | Modulation Distortion | ≤5% |
| Channel Spacing | ≤25KHz (width)/12.5KHz(narrow) | Adjacent channel power | ≥65dB/25KHz |
| Receiver(Testing under TIA/EIA-603 standard) |
| Sensitivity | ≤0.8uV | Squelch Sensitivity | ≤0.2uV |
| Adjacent channel selectivity | ≥60dB | Intermodulation Rejection | ≥60dB |
| Audio output power | 500mW | Audio Distortion | ≤5% |
| Co-channel restrain | ≥-0.8dB | Blocking | ≥84dB |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
