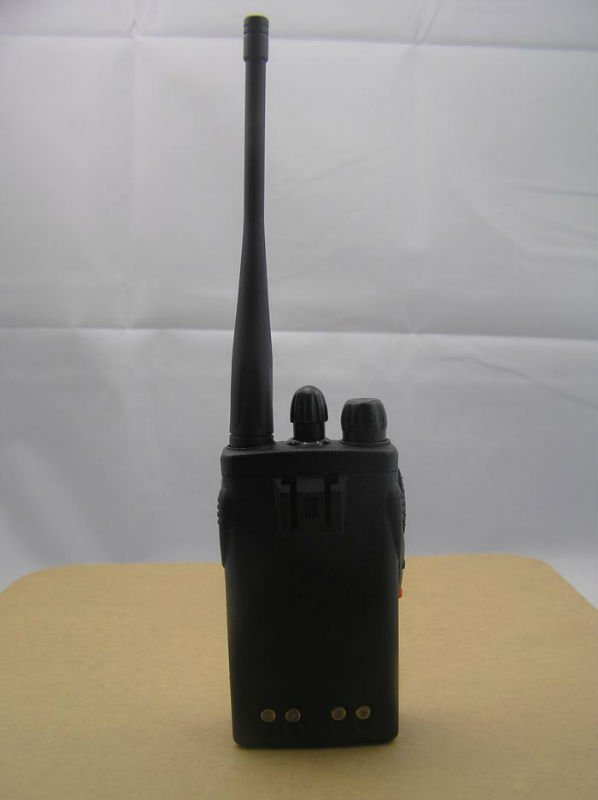

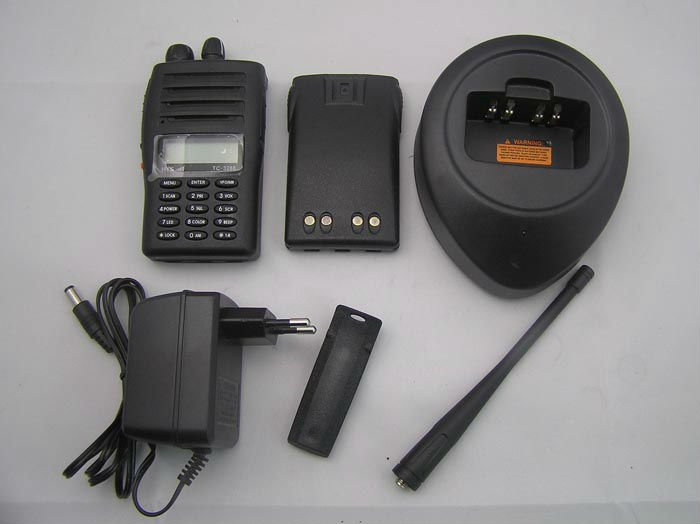

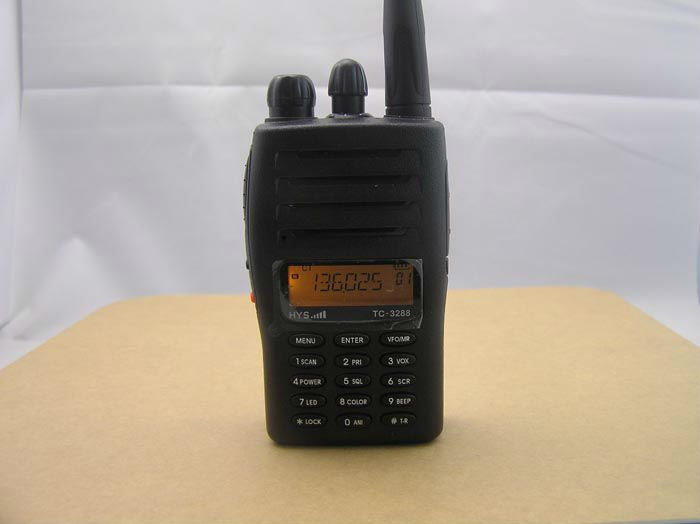

Tc-3288 VHF/UHF 5W Handheld Walkie Talkie and Portable FM Transceiver

Name: Tc-3288 VHF/UHF 5W Handheld Walkie Talkie and Portable FM Transceiver
Brand: china-manufacturer-directory.com
SKU: 679021495
Availability: InStock
Rating: 4.7 (45 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	TC-3288
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	VHF 136-174MHz 230-260MHz UHF 350-390MHz 400-470mh
Storage Channel:	128 Channels
Vox:	Built-in
PC Programmable:	Yes
Bandwidth:	Wide/Narrow
Frequency Step Selectable:	Yes
Output Power:	VHF:5W UHF:4W
LCD Backlight:	Three-Color
Squelch Level Adjustable:	Yes
Power Save:	Yes
Style:	Handheld
Talk Range:	8km Max
Usage:	Home
Battery Type:	Lithium Battery
Type:	Handheld
Display:	With Display

Product Description

Long Range Amateur 2 Way Radio
1.VHF:136-174MHZ, UHF:400-470MHZ,440-510MHZ
2.Scrambler function
3.4W/5W Output Power

Features

Three-color LCD Backlight Display
128 Momory Frequency Channels
Built-in VOX
Scan Function
Emergency Alarm
PC Programmable
Wide/Narrow Bandwidth Selectable
Keypad Lock
ANI Function(Optional)
Scrambler(Optional)
VOX Function
Squelch Level Selectable
Beep Function
Setting QT
Setting Offset Frequency
Offset Frequency Selectable
Frequency Step Selectable

General Specifications
Frequency Range	VHF:136-174MHz 230-260MHz UHF:350-390MHz;400- 470MHz;440-512MHz
Memory Channels	128
Channel Spacing	25/12.5KHz
Working Mode	Co-channel or Dis-channel Simplex
Voltage	DC 7.2V
Battery capacity	1400mAh(Li-ion)
Average battery life (at 5/5/90 duty cycle with battery saver )	About 15 hrs
Frequency Stability	±2.5ppm
Operating Temperature	-20°C/+50°C
Antenna Impedance	50Ω
Dimensions (H×W×D)(W/Battery,W/o Antenna)	100mm×55mm×32mm
Weight	about 220g
Transmitter
Power Output	VHF:5W/UHF:4W
Maximum Deviation	≤5KHz
Audio Distortion	≤3%
Modulation Characteristic	+3dB_-3dB
Adjacent Channel Power	≥65dB
Spurious Radiation	≤7.5μW
Occupied Bandwidth	≤16KHz
S/N	40/34dB
Receiver
RF Sensitivity	<0.2μV
Audio Distortion	≤3%
Audio Response	+2dB
Adjacent Channel Selectivity	≥60dB
Intermodulation Rejection	≥60dB
Spurious Response	≥60dB
Block Characteristic	≥85dB
S/N	40/34dB

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
