Product Specifications
| Prod Model: |
TC-3288N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory Channels: |
128 |
| Channel Spacing: |
25/12.5kHz |
| Working Mode: |
Co-Channel or Dis-Channel Simplex |
| Voltage: |
DC 7.2V |
| Battery: |
1200mAh(Li-ion) |
| Average Battery Life: |
About 15 Hrs |
| Frequency Stability: |
+-2.5ppm |
| Antenna Impedance: |
50 |
| Dimensions: |
100mm*55mm*32mm |
| Weight: |
About 220g |
| Application: |
Industrial |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description

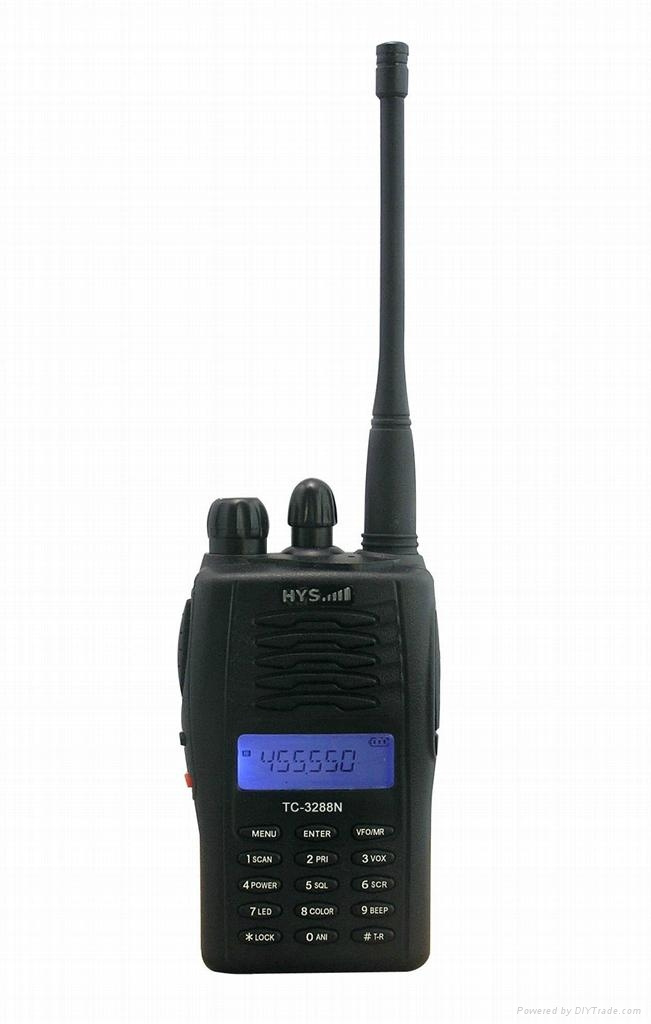

TC-3288N High quality Scramble Function VHF or UHF Handheld Two Way Radio
Product Description:
Main Features:
1. Three-color LCD Backlight
2. Scan
3. Emergency Alarm
4. PC Programming
5. W/N Bandwidth Shift
6. Keylock
7. VOX
8. Squelch Level
9. Reverse Frequency
10. Priority Channel Scan
11. High/Low power
12. TOT
13. Call
14. Channel named by letter
15. Beep Function
16. Setting QT
17. Setting Offset Frequency
18. Monitor
19. Offset Frequency Selectable
20. Frequency Step Selectable
21. ANI Function(Optional)
22. Scrambler(Optional)
Specifications:
General Specifications:
Frequency Range : VHF: 136-174MHz 230-260MHz
UHF: 350-390MHz 400-470MHz 440-512MHz
Memory Channels: 128
Channel Spacing: 25/12.5KHz
Working Mode: Co-channel or Dis-channel Simplex
Voltage: DC 7.2V
Battery: 1200mAh(Li-ion)
Average battery life (at 5/5/90 duty cycle with battery saver ): About 15 hrs
Frequency Stability: ± 2.5ppm
Operating Temperature: -20º C/+50º C
Antenna Impedance: 50Ω
Dimensions (H× W× D)(mm) (W/Battery, W/o Antenna): 100mm× 55mm× 32mm
Weight about: 220g
Transmitter (Measurements made per TIA/EIA-603):
Power Output: VHF: 5W/UHF: 4W
Maximum Deviation: ≤ 5KHz
Audio Distortion: ≤ 3%
Modulation Characteristic: +3dB— -3dB
Adjacent Channel Power : ≥ 65dB
Spurious Radiation: ≤ 7.5μ W
Occupied Bandwidth: ≤ 16KHz
S/N: 40/34dB
Receiver (Measurements made per TIA/EIA-603):
RF Sensitivity: <0.2μ V
Audio Distortion: ≤ 3%
Audio Response: +2dB— -10dB
Adjacent Channel Selectivity: ≥ 60dB
Intermodulation Rejection: ≥ 60dB
Spurious Response: ≥ 60dB
Block Characteristic: ≥ 85dB
S/N: 40/34dB
| Specifications |
| General Specifications |
| Frequency Range | VHF:136-174MHz 230-260MHz UHF:350-390MHz 400-470MHz 440-512MHz |
| Memory Channels | 128 |
| Channel Spacing | 25/12.5KHz |
| Working Mode | Co-channel or Dis-channel Simplex |
| Voltage | DC 7.2V |
| Battery | 1200mAh(Li-ion) |
| Average battery life (at 5/5/90 duty cycle with battery saver ) | About 15 hrs |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20deg/+50deg |
| degAntenna Impedance | 50Ω |
| Dimensions (H×W×D)(mm) (W/Battery,W/o Antenna) | 100mm×55mm×32mm |
| Weight | about 220g |
| Transmitter (Measurements made per TIA/EIA-603) |
| Power Output | VHF:5W/UHF:4W |
| Maximum Deviation | ≤5KHz |
| Audio Distortion | ≤3% |
| Modulation Characteristic | +3dB_-3dB |
| Adjacent Channel Power | ≥65dB |
| Spurious Radiation | ≤7.5μW |
| Occupied Bandwidth | ≤16KHz |
| S/N | 40/34dB |
| Receiver (Measurements made per TIA/EIA-603) |
| RF Sensitivity | <0.2μV |
| Audio Distortion | ≤3% |
| Audio Response | +2dB_-10dB |
| Adjacent Channel Selectivity | ≥60dB |
| Intermodulation Rejection | ≥60dB |
| Spurious Response | ≥60dB |
| Block Characteristic | ≥85dB |
| S/N | 40/34dB |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
