Quanzhou Truest Communication Co., Ltd. >> Tc-3288n VHF or UHF 5W Long Range Walky Talky for Security Guard Equipment

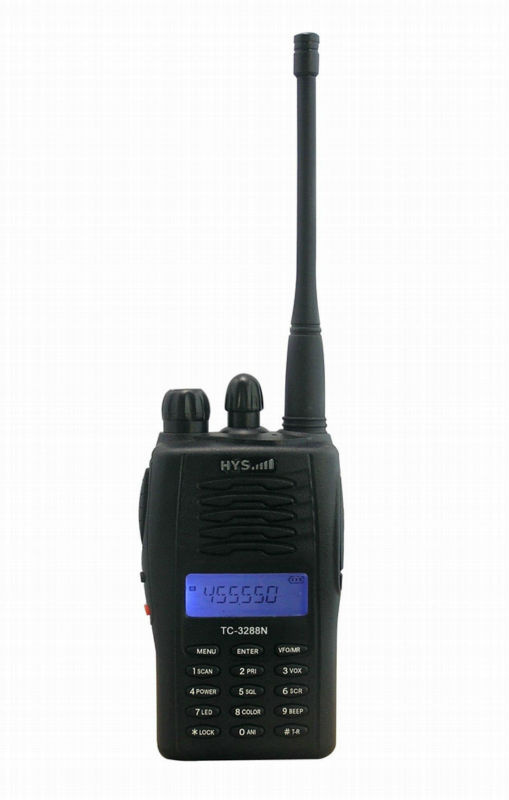

Tc-3288n VHF or UHF 5W Long Range Walky Talky for Security Guard Equipment

Name: Tc-3288n VHF or UHF 5W Long Range Walky Talky for Security Guard Equipment
Brand: china-manufacturer-directory.com
SKU: 745166065
Availability: InStock
Rating: 4.9 (150 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	TC-3288N walky talky
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	VHF:136-174 or 230-260MHz UHF:350-390 or 400-470 O
Storage Channel:	128 Channels
Vox:	Built-in
PC Programmable:	Yes
Bandwidth:	Wide/Narrow
Frequency Step Selectable:	Yes
Output Power:	VHF:5W UHF:4W
LCD Backlight:	Three-Color
Squelch Level Adjustable:	Yes
Power Save:	Yes
Style:	Handheld
Talk Range:	8km Max
Usage:	Home
Battery Type:	Lithium Battery
Type:	Handheld
Display:	With Display

Product Description

1. Frequency Range: VHF: 136-174 or 230-260MHz
UHF: 350-390 or 400-470 or 440-512MHz
2. Output Power: VHF: 5W
UHF: 4W
3. Storage Channel: 128
4. VOX Function
5. Three-color LCD Backlight
6. Priority Channel Scan
7. Emergency Alarm
8. PC Programming
9. Wide/Narrow Bandwidth Shift
10. Squelch Level adjustable
11. High/Low power
12. TOT (Time Out Timer)
13. Setting Offset Frequency
14. Scrambler(Optional)
15. ANI Function(Optional)

Specifications
General Specifications
Frequency Range	VHF:136-174MHz 230-260MHz UHF:350-390MHz 400-470MHz 440-512MHz
Memory Channels	128
Channel Spacing	25/12.5KHz
Working Mode	Co-channel or Dis-channel Simplex
Voltage	DC 7.2V
Battery	1400mAh(Li-ion)
Average battery life (at 5/5/90 duty cycle with battery saver )	About 15 hrs
Frequency Stability	±2.5ppm
Operating Temperature	-20°C/+50°C
Antenna Impedance	50Ω
Dimensions (H×W×D)(mm) (W/Battery,W/o Antenna)	100mm×55mm×32mm
Weight	about 220g
Transmitter (Measurements made per TIA/EIA-603)
Power Output	VHF:5W/UHF:4W
Maximum Deviation	≤5KHz
Audio Distortion	≤3%
Modulation Characteristic	+3dB_-3dB
Adjacent Channel Power	≥65dB
Spurious Radiation	≤7.5μW
Occupied Bandwidth	≤16KHz
S/N	40/34dB
Receiver (Measurements made per TIA/EIA-603)
RF Sensitivity	<0.2μV
Audio Distortion	≤3%
Audio Response	+2dB_-10dB
Adjacent Channel Selectivity	≥60dB
Intermodulation Rejection	≥60dB
Spurious Response	≥60dB
Block Characteristic	≥85dB
S/N	40/34dB

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
