Quanzhou Truest Communication Co., Ltd. >> New Arrival 10W UHF Portable Two Way Radio Tc-P10W

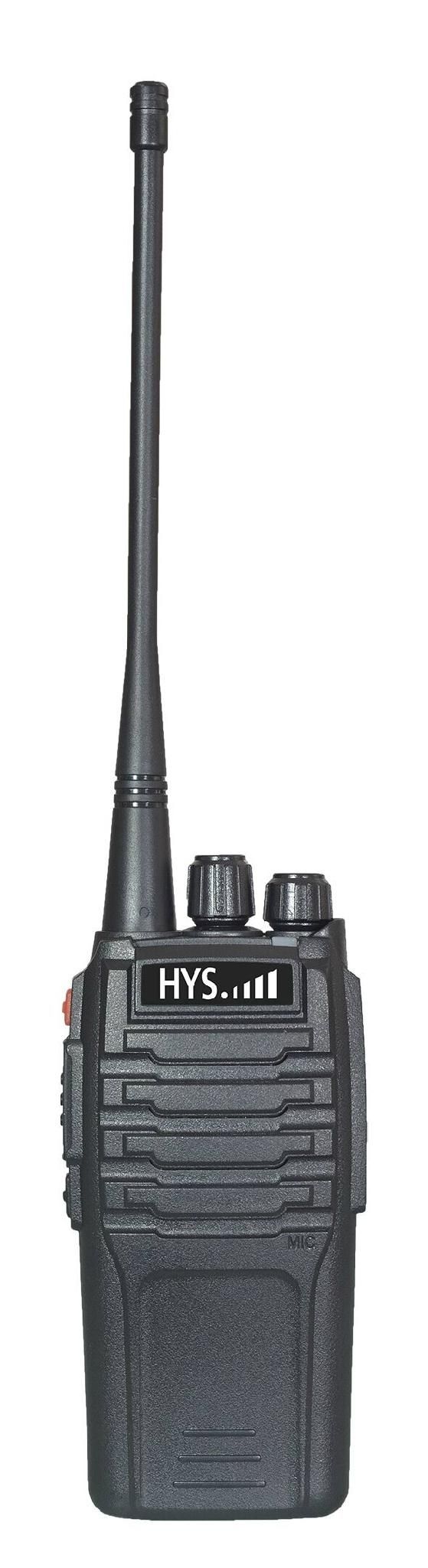

New Arrival 10W UHF Portable Two Way Radio Tc-P10W

Name: New Arrival 10W UHF Portable Two Way Radio Tc-P10W
Brand: china-manufacturer-directory.com
SKU: 759122085
Availability: InStock
Rating: 4.3 (29 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TC-P10W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	400-480MHz
Frequency Combination:	Phase Lock Loop Frequency Synthesize
Memory Channels:	16 Channels
Operating Voltage:	DC7.4V
Battery Capacity:	2200mAh(Li-ion Battery)
Ctcss/DSC:	Ctcss:50 Dcs:105 Selectable
Dimension:	1305937.5mm
Output Power:	10W
Scrambler:	Support
Voice Prompt:	Support
Application:	Military
Wavelength And Frequency:	Middle-wave
Condition:	New
Screen:	Without Screen
Standard:	Standard

Product Description

New Arrival 10W UHF Portable two way Radio TC-P10W

Main Functions:
Busy Channel Lock
Monitor
CTCSS,DCS
Scrambler
Voice Prompt
2200Mah High Capacity Li-ION Battery Pack

Frequency Range	400-480MHZ	Frequency combination	Phase lock loop frequency synthesize
Memory Channels	16 Channels	Operating Voltage	DC7.4V
Channel Spacing	12.5/25KHz	Battery Capacity	2200MAH(Li-ion battery)
Frequency Stability	±2.5PPM	CTCSS/DSC	CTCSS:50 DCS:105 Selectable
Antenna Impedance	50Ω	Operating Temperature	-10ºCto +60ºC
Weight(approx.)	290 g (Except battery and antenna )	Dimension(approx.)	130×59×37.5mm (Except Antenna)
Transmitter(Testing under TIA/EIA-603 standard)
Output Power	10W (High),5W(Low)	Modulation Mode	16K¢F3E
MAX. Frequency Deviation	≤±5.0KHz	Frequency Stability	±5ppm
Spurious Radiation	≤60dB	Residual Modulation	≤-35dB
Modulation Distortion	≤5%(300-3000Hz)	FM Noise	≤-40dB
Audio Distortion	≤5%	CTCSS Frequency Deviation	0.75KHz±50Hz
Receiver(Testing under TIA/EIA-603 standard)
Sensitivity	≤0.20uV	Operating Bandwidth	≥±7KHz
Squelch Sensitivity	≤0.15uV	Frequency Stability	±5ppm
Adjacent channel selectivity	≥60dB	Spurious Rejection	≥60dB
Intermodulation Rejection	≥60dB	FM Noise	≤-45dB
Audio Power	≥600mW	Audio Distortion	<5%

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
