Price: | Negotiable/Piece |
---|---|
Trade Terms: | EXW |
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal,Western Union |

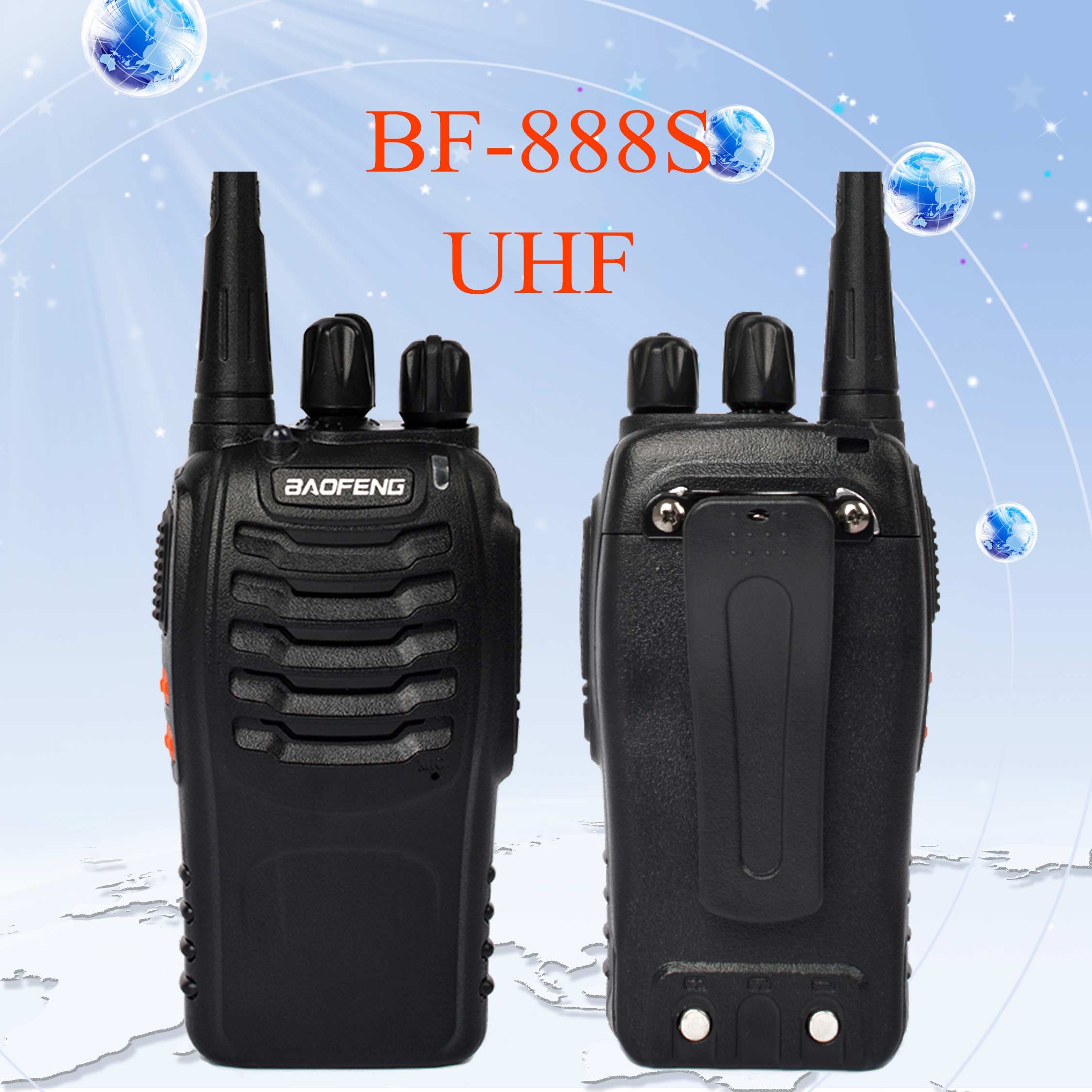

Cheapest Long Range UHF Baofeng Handheld Two Way Radio BF-888s
Description
1) Output: ≤ 5W
2) Frequency: 400.00-470.MHz
3) 16 Channels
4) PC Program
5) Flashlight Function
6) 50 CTCSS and 210 DCS Codes
7) Squelch Level
8) Battery Saving
9) VOX (Voice Operated Transmitting)Function
10) Busy Channel Lock
11) Low Battery Warning
12) Over Voltage or Low Voltage Protection
13) Channel Monitor
14) TOT (Time-out Timer)
15) Scrambling Function
16) Noise Reduction
17) Scanning Function
18) Dimension: 97x57x29 mm
Technical specification
General
Frequency Range: | 400.00- 470.00MHz |
Storage Channel | 16 |
Rated voltage | DC3.7 V |
Battery Capacity | H-1500 mAh |
Battery Life | About 8 Hours |
Frequency Stability | ±2.5ppm |
Work Temperature | -20 ºC to +60ºC |
Frequency Combination | PLL frequency synthesis |
Antenna Impedance | 50 Ω |
Wok Mode | Same Frequency simplex Operation or Different Frequency simplex Operation |
Dimension | 97x57x29mm (Excluded Antenna) |
Transmitter
Output Power | ≤5 W |
Modulation Mode(W/N Band) | FM (F3E) |
Maximum Frequency Deviation (W/N Band) | <5KHz(W), <2.5KHz(N) |
Spurious Power | ≤7.5 µW |
Adjacent channel power | 65dB (W) ,55dB (N) |
Spurious Radiation | <-60 dB |
Audio Distortion | <5 % |
SNR | 45 dB(W), 42dB(N) |
CTSCC/DCS Frequency Deviation(W/N Band) | 0.7±0.1KHz (W), 0.4±0.1KHz (N) |
Transmitting Current | ≤1200mA |
Receiver
Sensitivity | <0.20 µ V (12dB SINAD) |
Audio Power | 1 W |
Inter modulation Interference Resistance | ≥65dB (W), ≥55dB (N) |
Adjacent channel Sensitivity (W/N Band) | ≥65dB (W), ≥55dB (N) |
Audio Distortion | 5 % |
Receiving Current | ≤ 400m A |
Prod Model: | BF-888s |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimensions: | 97*57*29 mm |
Frequency Range: | 400-470MHz |
Storage Channel: | 16 Channels |
Output Power: | Less Than 5 W |
Modulation Mode(W/N Band): | FM (F3e) |
Frequency Combination: | Pll Frequency Synthesis |
Application: | Military |
Certification: | CE |
Style: | Sky Wave |
Condition: | New |
Standard: | Standard |
Screen: | Without Screen |
