Product Specifications
| Prod Model: |
TC-819DP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Dpmr Digital Radio |
| Brand Name: |
Hys |
| Type: |
Digital Radio |
| Model: |
Tc-819dp |
| Frequency Range: |
136-174 MHz/400-470 MHz |
| Channel Spacing: |
12.5kHz(Digital)/ 25kHz(Analog),6.25kHz(Digital)/1 |
| Channel Capacity: |
256 |
| Operating Voltage: |
DC7.4V±15% |
| Battery Pack: |
1800mAh |
| RF Power: |
VHF:5W/1W/UHF:4W/1W |
| Wavelength And Frequency: |
Long-wave |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
| Style: |
. |
Product Description

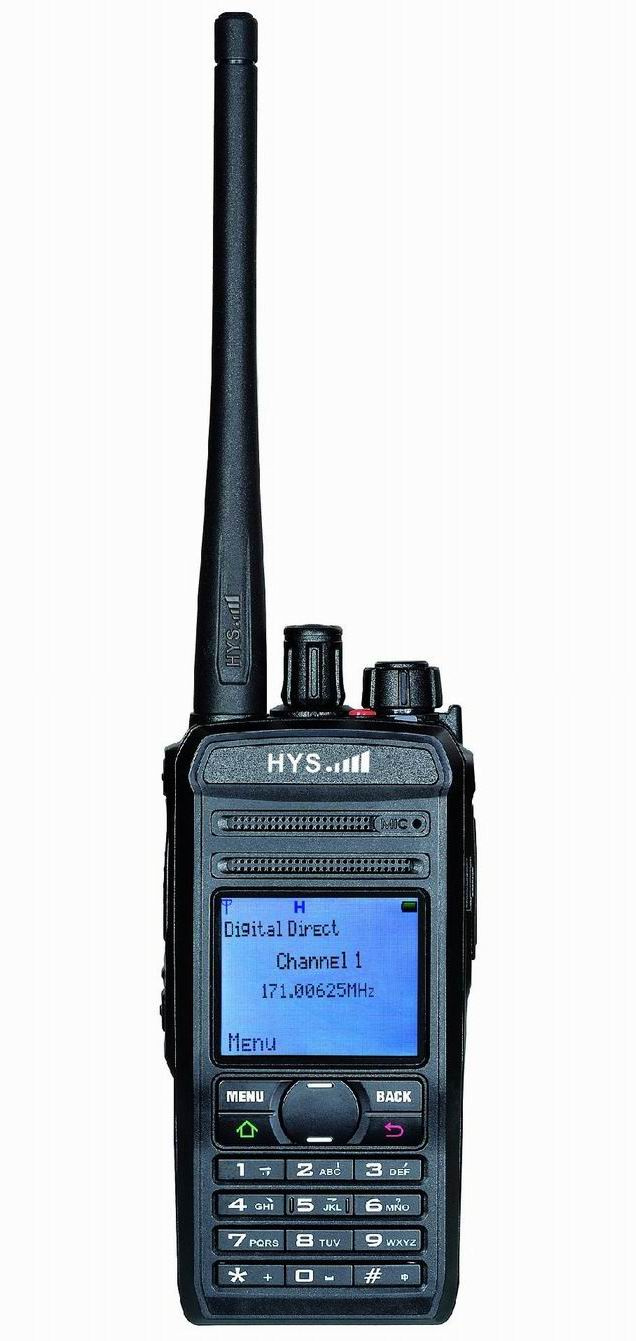

TC-819DP Hot selling 256CH VHF or UHF walkie talkie DPMR digital two way radio
Product Description:
Main feature:
1. Digital/Analog Modes
2. 6.25KHz Channel Spacing
3. Chinese/English Menu Display
4. Multi-call Modes
5. Remote Kill
6. SMS Function
7. Emergency Alarm Function
8. Call Recording and Playback (Optional)
9. GPS RX Positioning (Optional)
10. Scan Function
11. Tone Tail Elimination
12. HIgh/Low Power Selective
13. Call Digital Encryption Function
Specifications:
Frequency Range: 136-174 MHz/400-470 MHz
Channel Spacing: 12.5KHz(Digital)/ 25KHz(Analog), 6.25KHz(Digital)/12.5KHz(Analog)
Channel Capacity: 256
Operating Voltage: DC7.4V±15%
Operating Temperature: -20ºC~ +60ºC
Battery Pack: 1800mAh
RF Power: VHF:5W/1W/UHF:4W/1W
Frequency Modulation: 4FSK(Digital); 11KΦF3E/16KΦF3E(Analog)
4FSK Modulation Accuracy: ≤5%
Adjacent Channel Power: ≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥60dB @ 6.25KHz;
Adjacent Channel Selectivity: ≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥50dB @ 6.25KHz;
Digital Sensitivity: -110dBm (BER ≤1%)
Dimensions(W×H×D): 60mm × 135mm × 36mm
Weight: 262g(With Belt Clip and Antenna)
General Specification |
Frequency Range |
136-174 MHz; 400-470 MHz |
446MHz |
Channel Spacing |
12.5KHz(Digital)/ 25KHz(Analog) |
6.25KHz(Digital)/12.5KHz(Analog) |
Channel Capacity |
256 |
Operating Voltage |
DC7.4V±15% |
Operating Temperature |
-20ºC~ +60ºC |
Battery Pack |
1800mAh |
RF Power |
VHF:5W/1W; UHF:4W/1W |
Frequency Modulation |
4FSK(Digital); 11KΦF3E/16KΦF3E(Analog) |
4FSK Modulation Accuracy |
≤5% |
Adjacent Channel Power |
≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥60dB @ 6.25KHz; |
Adjacent Channel Selectivity |
≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥50dB @ 6.25KHz; |
Digital Sensitivity |
-110dBm (BER ≤1%) |
Dimensions(W×H×D) |
60mm × 135mm × 36mm |
Weight |
262g(With Belt Clip and Antenna) |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
