Product Specifications
| Prod Model: |
TC-8600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
VHF or UHF Mobile Radio |
| Brand Name: |
Hys |
| Type: |
Vehicle Type Radio |
| Color: |
Black |
| Frequenvy Range: |
136-174/245-246/400-490MHz |
| Channel Capacity: |
200 |
| Channel Spacing: |
5/6.25/8.33/10/12.5/15/20/25/30/50kHz |
| Operating Voltage: |
13.8V DC ± 15% |
| RF Power: |
45W/25W/10W(UHF)/60W/25W/10W(VHF) |
| Freruency Stability: |
2.5ppm |
| Wavelength And Frequency: |
Long-wave |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
| Style: |
. |
Product Description

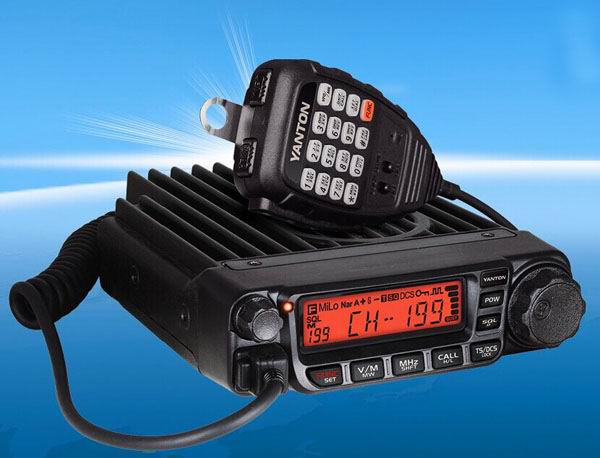

TC-8600 High quality Voice compander CTCSS DCS VHF or UHF Mobile radio
Product Description:
Main feature:
1. 1750Hz Tone
2. CTCSS/DCS setting & scanning
3. 0-9 SQL grade setting
4. Frequency/Channel scanning
5. High/Mid/Low power selectable
6. Voice compander
7. Repeater offset shift
8. Keypad lock function
9. Contact book
10. Battery voltage display
11. DTMF/2 tone/5 tone
12. ANI ID
13. Remote kill/ stun/ activate/ revive
14. Emergenvy alarm
15. Wide/Narrow band setting
16. TX inhibit
17. Busy Channel Lock-Out
18. Channel name editing
19. Reverse frequency
20. Talk around
21. Scrambler(Optional)
22. Voice prompt
23. Time-out Timer
24. Auto Power off
25.VFO step setting:5/6.25/10/12.5/20/25/50kHz
Specifications:
General:
Frequenvy Range: 136-174/245-246/400-490MHz
Channel Capacity: 200
Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability: 2.5ppm
Operating Temperature: -20°C ~ + 60°C
Operating Voltage: 13.8V DC ± 15%
Dimension(HxWxD): 145mm x190mm x47mm
Weight(with bracket): 1200g
Receiver:
Reference Sensitivity: 0.25V / 0.35V
Operating Bandwidth: 60dB 12.5KHz /70dB 25KHz
Adjacent Channel Selectivity: 60dB 12.5KHz 70dB 25KHz
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Response Rejection: ≥70dB
Rated Audio Response: +1-+3dB
Rated Audio Distortion: <5%
FM Hum&Noise: ≥40dB 25KHz /≥45KHz 12.5KHz
Transmitter:
RF Power: 45W/25W/10W(UHF)/60W/25W/10W(VHF)
Frequency Modulation: 11kΦF3E / 16kΦF3E
Modulation Distortion: <5%
FM Noise: ≥36dB 25KHz /≥40KHz 12.5KHz
Adjacent Channel Power: ≥60dB 12.5KHz /≥70KHz 25KHz
Audio Response: +1-+3dB
Audio Distortion: <5%
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
