Product Specifications
| Prod Model: |
TC-8W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
8W Handheld Two Way Radio |
| Brand Name: |
Hys |
| Model: |
Tc-8W |
| Color: |
Black |
| Frequency Range: |
400-470MHz |
| Memory Channels: |
16 |
| Operating Voltage: |
DC7.4V |
| Channel Spacing: |
12.5/25kHz |
| Battery Capacity: |
3000mAh(Lithum Polymer Battery) |
| Output Power: |
8W (High),3W(Low) |
| Wavelength And Frequency: |
Long-wave |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
Without Screen |
| Style: |
. |
Product Description

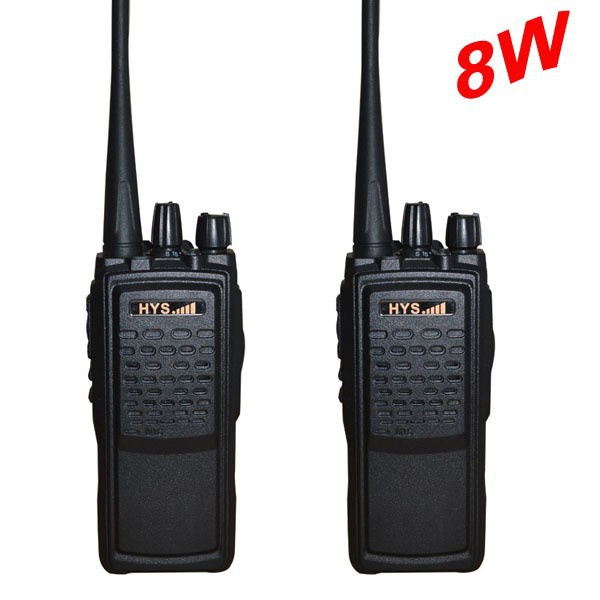

TC-8W Good performance CTCSS DCS 8W Single band VHF or UHF Handheld two way radio
Product Description:
Main feature:
1. Busy Channel Lock
2. Battery Save
3. Monitor
4. Flashlight
5. CTCSS,DCS
6. TOT
7. Low Power Remind
8. Voice Prompt
9. 3000mAh High Capacity Lithium Polymer Battery Pack
Specifications:
General:
Frequency Range: 400-470MHZ
Frequency combination: Phase lock loop frequency synthesize
Memory Channels: 16 Channels
Operating Voltage: DC7.4V
Channel Spacing: 12.5/25KHz
Battery Capacity: 3000MAH(Lithum Polymer battery)
Frequency Stability: ±2.5PPM
CTCSS/DSC: CTCSS:50 DCS:105 Selectable
Antenna Impedance: 50Ω
Operating Temperature: -10ºC to +60ºC
Weight(approx.): 268g(Except battery and antenna )
Dimension(approx.): 136×56×40mm (Except Antenna)
Transmitter:
Output Power: 8W (High),3W(Low)
Modulation Mode: 16K¢F3E
MAX. Frequency Deviation: ≤±5.0KHz
Frequency Stability: ±5ppm
Spurious Radiation: ≤60dB
Residual Modulation: ≤-35dB
Modulation Distortion: ≤5%(300-3000Hz)
FM Noise: ≤-40dB
Audio Distortion: ≤5%
CTCSS Frequency Deviation: 0.75KHz±50Hz
Receiver:
Sensitivity: ≤0.20uV
Operating Bandwidth: ≥±7KHz
Squelch Sensitivity: ≤0.15uV
Frequency Stability: ±5ppm
Adjacent channel selectivity: ≥60dB
Spurious Rejection: ≥60dB
Intermodulation Rejection: ≥60dB
FM Noise: ≤-45dB
Audio Power: ≥600mW
Audio Distortion: <5%
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
