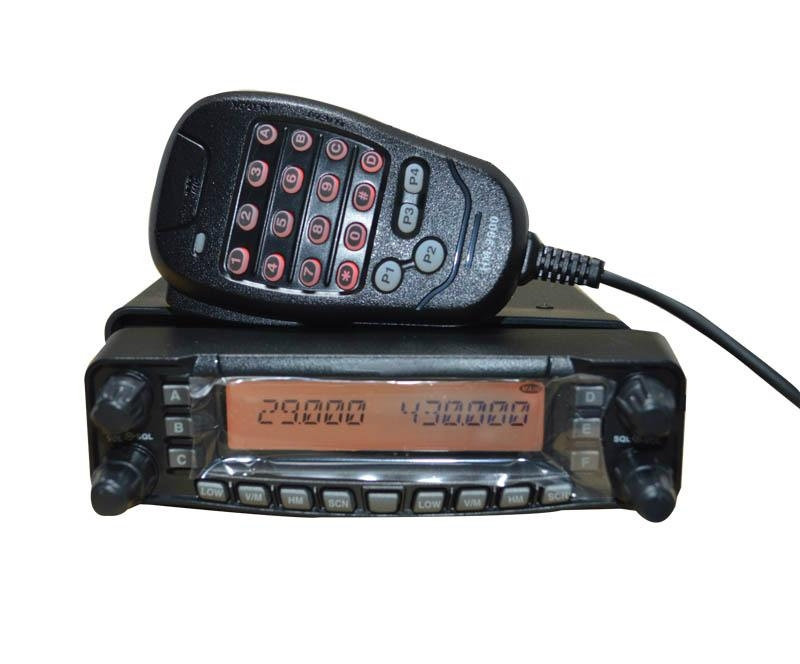

Tc-9900 Dtmf Function 50 W Quad Band Mobile Radio
Product Specifications
| Prod Model: |
TC-9900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
Rx:28.000-29.700MHz 50.000-54.000MHz 108.800-180. |
| RF Power: |
50/20/10/5W(29/50/144MHz) 35/20/10/5W(430MHz) |
| Operating Modes: |
F3, F2, F1 |
| Frequency Step: |
5/10/12.5/15/20/25/50kHz |
| Power Supply: |
13.8V |
| Frequency Stability: |
±2.5ppm |
| Dimensions(W×h×d): |
140*41.5*168mm |
| Weight: |
1070g |
| Work Mode: |
U&V,U&U,V&V,V&U |
| Application: |
Military |
| Certification: |
CE |
| Style: |
Sky Wave |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description
Main Features of Quad Bands transceiver TC-9900
1. Quad Bands Operation
2. Over 800 Memory Channels
3. CTCSS/DCS Built-in; DTMF Function
4. Convenient Access To WIRES and Other Internet-linking Systems
5. Cross-band Repeat Capability
6. Work Mode: U&V,U&U,V&V,V&U
Technical Specifications General
| | Frequency Range | RX:28.000-29.700MHz 50.000-54.000MHz
108.800-180.000MHz (108.800-136.995MHz FM)
320.000-480.000MHz 700-985MHz(Cellular Blocked) | TX:28.000-29.700MHz 50.000-54.000MHz
144.000-148.000MHz 430.000-450.000MHz | | RF Power | 50/20/10/5W(29/50/144MHz) 35/20/10/5W(430MHz) | | Operating Modes | F3, F2, F1 | | Frequency Step | 5/10/12.5/15/20/25/50kHz | | Power Supply | 13.8V(±15%) | | Frequency Stability | ±2.5PPM | | Operating Temperature Range | -20°C~+60°C | | Antenna Impedance | 50Ω | | Dimensions(W×H×D) | 140×41.5×168mm | | Weight | 1070g | Transmitter
| | Power Output | 50/20/10/5W(29/50/144Mhz) | | 35/20/10/5W(430Mhz) | | Maximum modulation frequency deviation | ±5khz(wide band) | | ±2.5khz(narrow band) | | out-of-band radiation | ≤ -69dB(29Mhz≤-50dB) | | Modulation Distortion | <3% | | Microphone Impedance | 2KΩ | Receiver
| | Sensitivity | ≤0.2µV(12dB SINAD) | | Circuit type | Second type difference frequency outside | | IF-FRE | 45.05Mhz/450Khz(left) | | 47.25Mhz/450Khz(right) | | selectivity | 12Khz/30Khz | | The biggest audio output | 2W(8Ω) | | audio output Impedance | 4-16Ω |
|
|
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
