Product Specifications
| Prod Model: |
TC-A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Two Way Radio |
| Brand Name: |
Hys |
| Model: |
Tc-A1 |
| Memory Channels: |
16 Channels |
| Channel Spacing: |
12.5/25kHz (Narrow/Wide) |
| Frequency Stability: |
±2.5ppm |
| Weight(Approx.): |
123G(Except Battery and Antenna) |
| Frequency Combination: |
Phase Lock Loop Frequency Synthesize |
| Operating Voltage: |
DC7.4V |
| Color: |
Black |
| Application: |
Military |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
Without Screen |
Product Description

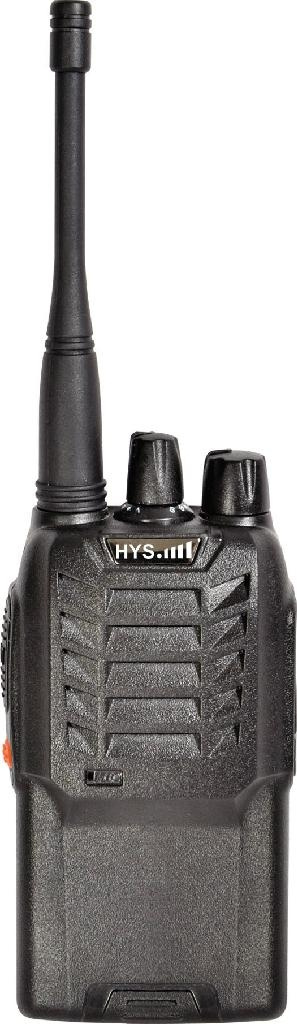

TC-A1 Professional VHF or UHF Handheld Two Way Radio
Product Description:
Main Functions:
1. Voice guide
2. High battery capacity
3. TOT
4. Monitor
5. Battery save
6. Low battery warning
7. PC programming
8. Strong signal
Specifications;
General Specification:
Frequency Range: VHF: 136-174MHZ
UHF: 400-470MHZ
Frequency combination: Phase lock loop frequency synthesize
Memory Channels: 16 Channels
Operating Voltage: DC7.4V
Channel Spacing: 12.5/25KHz (narrow/wide)
Battery Capacity: 1200MAH(Li-ion battery)
Frequency Stability: ± 2.5PPM
CTCSS/DSC: CTCSS: 50 DCS: 105
Antenna Impedance: 50Ω
Operating Temperature: -20º C to +60º C
Weight(approx. ): 123g(Except battery and antenna)
Dimension(approx. ): 115*55*33mm(Except Antenna)
Transmitter(Testing under TIA/EIA-603 standard):
Output Power: ≤ 3W
Modulation Mode : 16K¢ F3E
MAX. Frequency Deviation: ≤ ± 5.0KHz
Frequency Stability: ± 5ppm
Spurious Radiation: ≤ 60dB
Residual Modulation: ≤ -35dB
Modulation Distortion: ≤ 5%(300-3000Hz)
FM Noise: ≤ -40dB
Audio Distortion: ≤ 5%
CTCSS Frequency Deviation: 0.75KHz± 50Hz
Receiver(Testing under TIA/EIA-603 standard)
Sensitivity: ≤ 0.20uV
Operating Bandwidth: ≥ ± 7KHz
Squelch Sensitivity: ≤ 0.15uV
Frequency Stability: ± 5ppm
Adjacent channel selectivity: ≥ 60dB
Spurious Rejection: ≥ 60dB
Intermodulation Rejection: ≥ 60dB
FM Noise: ≤ -45dB
Audio Power: ≥ 600mW
Audio Distortion: <5%
| TC-A1 |
| General Specification |
| Frequency Range | VHF:136-174MHZ
UHF:400-470MHZ | Frequency combination | Phase lock loop frequency synthesize |
| Memory Channels | 16 Channels | Operating Voltage | DC7.4V |
| Channel Spacing | 12.5/25KHz (narrow/wide) | Battery Capacity | 1200MAH(Li-ion battery) |
| Frequency Stability | ±2.5PPM | CTCSS/DSC | CTCSS:50 DCS:105 |
| Antenna Impedance | 50Ω | Operating Temperature | -20 deg to +60 deg |
| Weight(approx.) | 123g(Except battery and antenna) | Dimension(approx.) | 115*55*33mm(Except Antenna) |
| Transmitter ( Testing under TIA/EIA-603 standard ) |
| Output Power | ≤ 3W | Modulation Mode | 16K F3E |
| MAX. Frequency Deviation | ≤±5.0KHz | Frequency Stability | ±5ppm |
| Spurious Radiation | ≤60dB | Residual Modulation | ≤-35dB |
| Modulation Distortion | ≤5%(300-3000Hz) | FM Noise | ≤-40dB |
| Audio Distortion | ≤5% | CTCSS Frequency Deviation | 0.75KHz±50Hz |
| Receiver ( Testing under TIA/EIA-603 standard ) |
| Sensitivity | ≤0.20uV | Operating Bandwidth | ≥±7KHz |
| Squelch Sensitivity | ≤0.15uV | Frequency Stability | ±5ppm |
| Adjacent channel selectivity | ≥60dB | Spurious Rejection | ≥60dB |
| Intermodulation Rejection | ≥60dB | FM Noise | ≤-45dB |
| Audio Power | ≥600mW | Audio Distortion | < 5% |
| Meet U.S.A Military Standards ( MIL-STD-810C/D/E ) |
