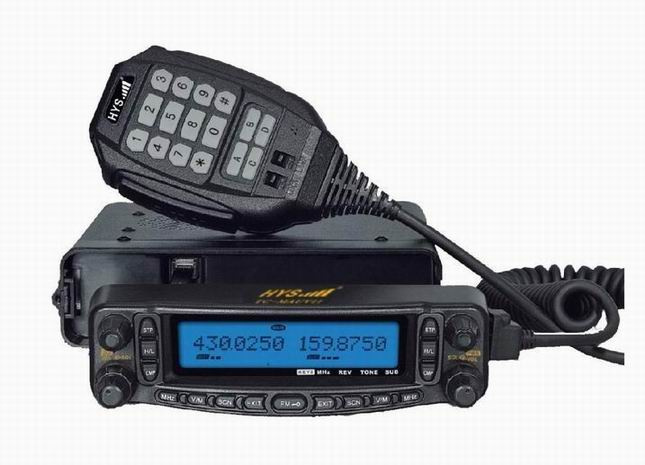

TC-MAUV11 High quality Cross-band 128 Channels Dual band VHF&UHF Mobile radio
Product Description:
Main feature:
1. VHF/UHF dual reception
2. DTMF encode/decode(8 groups selectable)
3. 7 kinds of backlight selectable
4. Scrambler
5. FM radio built-in
6. 4 kinds of burst tone selectable (1000Hz/1450Hz/1750Hz/2100Hz)
7. Large LCD display
8. 50 Groups CTCSS&105 Groups DCS Encode/Decode
Highlights :
1. Front panel switches & controls2.Compandor
3. Cross band repeater capability
4. Input frequency directly through MIC
5. Air - band receiving
Specifications:
General:
Frequency range:Operate Frequency: 136-174MHz
Standard Frequncy: 144-148MHz)
Operate Frequency: 400-470MHz
Standard Frequncy: 430-450MHz
Air band(RX): AM109-135.995MHz
Memory channels: 128
Bandwidth: Wide:25KHz, Narrow: 12.5KHz
PLL channel stepping: 5/6.25/10/12.5/25 KHz
Operating voltage: 13.8VDC±15%
Current drain: Standby: Less than0.4A, Transmit: Less than 8.0A
Operate temperature range: -20°C-+60°C
Weight: 1200g
Dimensions: 168*41.5*140mm
Transmiter:
RF output power: VHF 40W/20W(144MHz), UHF 35W/20W(440MHz)
Spurious and harmonics: 70dB
Modulation: Wide:16K0F3E, Narrow: 11K0F3E
FM Modulation Noise: Wide:45dB, Narrow: 40dB
Audio distortion: Less than 3%
Frequency Stability: ±2.5ppm
Receiver:
Sensitivity(12dB SINAD): Wide:0.18uV, Narrow:0.22 uV
Selectivity: Wide:70 dB, Narrow:60dB
Intermodulation: Wide:70 dB, Narrow:60dB
Spurious response: 75dB
Audio power output: 2.0W/8Ω
Frequency Stability: ±2.5ppm
