Tc-Mauv11 Manufacturer Scrambler Function VHF+UHF Dual Band Mobile Vehicle Radio
Product Specifications
| Prod Model: |
TC-MAUV11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory Channels: |
128 |
| Bandwidth: |
Wide:25kHz Narrow: 12.5kHz |
| Pll Channel Stepping: |
5/6.25/10/12.5/25 kHz |
| Operating Voltage: |
13.8VDC±15% |
| Current Drain: |
Standby: Less Than0.4A Transmit: Less Than 8.0A |
| Weight: |
1200g |
| Dimensions: |
168*41.5*140mm |
| Spurious And Harmonics: |
70db |
| FM Modulation Noise: |
Wide:45db Narrow: 40db |
| Audio Distortion: |
Less Than 3% |
| Application: |
Industrial |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description
Tc-Mauv11 Manufacturer Scrambler Function VHF+UHF Dual Band Mobile Vehicle RadioProduct Description:Main featurers:1. VHF/UHF dual reception
2. DTMF encode/decode(8 groups selectable)
3.7 kinds of backlight selectable
4. Scrambler
5. FM radio built-in
6.4 kinds of burst tone selectable (1000Hz/1450Hz/1750Hz/2100Hz)
7. Large LCD display
8.50 Groups CTCSS&105 Groups DCS Encode/Decode
Highlights:
1. Front panel switches & controls2. Compandor
3. Cross band repeater capability
4. Input frequency directly through MIC
5. Air - band receivingSpecifications:General:
Frequency range: Operate Frequency:136-174MHz
Standard Frequncy:144-148MHz
Operate Frequency:400-470MHz
Standard Frequncy:430-450MHz
Air band(RX): AM109-135.995MHz
Memory channels: 128
Bandwidth: Wide: 25KHz, Narrow: 12.5KHz
PLL channel stepping: 5/6.25/10/12.5/25 KHz
Operating voltage: 13.8VDC± 15%
Current drain: Standby: Less than0.4A, Transmit: Less than 8.0A
Operate temperature range: -20° C-+60° C
Weight: 1200g
Dimensions: 168*41.5*140mm
Transmiter:
RF output power: VHF 40W/20W(144MHz), UHF 35W/20W(440MHz)
Spurious and harmonics: 70dB
Modulation: Wide: 16K0F3E, Narrow: 11K0F3E
FM Modulation Noise: Wide: 45dB Narrow: 40dB
Audio distortion: Less than 3%
Frequency Stability: ± 2.5ppm
Receiver:
Sensitivity(12dB SINAD): Wide: 0.18uV Narrow: 0.22 uV
Selectivity: Wide: 70 dB Narrow: 60dB
Intermodulation: Wide: 70 dB Narrow: 60dB
Spurious response: 75dB
Audio power output: 2.0W/8Ω

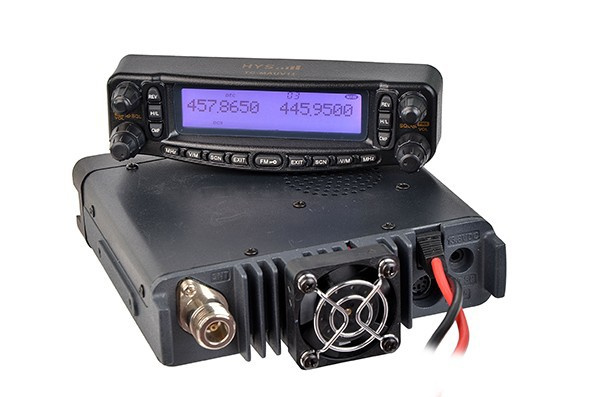

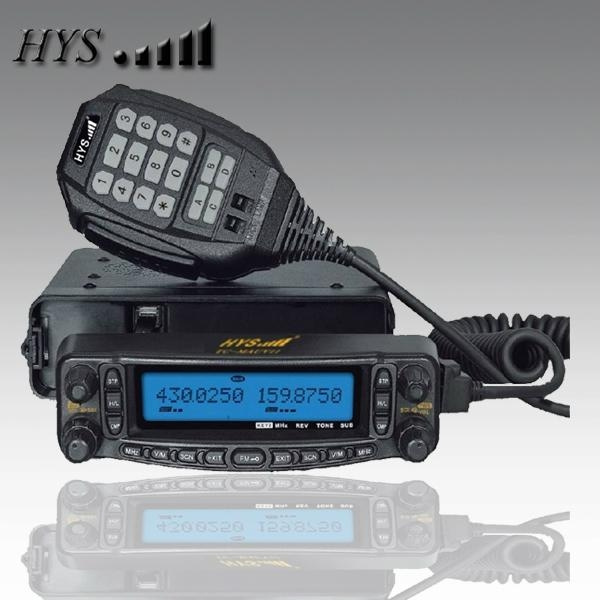

Frequency Stability: ± 2.5ppmProduct Pictures:
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
