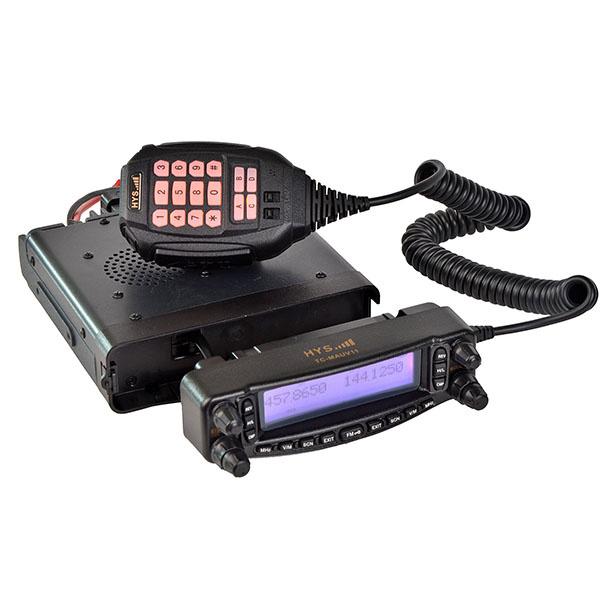

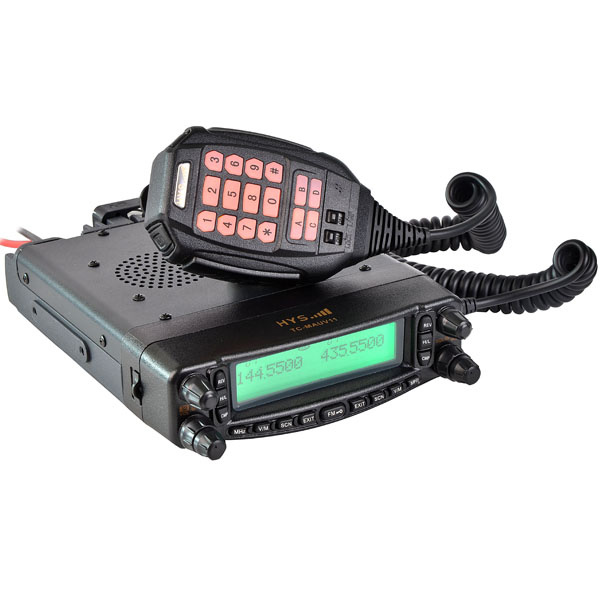

Dual band mobile transceiver
Main featurers:
1.VHF/UHF dual reception
2.DTMF encode/decode(8 groups selectable)
3.7 kinds of backlight selectable
4.Scrambler
5.FM radio built-in
6. 4 kinds of burst tone selectable (1000Hz/1450Hz/1750Hz/2100Hz)
7.Large LCD display
8.50 Groups CTCSS&105 Groups DCS Encode/Decode
Highlights :
1.Front panel switches & controls2.Compandor
3.Cross band repeater capability
4.Input frequency directly through MIC
5.Air - band receiving
1200/9600 bps this dat only for B type
General | |
Frequency range |
Operate Frequency: 136-174MHz Standard Frequncy: 144-148MHz) Operate Frequency: 400-470MHz Standard Frequncy: 430-450MHz Air band(RX): AM109-135.995MHz |
Memory channels | 128 |
Bandwidth |
Wide: 25KHz Narrow: 12.5KHz |
PLL channel stepping | 5/6.25/10/12.5/25 KHz |
Operating voltage | 13.8VDC± 15% |
Current drain |
Standby: Less than0.4A Transmit: Less than 8.0A |
Operate temperature range | – 20° C-+60° C |
Weight | 1200g |
Dimensions | 168*41.5*140mm |
Transmiter | |
RF output power |
VHF 40W/20W(144MHz) UHF 35W/20W(440MHz) |
Spurious and harmonics | 70dB |
Modulation |
Wide: 16K0F3E Narrow: 11K0F3E |
FM Modulation Noise | Wide: 45dB Narrow: 40dB |
Audio distortion | Less than 3% |
Frequency Stability | ± 2.5ppm |
Receiver | |
Sensitivity(12dB SINAD) | Wide: 0.18uV Narrow: 0.22 uV |
Selectivity | Wide: 70 dB Narrow: 60dB |
Intermodulation | Wide: 70 dB Narrow: 60dB |
Spurious response | 75dB |
Audio power output | 2.0W/8Ω |
Frequency Stability |
± 2.5ppm |
Prod Model: | TC-MAUV11 dual band |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency Range: | VHF:136-174MHz UHF: 400-470MHz |
Output Power: | VHF 40W/20W(144MHz) UHF 35W/20W(440MHz) |
Memory Channels: | 128 |
Bandwidth: | 25kHz (Width)/12.5kHz(Narrow) |
Ctcss/Dcs: | 50 Groups Ctcss&105 Groups Dcs Encode/Decode |
Frequency/Channel Scanning: | Yes |
Vfo Step Setting: | 5/6.25/10/12.5/20/25/50kHz |
Dual Reception: | Yes |
Dtmf Function: | Yes |
PC Programming: | Yes |
Standard: | Standard |
Condition: | New |
Screen: | With Screen |
Application: | Military |
Wavelength And Frequency: | Short-wave |
Style: | Sky Wave |
