Product Specifications
| Prod Model: |
TC-MAUV33 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Dual Band Mobile Radio |
| Brand Name: |
Hys |
| Model: |
Tc-Mauv33 |
| Color: |
Black |
| Type: |
Vehicle Type Radio |
| Frequency Range: |
136.000-174.000 MHz & 400.000-470.000 MHz |
| Channel Spacing: |
5/10/12.5/15/20/25/50/100 kHz |
| Operating Voltage: |
DC13.8V±15% |
| RF Power: |
VHF:50/20/10/5W; UHF:45/20/10/5W |
| Channel Capacity: |
1105 |
| Wavelength And Frequency: |
Long-wave |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
| Style: |
. |
Product Description

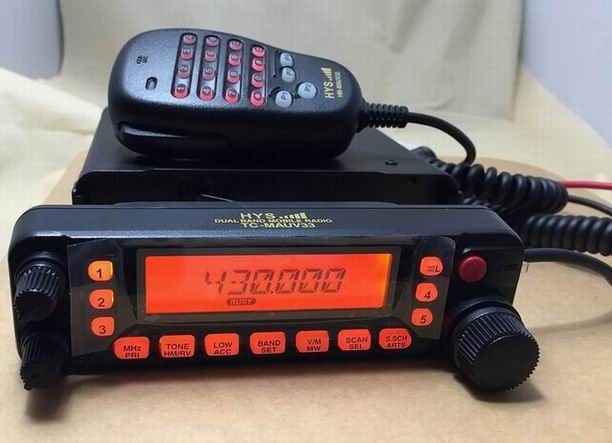

TC-MAUV33 Hot selling Large Screen Display Dual band VHF&UHF Mobile two way radio
Product Description:
Main feature:
1. Dual Band TX, Five Band RX, AM+FM RX
2. VFO/Channel/Priority/Programmable Scan
3. Dual Band Watch
4. Smart Search Function
5. Support Multi-scan Modes
6. Split Type Panel
7. Large Screen Display
8. Internet Connecting
9. Communication Range Auto Alert
10. MIC Auto Gain Control
11. Automatic Repeater Shift
12. Support DTMF/1750Hz Encode
13. Weather Broadcast Channel Alert
Specifications:
Frequency Range: RX: 108.000-520.000 MHz & 700.000-999.990 MHz;
TX: 136.000-174.000 MHz & 400.000-470.000 MHz
Channel Capacity: 1105
Channel Spacing: 5/10/12.5/15/20/25/50/100 KHz
Operating Voltage: DC13.8V±15%
Operating Temperature: -20ºC~ +60ºC
RF Power: VHF:50/20/10/5W; UHF:45/20/10/5W
Frequency Modulation: F3E, F2D, F2A
Maximum Deviation: ±5KHz (Wide Band), ±2.5KHz (Narrow Band)
Maximum AF Output: 2W (8Ω, 10% THD)
Dimensions: 168*140*42mm
Weight: 1kg
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
