Tc-Mauv33 Hys Newest Black Dual Band VHF + UHF Mobile FM Transceiver Radio
Product Specifications
| Prod Model: |
TC-MAUV33 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
VHF UHF Dual Band Waterproof Mobile Radio |
| Brand Name: |
Hys |
| Model: |
Tc-Mauv33 |
| Color: |
Black |
| Frequency Range: |
Rx: 108.000-520.000 MHz & 700.000-999.990 MHz; Tx |
| Channel Capacity: |
1105 |
| Working Voltage: |
13.8V |
| Battery Capacity: |
3000mAh Polumer Lithium Battery |
| Size: |
140mm × 42mm × 168mm |
| Weight: |
1kg |
| Wavelength And Frequency: |
Long-wave |
| Application: |
Industrial |
| Certification: |
CE |
| Style: |
Ground Wave |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description
TC-MAUV33 HYS Newest Black Dual Band VHF + UHF Mobile FM Transceiver radio Product Description:Main feature:1. Dual Band TX, Five Band RX, AM+FM RX
2. VFO/Channel/Priority/Programmable Scan
3. Dual Band Watch
4. Smart Search Function
5. Support Multi-scan Modes
6. Split Type Panel
7. Large Screen Display
8. Internet Connecting
9. Communication Range Auto Alert
10. MIC Auto Gain Control
11. Automatic Repeater Shift
12. Support DTMF/1750Hz Encode
13. Weather Broadcast Channel AlertSpecifications:General Specification |
Frequency Range | RX: 108.000-520.000 MHz & 700.000-999.990 MHz; TX: 136.000-174.000 MHz & 400.000-470.000 MHz |
Channel Capacity | 1105 |
Channel Spacing | 5/10/12.5/15/20/25/50/100 KHz |
Operating Voltage | DC13.8V±15% |
Operating Temperature | -20ºC~ +60ºC |
RF Power | VHF:50/20/10/5W; UHF:45/20/10/5W |
Frequency Modulation | F3E, F2D, F2A |
Maximum Deviation | ±5KHz (Wide Band), ±2.5KHz (Narrow Band) |
Sensitivity | 0.8uV (10dB SINAD, 108-137 MHz) 0.2uV (12dB SINAD, 136-174 MHz & 400-470 MHz) |
Maximum AF Output | 2W (8Ω, 10% THD) |
Dimensions(W×H×D) | 140mm × 42mm × 168mm |
Weight | 1kg |
Note: If you need the Programming Cable, pls contact with us.

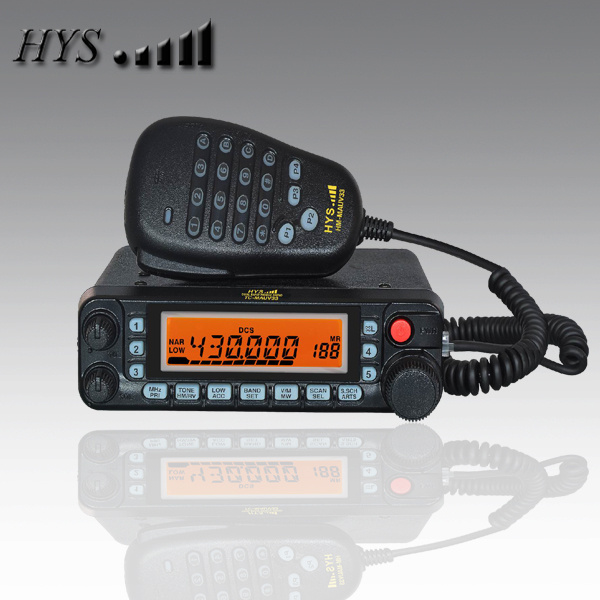

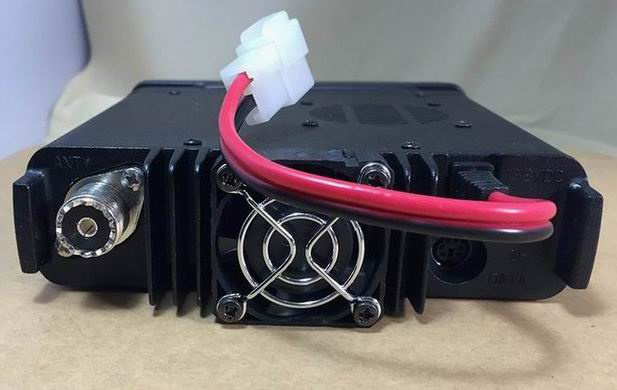

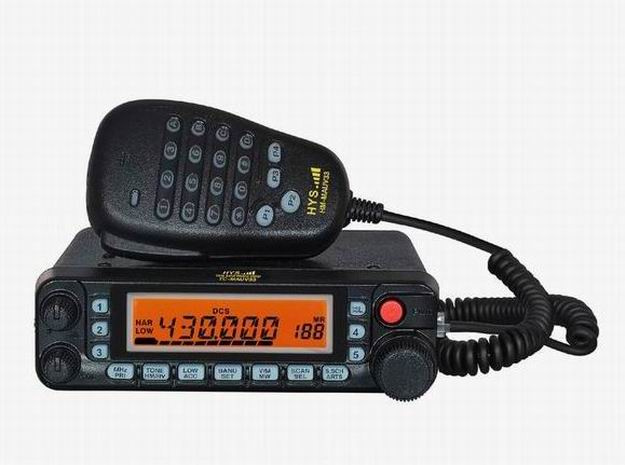

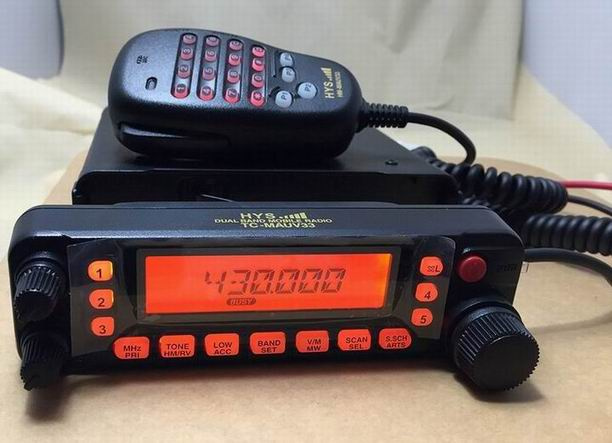

Product Pictures:
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
