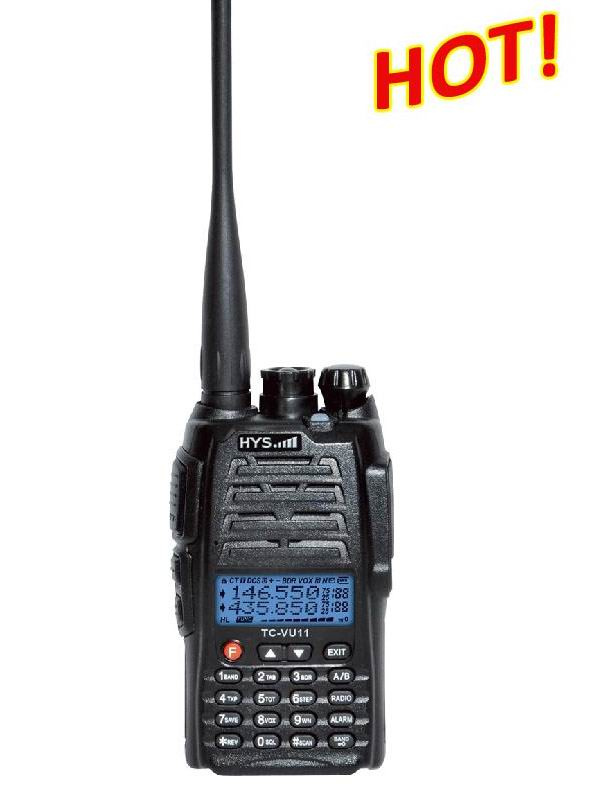

Tc-Vu11cc High Quality Camouflage Color VHF&UHF Dual Band Handheld Two Way Radio
Product Specifications
| Prod Model: |
TC-VU11CC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory Channels: |
128 |
| Voltage: |
7.5V |
| Operating Temperature: |
-30deg_+60deg |
| Battery Capacity: |
1600mAh (Li-ion) |
| Frequency Stability: |
±2.5ppm |
| Net Weight: |
About 246g |
| Dimensions: |
58X105X38mm(Without Antenna) |
| RF Output Power: |
High:4W ,Low:1W |
| Audio Modulation Characteristic: |
(300-3000Hz),+1db_ -3db |
| Channel Space: |
25kHz |
| Wavelength And Frequency: |
Long-wave |
| Application: |
Military |
| Certification: |
CE |
| Condition: |
New |
| Standard: |
Standard |
| Screen: |
With Screen |
Product Description
TC-VU11CC High Quality Camouflage Color VHF&UHF Dual Band Handheld Two Way Radio Product Description:Main Functions:1. Frequency Range: 136-174MHz, 350-390MHz, 400-470MHz, 480-520MHz
2. Working Mode: U&V, U&U, V&V, V&U
3. Dual frequency display(Caller ID)
4. Dual frequency standby in any band
5. Receiving and transmitting inter-band
6. DTMF Signaling System
7. Digital FM Radio
8.50 Groups CTCSS and 105 Groups DCS
9. ANI Code Display
10. All calls, group calls and selective calls
11. Alarm(Distant Urgency Alarm and Alarm at local)
12. Non-standard CTCSS(Can be edited arbitrary between 60Hz and 259.9 Hz)
13. TOT
14. High/Low Power shift
15. CTCSS or DCS can be set respectively
16. Channel Step(5K, 6.25K, 10K, 12.5K, 25K)
17. VOX function
18. Battery Save Function
19. Wide and Narrow band Selectable (N: 12.5KHz/W: 25KHz)
20. Busy Channel lockout
21. Low Voltage Alarm with Sound and Light
22. Auto Backlight
23. Auto/Manual Keyboard Lock
24. Three Display Color selectable both in transmitting, receiving and standby
25. Frequency, Channel order and Channel name multi-display mode
26. Calling Ring Function
27. DTMF
28. PTT-ID Function
29. Mute mode (CTCSS/DCS, CTCSS/DCS and Optional Signal, CTCSS/DCS plus Optional Signal)
30. Offset Frequency( can be set between 0 and 69.9875 MHz in Frequency Mode)
31. Operating MENU directly through Keypad
32. Frequency, Channel and MENU Fast Search Function
33. Channel Parameter can be saved in the Frequency Mode
34.128 Channels
35. Reverse Frequency Function
36. U/V Receiving and Transmitting Inter-Band can be Connected with Repeater
37. Wired Cloning Function
38. PC Programmable
Specifications:
General Specifications:
Frequency Range: FM: 87-108MHZ(Receiving)
VHF: 136-174.995MHZ(Receiving &Transmitting)
UHF0: 350-390.995MHZ(Receiving)
UHF1: 400-479.995MHZ(Receiving &Transmitting)
UHF2: 480-520.955MHZ(Receiving)
Working Mode: Same frequency simplex or Double frequency simplex
Memory Channels: 128
Antenna Impedance: 50Ω
Voltage: 7.5V
Frequency Stability: ± 2.5ppm
Operating Temperature: -30º C- +60º C
Net Weight: About 246g
Battery capacity: 1600mAh (Li-ion)
Dimensions: 58X105X38MM(without antenna)
Transmitter (Measurements made per TIA/EIA-603):
RF Output Power: High: 4W, Low: 1W
Audio Modulation: Characteristic(300-3000Hz), +1dB- -3dB
Modulation Mode: 16Kφ F3E/11Kφ F3E
Adjacent Channel Power: ≥ 65dB
Spurious Radiation: <7μ W
Modulation Distortion: ≤ 5%
Max Offset frequency: Channel space 25KHz± 5KHz/12.5KHz± 2.5KHz
Channel Space: 25KHz
Receiver (Measurements made per TIA/EIA-603):
Sensitivity: (12dBSINAD) 0.18μ V
Co-channel Rejection: ≥ -0.8dB
Noise Quieting Sensitivity: ≤ 0.8μ V
Limited radio features: ≤ 3
Squelch Sensitivity: ≤ 0.2μ V
Adjacent Channel Selectivity: ≥ 55dB
Audio Output Power: 500mW
Inter modulation characteristics: ≥ 65dB
Audio Distortion: ≤ 5%
Blocking characteristics: ≥ 84dB
Audio Response: (300-3000Hz)+1dB- -3dB
Spurious Radiation: 9KHz-1GHz≤ -57dBm
Channel Space25KHz: ≥ 70dB/12.5KHz≥ 60dB| General Specifications |
| Frequency Range | FM:87-108MHZ(Receiving)
VHF:136-174.995MHZ(Receiving &Transmitting)
UHF0:350-390.995MHZ(Receiving)
UHF1:400-479.995MHZ(Receiving &Transmitting)
UHF2:480-520.955MHZ(Receiving) | Working Mode | Same frequency simplex or Double frequency simplex |
| Memory Channels | 128 | Antenna Impedance | 50Ω |
| Voltage | 7.5V | Frequency Stability | ±2.5ppm |
| Operating Temperature | -30deg_+60deg | Net Weight | About 246g |
| Battery capacity | 1600mAh (Li-ion) | Dimensions | 58X105X38MM(without antenna) |
| Transmitter (Measurements made per TIA/EIA-603) |
| RF Output Power | High:4W ,Low:1W | Audio Modulation Characteristic | (300-3000Hz),+1dB_ -3dB |
| Modulation Mode | 16KφF3E/11KφF3E | Adjacent Channel Power | ≥65dB |
| Spurious Radiation | <7μW | Modulation Distortion | ≤5% |
| Max Offset frequency | Channel space 25KHz±5KHz/12.5KHz±2.5KHz | Channel Space | 25KHz |
| Receiver (Measurements made per TIA/EIA-603) |
| Sensitivity | (12dBSINAD) 0.18μV | Co-channel Rejection | ≥-0.8dB |
| Noise Quieting Sensitivity | ≤0.8μV | Limited radio features | ≤3 |
| Squelch Sensitivity | ≤0.2μV | Adjacent Channel Selectivity | ≥55dB |
| Audio Output Power | 500mW | Inter modulation characteristics | ≥65dB |
| Audio Distortion | ≤5% | Blocking characteristics | ≥84dB |
| Audio Response | (300-3000Hz)+1dB_-3dB | Spurious Radiation | 9KHz-1GHz≤-57dBm |
| Channel Space | 25KHz≥70dB/12.5KHz≥60dB |

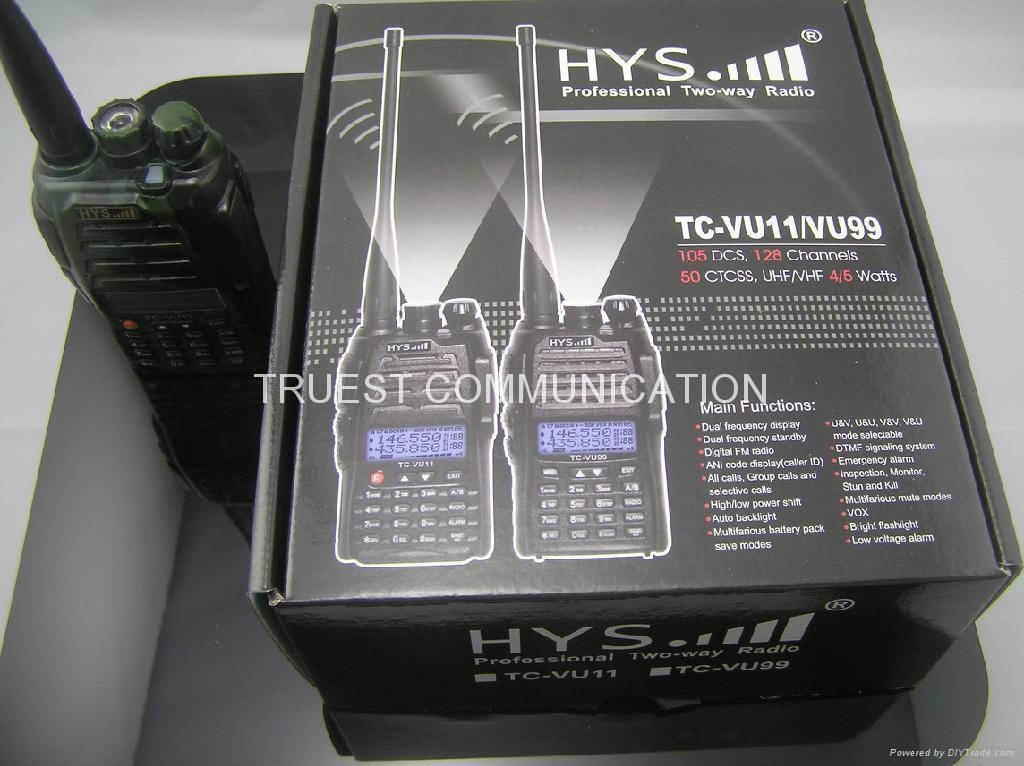

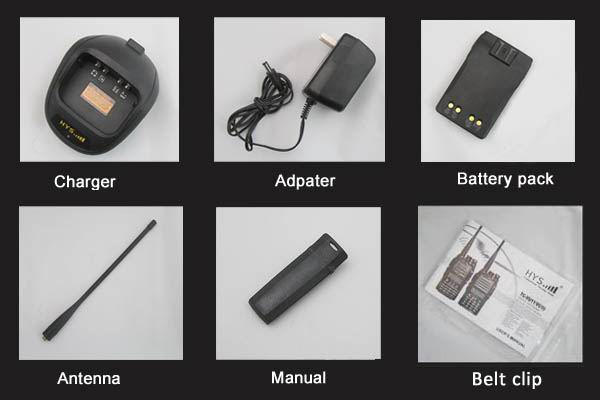

Product Pictures:
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
