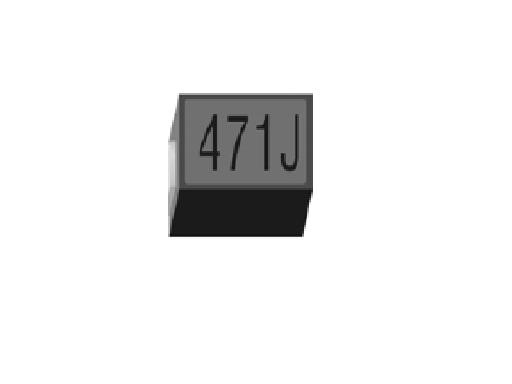

TDK NLV32T-R10J-PF Wire Wound Chip Ferrite Inductor

*Size Range: 3225
*Inductance Range: 0.1 UH
*Precision: +/-5%
*RoHS

FEATURES
The product has good heat durability that withstands lead-free compatible reflow soldering conditions.
Lead-free material is used for the plating on the terminal
The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series.
The product uses metal terminals, which realize excellent connection reliability.
Highly heat resistant thermoplastic resin is used to form the exterior package.
From 0.01μ H to 100μ H, all of the products in the E-12 series are J(± 5%) tolerance products.
This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available.

APPLICATIONS
Audio-visual equipment including TVs, VCRs and digital cameras.
Electronic equipment used in communication infrastructures
Including xDSL and mobile base stations.
Electronic equipment used in onboard automobile equipment
Including car audio and ECU systems.
Other electronic equipment including HDDs and ODDs.

SPECIFICATIONS
Operating temperature range: -40 to +105 C
Storage temperature range: -40 to +105 C

Inductance(μ H)	Inductance tolerance	Q min.	Test frequency L, Q (MHz)	Self-resonant frequency (MHz)min.	DC resistance (Ω )max.	Rated current∗ 1 (mA)max.	Part No.
0.01	± 5%	15	100	2500	0.13	450	NLV32T-010J-PF
0.012	± 5%	17	100	2300	0.14	450	NLV32T-012J-PF
0.015	± 5%	19	100	2100	0.16	450	NLV32T-015J-
0.018	± 5%	21	100	1900	0.18	450	NLV32T-018J-
0.022	± 5%	23	100	1700	0.2	450	NLV32T-022J-
0.027	± 5%	23	100	1500	0.22	450	NLV32T-027J-
0.033	± 5%	25	100	1400	0.24	450	NLV32T-033J-
0.039	± 5%	25	100	1300	0.27	450	NLV32T-039J-
0.047	± 5%	26	100	1200	0.3	450	NLV32T-047J-
0.056	± 5%	26	100	1100	0.33	450	NLV32T-056J-
0.068	± 5%	27	100	1000	0.36	450	NLV32T-068J-
0.082	± 5%	27	100	900	0.4	450	NLV32T-082J-
0.1	± 5%	28	100	700	0.44	450	NLV32T-R10J-
0.12	± 5%	30	25.2	500	0.22	450	NLV32T-R12J-
0.15	± 5%	30	25.2	450	0.25	450	NLV32T-R15J-
0.18	± 5%	30	25.2	400	0.28	450	NLV32T-R18J-
0.22	± 5%	30	25.2	350	0.32	450	NLV32T-R22J-
0.27	± 5%	30	25.2	320	0.36	450	NLV32T-R27J-
0.33	± 5%	30	25.2	300	0.4	450	NLV32T-R33J-
0.39	± 5%	30	25.2	250	0.45	450	NLV32T-R39J-
0.47	± 5%	30	25.2	220	0.5	450	NLV32T-R47J-
0.56	± 5%	30	25.2	180	0.55	450	NLV32T-R56J-
0.68	± 5%	30	25.2	160	0.6	450	NLV32T-R68J-
0.82	± 5%	30	25.2	140	0.65	450	NLV32T-R82J-
1	± 5%	30	7.96	120	0.7	400	NLV32T-1R0J-
1.2	± 5%	30	7.96	100	0.75	390	NLV32T-1R2J-
1.5	± 5%	30	7.96	85	0.85	370	NLV32T-1R5J-
1.8	± 5%	30	7.96	80	0.9	350	NLV32T-1R8J-
2.2	± 5%	30	7.96	75	1	320	NLV32T-2R2J-
2.7	± 5%	30	7.96	70	1.1	290	NLV32T-2R7J-
3.3	± 5%	30	7.96	60	1.2	260	NLV32T-3R3J-
3.9	± 5%	30	7.96	55	1.3	250	NLV32T-3R9J-
4.7	± 5%	30	7.96	50	1.5	220	NLV32T-4R7J-
5.6	± 5%	30	7.96	45	1.6	200	NLV32T-5R6J-
6.8	± 5%	30	7.96	40	1.8	180	NLV32T-6R8J-
8.2	± 5%	30	7.96	35	2	170	NLV32T-8R2J-
10	± 5%	30	2.52	30	2.1	150	NLV32T-100J-
12	± 5%	30	2.52	20	2.5	140	NLV32T-120J-
15	± 5%	30	2.52	20	2.8	130	NLV32T-150J-
18	± 5%	30	2.52	20	3.3	120	NLV32T-180J-
22	± 5%	30	2.52	20	3.7	110	NLV32T-220J-
27	± 5%	30	2.52	20	5	80	NLV32T-270J-
33	± 5%	30	2.52	17	5.6	70	NLV32T-330J-
39	± 5%	30	2.52	16	6.4	65	NLV32T-390J-
47	± 5%	30	2.52	15	7	60	NLV32T-470J-
56	± 5%	30	2.52	13	8	55	NLV32T-560J-
68	± 5%	30	2.52	12	9	50	NLV32T-680J-
82	± 5%	30	2.52	11	10	45	NLV32T-820J-
100	± 5%	20	0.796	10	10	40	NLV32T-101J-
120	± 5%	20	0.796	10	11	70	NLV32T-121J-
150	± 5%	20	0.796	8	15	65	NLV32T-151J-
180	± 5%	20	0.796	7	17	60	NLV32T-181J-
220	± 5%	20	0.796	7	21	50	NLV32T-221J-
270	± 5%	20	0.796	6	28	45	NLV32T-271J-
330	± 5%	20	0.796	5	34	40	NLV32T-331J-
390	± 5%	20	0.796	5	36	35	NLV32T-391J-
470	± 5%	20	0.796	4	40	25	NLV32T-471J-
