Product Specifications
| Prod Model: |
TDS-100F1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Liquid |
| Main Application: |
Virtually All Liquids |
| Sensor: |
Clamp-on/External |
| Measuring Principle: |
Transtime Prnciple |
| Accuracy: |
±1% |
| Size: |
Dn20~6000mm |
Product Description

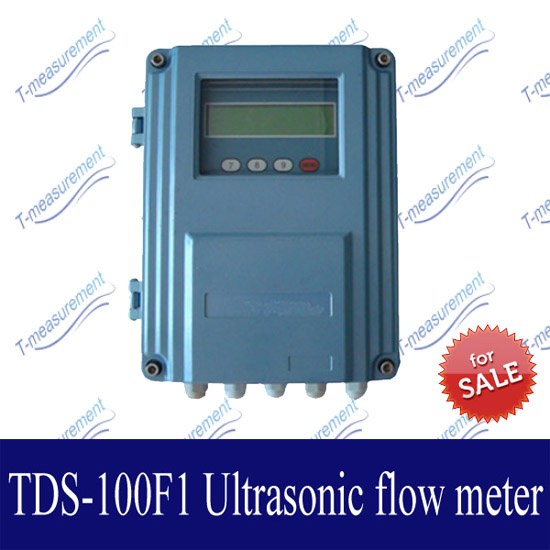

TDS-100F1 Separate fixed ultrasonic flow meter,ultrasonic flow meter,flow meter
1.Product features
1.Better than 1% accuracy
2.0.2% of repeatability
3.2x20 english letters lcd display
4.4x4 key tactile-feedback membrane keypad
5.85~264vac or 24vdc power supply
6.Pipe diameters from 15mm to 6000mm
7.Operate with clamp on, insertion and flow-cell transducer
8.One channel programmable 4-20ma output
9.Two channel programmable digital out (isolated oct and relay)
10.Ip65
11.Five channel analogue 4-20ma input.(version 7)
12.Sd usb data memory ( 1g, 4g, 8g etc )
2.Product introductions
| Tds-100f1 ultrasonic flow meter |
| Tds-100f is a fixed mounted ultrasonic flow meter, and can operate with all our instruments transducer.Their electronic enclosures are rated as ip65, thus, can be installed for both indoor and outdoor. |
| 1. | Better than 1% accuracy |
| 2. | 0.2% of repeatability |
| 3. | 2x20 english letters lcd display |
| 4. | 4x4 key tactile-feedback membrane keypad |
| 5. | 85~264vac or 24vdc power supply |
| 6. | Pipe diameters from 15mm to 6000mm |
| 7. | Operate with clamp on, insertion and flow-cell transducer |
| 8. | One channel programmable 4-20ma output |
| 9. | Two channel programmable digital out (isolated oct and relay) |
| 10. | Ip65 |
| 11. | Five channel analogue 4-20ma input.(version 7) |
| 12. | Sd usb data memory ( 1g, 4g, 8g etc ) |
3.Product preface
Tds-100f is a fixed mounted ultrasonic flow meter, and can operate with all our instruments transducer.Their electronic enclosures are rated as ip65, thus, can be installed for both indoor and outdoor.
4.Tds-100f1 accessories
1.5m×2 transducer cable for sensor
2.Clamp fixture
3.Spare connectors
5.Transducer options
5.1clamp-on transducer
(s2/m2/l2.)
| Technical parameters | S2-type | M2-type | L2-type |
| Pipe size (mm) | Dn15~100 | Dn50~700 | Dn300~6000 |
| Pipe size (inch) | ( 1/2~4" ) | (2~28" ) | ( 12~240" ) |
| Temperature | 32f~320f ( 0°c~160°c ) |
| Dimension (mm) | 45×30×30 | 71×37×40 | 91×52×44 |
| Weight (g) | 75 | 259 | 535 |
5.2 insertion wetted transducer
(b-type transducer/b-long type transducer)
| Technical parameters | B-type insertion wetted transducer (direct insertion) | Cement insertion wetted transducer |
| Pipe size | More than dn80mm |
| Pipe material | All metals, most plastics, fiber glass, etc. |
| Protection class | Ip68 (can work in water and water depth ≤ 3 meter) |
| Application of temperature | -40°c-160°c |
5.3 flow-cell transducer
(articulate type transducer/ pi-type transducer/ standard pipe transducer)
| Technical parameters | Articulate type transducer | Pi-type transducer | Standard pipe transducer |
| Pipe size | Dn25-dn80mm | Dn15-dn40mm | Dn50-dn1000 |
| Connection | Joint type | Flange type |
| Protection class | Ip68 ( can work in water, and water depth ≤ 3 meter ) |
| Application of temperature | -40°c-160°c |
Dalian Taijia Technology Co., Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. Prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
