Product Specifications
| Prod Model: |
UTG21-DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Distance Precision: |
0.3%(Standard Conditi |
| Installation Way: |
Installed in One or Split |
| Distance Resolution: |
1mm |
| Digital Output: |
RS485,Modbus Agreement or |
| Protection Grade: |
IP65 |
| Analog Output: |
4~20mA |
| Power Supply: |
DC24V/AC220V |
| Blind Area: |
0.25m~0.5m |
| Pressure: |
Less Than 4 Atmosphere Pressure |
| Cumulative Flow: |
99999999m3 |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Liquid |
| Main Application: |
Slurry |
| Measuring Principle: |
Ultrasonic Non-Contacting |
| Accuracy: |
+-0.3% F.S |
| Size: |
Slurry |
| Sensor: |
Nut or Flange |
Product Description
ultrasonic open channel flow meter,water flow meter open channel,parshall flume flow meter
Introduction

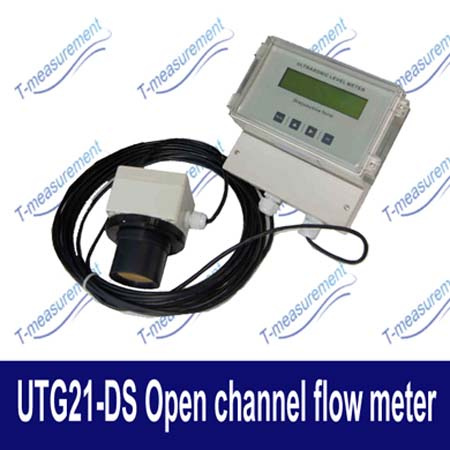

UTG21 series ultrasonic open channel flow meter can directly display the instantaneous and cumulative flow. The built-in EEPROM digital memory makes sure that the data will not lose in case of power failure. With different built-in algorithms, the product supports weirs or notches of different standards in various countries and can be widely used for measurement or monitoring of total water drainage. The measurement result is not affected by the water quality.
Features
| Model | Open channel ultrasonic flow meter UTG21-DS |
| Meaurement Method | Ultrasonic non-contacting |
| Accuracy | ±0.3% F.S |
| Flow accuracy | 1%~5% |
| Resolution | 1mm |
| Power supply | DC12~36V,AC85~265V |
| Display | LCD |
| The flow rate range | 0.1l/s~9999m3/s |
| The max totalizer | 99999999m3 |
| Output Analog: | 4-20mA
Digital: RS485, MODBUS-RTU |
| Temperature | -20ºC~60ºC |
| Pressure range | ±0.1MP (press definitely) |
| Material | ABS (UTG21-DS) |
| Protect grade | IP65 (UTG21-DS) |
| Installation way | Installed in one or split |
Technical Parameters
| Model | UTG21-DS Open channel ultrasonic flow meter |
| Measuring range | 0.1l/s~9999m3/s |
| Cumulative flow | 99999999m3 |
| Blind area | 0.25m~0.5m |
| Distance precision | 0.3%(standard condition) |
| Distance resolution | 1mm |
| Flow precision | 1%~5%(subject to the type of weir plate) |
| Pressure | Less than 4 atmosphere pressure |
| Display | LCD displays the instantaneous flow and cumulative flow |
| Analog output | 4~20mA |
| Digital output | RS485,Modbus agreement or customized agreement |
| Power voltage | DC24V/AC220V,built-in lightning proof device |
| Protection grade | IP65 |
| Installation way | Installed in one or split |
Dalian Taijia Technology Co., Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. Prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
