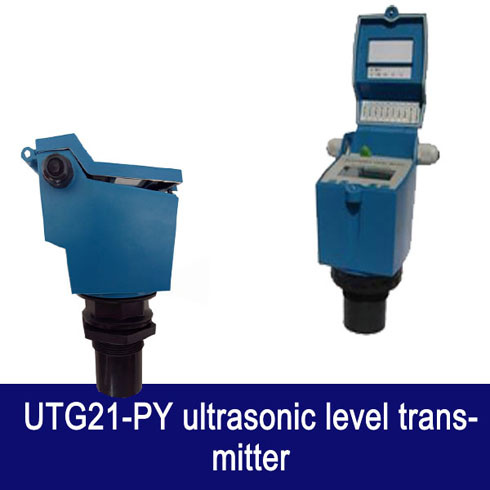

Ultrasonic liquid meter/ultrasonic level meter/ level transmitter/level sensor
Introductions
Utg21-py includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature.The meter's all input and output lines must be with such protection functions as lightning protection and short circuit prevention.
Features
1.Range:0~15m
2.Blind area:0.25m~0.5m
3.Ranging accuracy:0.3% (standard condition)
4.Ranging resolution:1mm
5.Pressure:Less than four atmospheric pressure
6.Display:With lcd to display liquid levels
7.Analog output:4~20ma
8.Digital output:Rs485, agreement modbus or customization agreement (four-wire)
9.Power supply:Dc24v or ac220v
10.Ambient temperature:-20ºc~+60ºc
11.Protection grade:Ip65
12.Installation:Nut or flange
Specification
1.For circuit design, high-quality power modules are selected to be as power supply parts and highly stable and reliably imported devices are used as components of the meter.It can fully replace imported foreign meters of the same type.
2.Patent sonic-wave intelligent technology software can make intelligentized echo analysis.It needs neither debugging norother special steps.This technology has functions of dynamic thinking and dynamic analysis.
3.Our sonic-wave intelligent patent technology greatly improves the meter's precision, and the precision of liquid level is up to 0.3%, which is enough to resist various interference waves.
4.The meter is a non-contact one and does not directly contact liquid, so the fault rate is low.The meter can be installed in several different ways, and the user can make meter calibration according to the manual.
5.The meter's all input and output lines must be with such protection functions as lightning protection and short circuit prevention.
Technical parameter
| Model number | Utg21-py ultrasonic level transmitter |
| Range | 0~15m |
| Blind area | 0.25m~0.5m |
| Ranging accuracy | 0.3% (standard condition) |
| Ranging resolution | 1mm |
| Pressure | Less than four atmospheric pressure |
| Display | With lcd to display liquid levels |
| Analog output | 4~20ma |
| Digital output | Rs485, agreement modbus or customization agreement (four-wire) |
| Power supply | Dc24v or ac220v |
| Protection grade | Ip65 |
| Installation | Nut or flange |
Features
1.Dc24v or 220vac
2.4-20ma, rs485 output
3.2-wire
4.Ip65
5.0.3~0.5% accuracy
Contact information
Dalian taijia technology co., ltd
No.2(gan)huabei road, dalian china
Tel:86-411-86737519
Fax:86-411-86737519
Web:Www.Tmeasurement.Com
Dalian Taijia Technology Co., Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. Prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
