Ultrasonic Open Channel Flow Meter, Open Channel Flow Meter, Parshall Flume Flow Meter

Product Specifications

Prod Model:	UTG21-DS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Blind Area:	0.25m~0.5m
Distance Precision:	0.3%(Standard Conditi
Distance Resolution:	1mm
Installation Way:	Installed in One or Split
Protection Grade:	IP65
Power Voltage:	DC24V/AC220V,Built-in Lighting Proof Device
Digital Output:	RS485,Modbus Agreement or
Analog Output:	4~20mA
Pressure:	Less Than 4 Atmosphere Pressure
Cumulative Flow:	99999999m3
Type:	Ultrasonic Flow Meter
Measuring Media:	Liquid
Main Application:	Slurry
Measuring Principle:	Ultrasonic Non-Contacting
Accuracy:	+-0.3% F.S
Size:	Slurry
Sensor:	Nut or Flange

Product Description

ultrasonic open channel flow meter, open channel flow meter, parshall flume flow meter


Introduction
UTG21 series ultrasonic open channel flow meter can directly display the instantaneous and cumulative flow. The built-in EEPROM digital memory makes sure that the data will not lose in case of power failure. With different built-in algorithms, the product supports weirs or notches of different standards in various countries and can be widely used for measurement or monitoring of total water drainage. The measurement result is not affected by the water quality.

Features

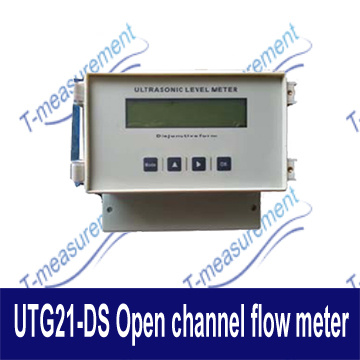

Model Open channel ultrasonic flow meter UTG21-DS
Meaurement Method  Ultrasonic non-contacting
Accuracy ±0.3% F.S
Flow accuracy   1%~5%
Resolution 1mm
Power supply DC12~36V,AC85~265V
Display LCD
The flow rate range 0.1l/s~9999m3/s
The max totalizer 99999999m3
Output Analog: 4-20mA
Digital: RS485, MODBUS-RTU
Temperature -20ºC~60ºC
Pressure range ±0.1MP (press definitely)
Material ABS (UTG21-DS)
Protect grade IP65 (UTG21-DS)
Installation way Installed in one or split
