Product Specifications
| Prod Model: |

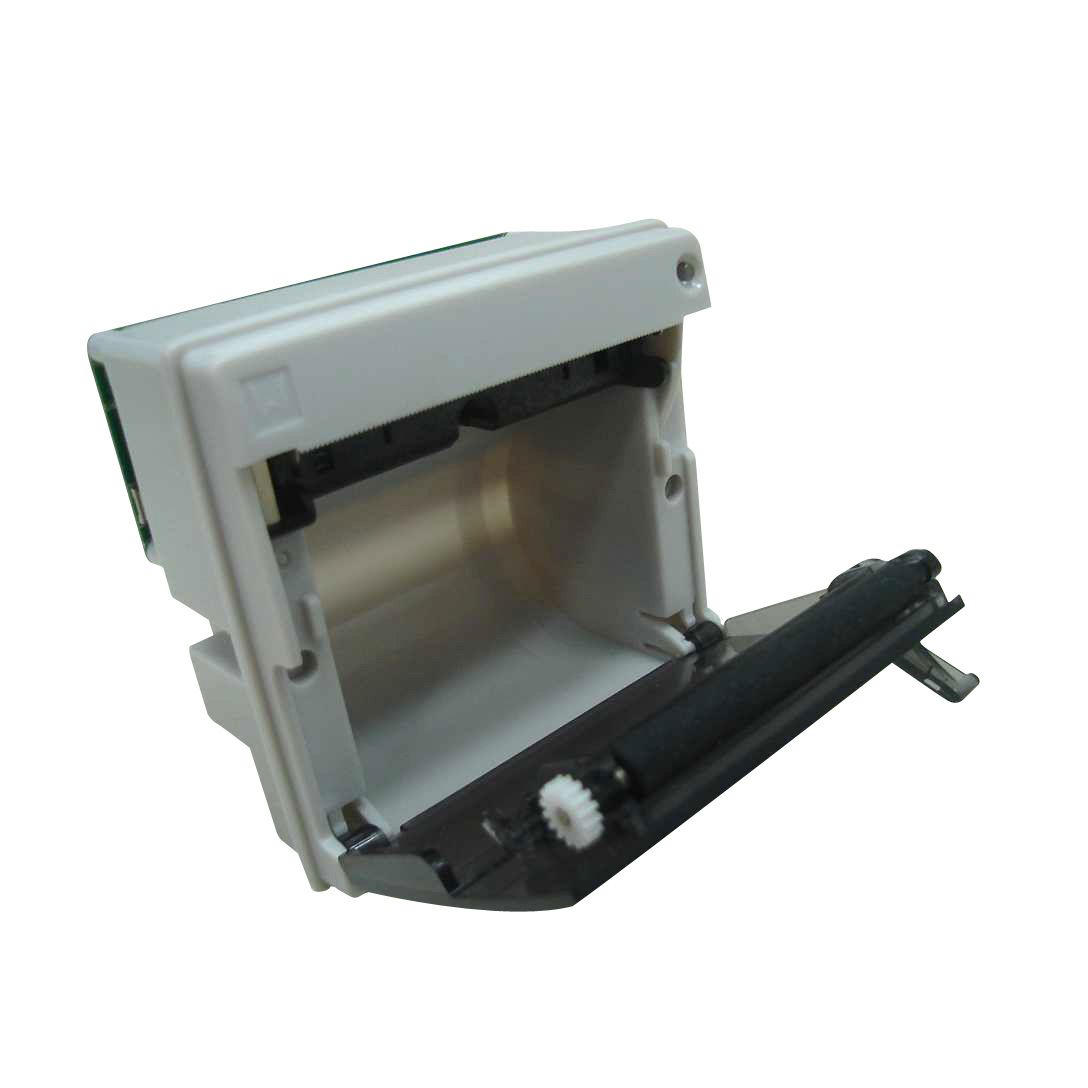

E21 thermal panel printer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printing Method: |
Direct Thermal Line Printing |
| Paper Out Detection: |
Paper End Sensors Function |
| Paper Loading Way: |
Easy Paper Loading |
| Paper Width: |
57 Mm |
| Print Width: |
48 Mm |
| Resolution Ration: |
8 Dots/Mm(384 Dots/Line) |
| Life Of Printing Head: |
6, 000, 000 Character Lines |
| Printing Speed: |
70mm/Sec(When The Utilization Rate Is 25%. ) |
| Character Per Line: |
24 |
| Character Size: |
12X24dots |
| Interface Type: |
Serial / Parallel |
| Type: |
Thermal Printer |
| Max. Paper Size: |
57mm |
Product Description
Thermal panel printer / DOT matrix printer / POS printer / USB printer / Portable printer / WH E21 with Serial interface
| Very silent printing thru direct thermal printing method |
| Paper end sensors function and self-motion memory printing function |
| With high speed 70mm/sec(when the utilization rate is 25%. ) |
| Abundant figure/curves/characters print function |
| Add coordinate curve printing function |
| Easier paper loading (key ejecting type) |
|
| Item | Specification |
| Printing method | Direct thermal line printing |
| Paper out detection | paper end sensors function |
| Paper loading way | easy paper loading |
| Paper width | 57 mm |
| Print width | 48 mm |
| Resolution ration | 8 dots/mm(384 dots/line) |
| Life of printing head | 6, 000, 000 character lines |
| Printing speed | 70mm/sec(when the utilization rate is 25%. ) |
| Character per line | 24 |
| Character size | 12x24dots |
| Chinese character library | GB2312, 24x24dots |
| Outline dimension(WxHxD mm) | 80mmx74.7mmx46.2mm |
| Installation dimension(WxH mm) | 76+0.5mm(W)x72+0.5mm(H) |
| Inlaid deepness | 33.7mm |
| Paper supplied | Thermal roll paper (57mm wide, 42mmø ) |
| Interface | Serial RS-232C |
| Input Power | Printer head DC8V 15W, control panel DC5V, 300MA |
| Operating temperature | 5° C~ 50° C |
| Storage temperature | -20° C~ 60° C |
| Operating humidity | 10° C~ 80° C |
| Storage humidity | 10° C~ 90° C |
Beijing Bright Technology Development Co., Ltd is a leading manufacturer of mini printers for over 16 years. The Company is a high technology firm which was established in 1998, and specializes in research, design, manufacture and sales of mini printers and interrelated products. Now we have many professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China.
