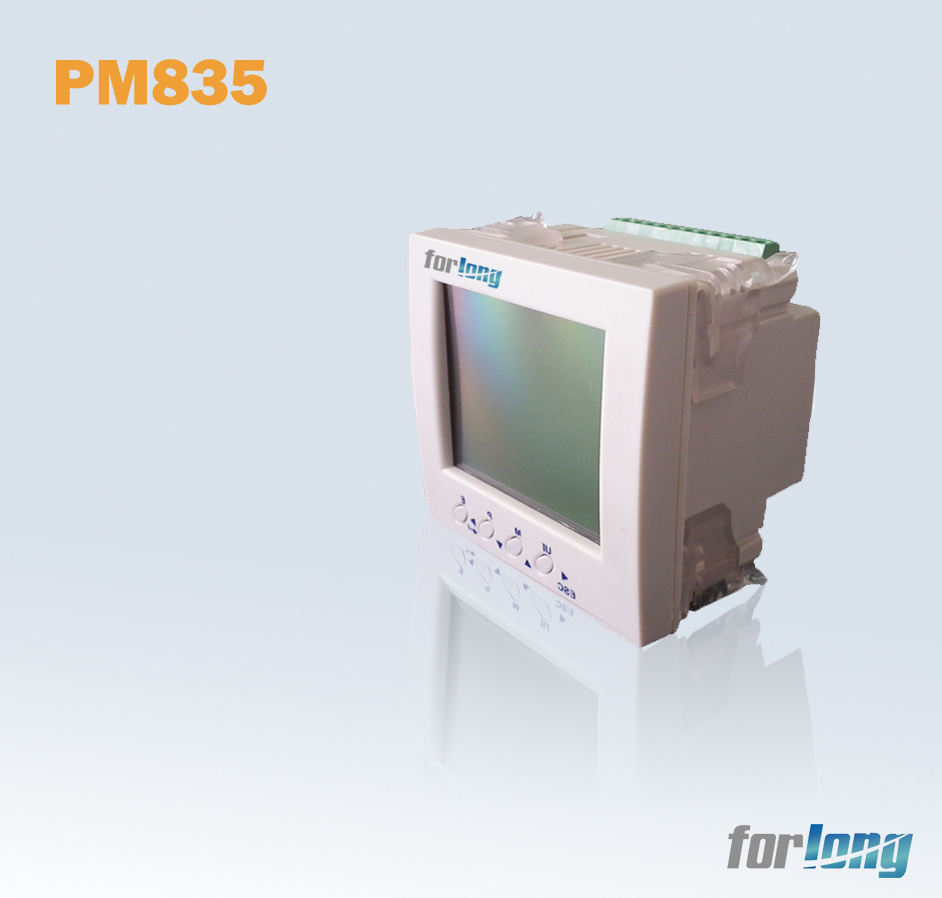

Three Phase Digital Panel Meter

Name: Three Phase Digital Panel Meter
Brand: China-Manufacturer-Directory.com
SKU: 669332792
Availability: InStock
Rating: 4.9 (121 reviews)

Supplier:	Shanghai Fengyilong Electronic Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electric Equipment:	Three-phase Four-wire
Installation:	Direct Connected
Power Source:	AC Meter
Theory:	Electronic Meter
Usage:	Multi-Functional Energy Meter

Product Description

Multi-function Panel energy meter

Features

Class 1 accuracy

Pulsed output

Active energy consumption indication

Benefits

High accuracy

Good reliability

Small volume

Light weight

System safe

No maintenance

Meter specifications
Meter Type	X834
Nominal Voltage(Un)	230/400V AC (3~)
Operational voltage	161/279 – 300/520V AC (3~)
AC Voltage Withstand	4KV for 1 minute
Impulse Voltage Withstand	6kV – 1.2µS waveform
Basic Current (Ib)	1.5A (CT type); 10A(directly connect)
Maximum Rated Current (Imax)	6A (CT type); 100A(directly connect)
Operational Current Range	0.4% Ib- Imax
Over Current Withstand	30Imax for 0.01s
Operational Frequency Range	50~60Hz ±10%
Internal Power Consumption	≤2W / 10VA
Test Output Flash Rate (RED LED)	3200imp/kWh (CT type); 400imp/kWh (directly connect)
Pulse Output Rate (pins 7 & 8)	3200imp/kWh (CT type); 400imp/kWh (directly connect)
Accuracy class 1
Voltage, LN & LL (Phase1,2,3)	±0.5%
Amps (Phase 1,2,3)	±0.5%
Frequency	±0.2%
Active Power (Phase 1,2,3&Σ)	±0.5%
Reactive Power (Phase 1,2,3&Σ)	±0.5%
PF (Phase 1,2,3 &Σ)	±0.2%
Active power (Phase 1,2,3&Σ)	±0.5%
Reactive power (Phase 1,2,3&Σ)	±2%
Apparent power (Phase 1,2,3&Σ)	±0.5%
RS485 communication specifications
Bus Type	RS485 protocol
Baud Rate	1200,2400,4800,9600,19200 (optional)
Address range	1-255 user settable
Bus Loading	256 meters per bus
Communication Distance Range	1200m
Infrared communication specifications
Infrared Wavelengths	900- 1000nm
Baud Rate	1200bp
Communication Distance Range	5m
Communication Angle	-15°~+15
Protocol	MODBUS RTU with 16 bit CRC
Performance Criteria
Operating Temperature	-10°C to +50°C
Storage Temperature	-30°C to +70°C
Operating Humidity	≤ 75% non condensing
Storage humidity	≤ 95% non condensing
IP Protection	IP51
Protective class	II
Dimensions	130 mm high x 65mm Depth x 126mm Width
Weight	0.7KG

Shanghai Fengyilong Electronic Co., Ltd. is an experienced manufacturer of electronic meters, and has its headquarter in Shanghai, China and subsidiary factory in Jiangsu province. As a member of National Instrument & Meter Associations, we have involved in drafting our National Standards for instruments & meters.

We are an ISO9001 company, we have very good quality control mechanism on production process. We have our dinrail energy meter, prepayment energy meter, socket energy meter CE approved.

We have our own import and export rights and possess skillful import & export operating persons as well.

Here we are highly honored to enter into your business line, so we heartily wish to serve you with our good products. We also hope that we can join our hands to work hard for our mutual future.

You are welcome to visit our showroom.
