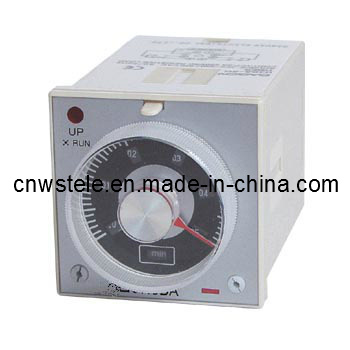

Product Specifications
| Prod Model: |
H3BA-8(ST4P) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Current: |
16A |
Product Description
Application:
Time relay can be widely used in machinery and equipment needing self-control of high precision and reliability. It is characterisitic of small size, light weight, compact strucure, high dependable and efficient, long life, ect.
| Model | H3BA-8 |
| Voltage | AC24V-220V 50Hz, DC24V-48V |
| Contact |
| H3BA-8 | : Timed 2PDT |
| H3BA-8H | Timed SPDT, Inst. SPDT |
| Operation |
| H3BA-8 | On-delay |
| H3BA-8H | On-delay with inst. Contact |
| Timing Range | 0.5S-100H |
| Model | ST3P |
| Voltage | AC24V-220V 50Hz, DC24V-110V |
| Contact | |
| ST3A | Timed 2PDT |
| ST3PC | Timed SPDT, Inst. SPDT |
| ST3PF | Timed SPDT |
| Operation | |
| ST3A | On delay |
| St3PC | On-delay with Inst. Contact |
| ST3PF | Off-delay |
| Timing Range | |
| A | 0.05-0.5S/5S/30S/3M |
| B | 0.1-1S/10S/60S/6M |
| C | 0.5-5S/50S/5M/30M/ |
| D | 1-10S/100S/10M/60M |
| E | 5-60S/10M/60M/6H |
| F | 0.25-2M/20M/2H/12H |
| G | 0.5-4M/40M/4H/24H |
| Model | ATDV-N/Y |
| Voltage | AC24V-220V 50Hz DC24V-48V |
| Contact | Timed SPDT |
| Operation | Reset recycling tied(On-delay) |
| Timing Range | 3S. 6S. 12S. 30S. 60S. 3M. 6M. 10M. 12M. 30M. 60M. 3H. 6H. 10H. 12H. 24HH3Y |
Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.
Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.
We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.
Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
