Product Specifications
| Prod Model: |

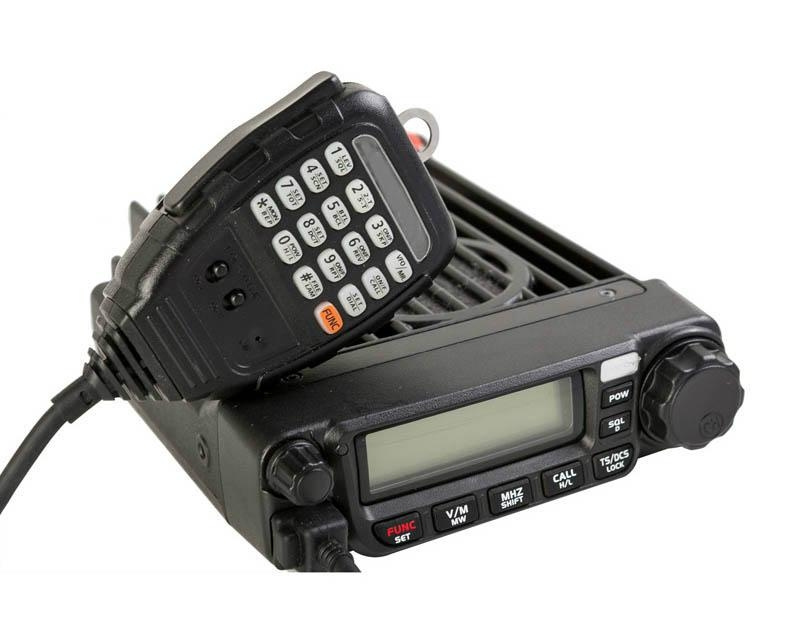

TM-8600 VHF radio |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
VHF:136-174MHz 245-245.9875MHz (220-260MHz) UHF |
| Output Power: |
VHF: 10W/25W/60W UHF: 45W/25W/10W |
| Memory Channels: |
200 |
| Channel Spacing: |
25kHz (Width)/12.5kHz(Narrow) |
| Ctcss/Dcs Setting & Scanning: |
Yes |
| Frequency/Channel Scanning: |
Yes |
| Vfo Step Setting: |
5/6.25/10/12.5/20/25/50kHz |
| Busy Channel Lockout: |
Yes |
| Dtmf Function: |
Yes |
| PC Programming: |
Yes |
| Standard: |
Standard |
| Condition: |
New |
| Screen: |
With Screen |
| Application: |
Military |
| Wavelength And Frequency: |
Short-wave |
| Style: |
Sky Wave |
Product Description
Specification:
Model TM-8600
Frequency Range136-174/400-490MHz
Channel Capacity200
Channel Spacing5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Frequency Stability2.5ppm
Operating Temperature-20°C ~ + 60°C
Operating Voltage13.8V DC ± 15%
Dimension(H*W*D)145mm x190mm x47mm
Weight(with bracket)1200g
Receiver
Reference Sensitivity0.25V / 0.35V
Operating Bandwidth60dB 12.5KHz /70dB 25KHz
Adjacent Channel Selectivity60dB 12.5KHz 70dB 25KHz
Inter-modulation Rejection≥60dB/ ≥65dB
Spurious Response Rejection≥70dB
Rated Audio Response+1-+3dB
Rated Audio Distortion<5%
FM Hum & Noise≥40dB 25KHz /≥45KHz 12.5KHz
Transmitter
RF Power45W/25W/10W(UHF)/60W/25W/10W(VHF)
Frequency Modulation11kΦF3E / 16kΦF3E
Modulation Distortion<5%
FM Noise≥36dB 25KHz /≥40KHz 12.5KHz
Adjacent Channel Power≥60dB 12.5KHz /≥70KHz 25KHz
Audio Response+1-+3dB
Audio Distortion<5%
|
Frequency Range: VHF:136-174MHz UHF: 400-490MHz |
|
Output Power: VHF: 10W/25W/60W UHF: 45W/25W/10W |
|
1750Hz Tone |
CTCSS/DCS setting & scanning |
|
0-9 SQL grade setting |
Frequency/Channel scanning |
|
High/Mid/Low power selectable |
Voice compander |
|
Repeater offset shift |
Keypad lock function |
|
Contact book |
Battery voltage display |
|
DTMF/2 tone/5 tone |
ANI ID |
|
Remote kill/ stun/ activate/ revive |
Emergenvy alarm |
|
Wide/Narrow band setting |
TX inhibit |
|
Busy Channel Lock-Out |
Channel name editing |
|
Reverse frequency |
Talk around |
|
Scrambler(Optional) |
Voice prompt |
|
Time-out Timer |
Auto Power off |
|
VFO step setting:5/6.25/10/12.5/20/25/50kHz |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
