Auka Industrial Limited >> Touch Screen Computer 17" for Industrial/Medical/Gaming Application

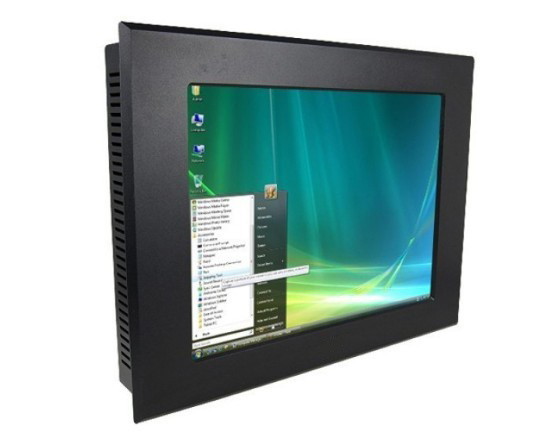

Touch Screen Computer 17" for Industrial/Medical/Gaming Application

Supplier:	Auka Industrial Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	PC-1701T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Mode:	4:3
Resolution:	1280X1024
Brightness:	250CD/M2
Contrast Ratio:	1000:1
Type:	IPC
Touch Screen:	Touch Screen
Installation:	Wall-Mounted
Application:	Industrial
CPU Type:	Core Duo
Accessories:	Industrial Power Supply
Screen Size:	17 Inch

Product Description

17 inch industrial touch 250nit panel pc with resolution 1280x1024

1. Industrial grade AD board

2. Different sizes from 7"-24"

3. Fanless industrial panel pc

4. Standing up to tough industrial environment

5. ODM/OEM supports

6. Supporting USB interface and multiouch

7. With CE, FCC, ROHS, ISO9001 certificates

Product Description

PC-1701T Panel PC all in one
Specification
Item	Project	Parameter
LCD Display	Display Type/Size	Color TFT LCD/17″
	Active Display Area (mm)	337.92mm(W)×270.336mm(H)
	Display Mode	4:3
	Max Resolution	1280×1024
	Support Color	16.7M
	Luminance(cd/m2)	250nit
	Backlight	2 CCFL
	Contrast Ratio	1000:1
	Response Time	4ms
	Pixel Pitch	0.264(H)×0.264(V)
	Viewing Angle	170/160(H/V)
Processor System	Chip set	Intel NM10
	CPU	Intel N2600 (Intel I3.I5.I7 optional)
	Internal memory	DDR3 (800/1066/1333MHz) Typ. 2G (Max 4G)(optional)
	Hard disk	16GB high speed solid state hard disk(32,64,120GB SSDoptional)
	HDMI ports	1xHDMI Port
	COM ports	Defaultx2COM(optional)
	Ethernet ports	Two Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.)
	Audio	with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit
	USB ports	Defaultx4 USB(Max x6)
Touch Type(optional)	TouchScreen Type	Resistive(4-wire/5-wire)
	Optional Touch Type	SAW, IR, Capacitive
	TouchScreen interface	Serial (RS232) or USB
Power supply	Input Voltage	DC12V 4A
	Output Rating	less than 30W
Temperature Range	Operating Temperature	-20~70ºC
	Storage Temperature	-20~70ºC
	Relative Humidity	20(%RH)~90(%RH)

Auka Industrial Limited is a high-tech enterprise specializing in TFT LCD Monitor, Touch Screen Monitor, Camera Field Monitor, Embedded Computer, Industrial Panel PC, CCTV Monitor, USB Touch Monitor, Open Frame Monitor, LCD SKD Module, All in one POS, Transparent LCD, Sunlight Readable Monitor, FPV Monitor, Police Body Worn Camera and car DVR Recorder. And are widely used in the fields of security monitoring, traffic control center, broadcasting system, military, city square, shopping mall, bank, school and hospital, etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc. We have set up a large customer network and gained praise since establishment in 2005 for preciseness, cordiality, powerful technology support and perfect market understanding. A factory with more than 8, 000 sq. M. As well as a team of well-trained employees. Our department of R&D, production, sales and after-service strictly abide by ISO9001 quality control system. Certified by CE, FCC, RoHS, CCC and E-MARK standard, the performance of our products meets or exceeds the advanced world standard. And our own-designed LCD Touch Monitor have became popular among many long- term customers and partners. Our products have been exported to America, Europe, Middle East, Australia and Southeast Asia.

We have yeares experience in OEM of VGA Touch screen, TFT LCD Module, Embedded Computer.

Welcome to our company for any OEM / ODM cooperation! Let' S go ahead hand in hand to embrace our prosperous tomorrow!

Professional, fast, and wonderful after-sales service is our mission. Customers' satisfaction is our final aim.
