TVS Rectifier

Name: TVS Rectifier
Brand: China-Manufacturer-Directory.com
SKU: 669055141
Availability: InStock
Rating: 4.6 (45 reviews)

Supplier:	Chip Integration Technology Corporation
Price:	Negotiable/Piece
Min Order:	10000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	P4KE/ SMAJ/ P4SMA/ SA/ P6KE/ P6SMB/ SMBJ/ 1.5KE

Product Description

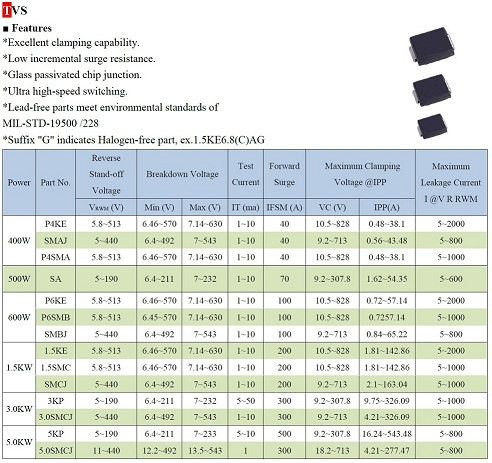

TVS=Transient Voltage Suppressor Diode
TVS is a general classification of an array of devices that are designed to react to sudden or momentary overvoltage conditions.

Product Feature
1) Excellent clamping capability.
2) Low incremental surge resistance.
3) Glass passivated chip junction.
4) Ultra high-speed switching.
5) Lead-free parts meet environmental standards of MIL-STD-19500 /228

Power	Part No.	Reverse Stand-off Voltage	Breakdown Voltage		Test Current	Forward Surge	Maximum Clamping Voltage @ IPP		Maximum Leakage Current I @ V R RWM
Power	Part No.	V_RWM(V)	Min(V)	Max(V)	IT(ma)	IFSM(A)	VC(V)	IPP(A)	Maximum Leakage Current I @ V R RWM
400W	P4KE	5.8~513	6.46~570	7.14~630	1~10	40	10.5~828	0.47~38.1	5~2000
	SMAJ	5~440	6.4~492	7~543	1~10	40	9.2~713	0.56~43.48	5~800
	P4SMA	5.8~513	6.46~570	7.14~630	1~10	40	10.5~828	0.47~38.1	5~1000
500W	SA	5~190	6.4~221	7~232	1~10	70	9.2~307.8	1.62~54.35	5~600
600W	P6KE	5.8~513	6.46~570	7.14~630	1~10	100	10.5~828	0.72~57.14	5~2000
	P6SMB	5.8~513	6.45~570	7.14~630	1~10	100	10.5~828	0.72~57.14	5~1000
	SMBJ	5~440	6.4~492	7~543	1~10	100	9.2~713	0.84~65.22	5~800
1.5KW	1.5KE	5.8~513	6.46~570	7.14~630	1~10	200	10.5~828	1.81~142.86	5~2000
	1.5SMC	5.8~513	6.46~570	7.14~630	1~10	200	10.5~828	1.81~142.86	5~1000
	SMCJ	5~440	6.4~492	7~543	1~10	200	9.2~713	2.1~163.04	5~1000
3.0KW	3KP	5~190	6.4~221	7~232	5~50	300	9.2~307.8	9.75~326.09	5~1000
3.0KW	3.0SMCJ	5~440	6.4~492	7~543	1~10	300	9.2~713	4.21~326.09	5~1000
5.0KW	5KP	5~190	6.4~221	7~232	5~50	500	9.2~307.8	16.24~543.48	5~800
5.0KW	5.0SMCJ	11~440	12.2~492	13.5~543	1~10	300	18.2~713	4.21~277.47	5~800

The CITC has profound discrete semiconductor components and production process technology and experience based on 400 plus related patents. Its high power Schottky diode structure technology has won the award of excellent BIR manufacturer from the Department of Industrial Technology, MOEA, Taiwan.

CITC's process technology is unique in its applying the semiconductor production process to break the physical constraints bore by traditional Schottky diode components for concurrent Low VF, low leakage current and High breakdown voltage.

In addition to standard Schottky diode products, the CITC can provide Super Low VF (VF<0.32V) and High Power (VB>300V) ones as well as custom products to meet specific customer needs. The super low forward bias and high voltage Schottky diode products are widely adopted not only by domestic but also multiple international firms.

Recently, environment protection, green, energy saving and carbon reduction are highly recognized by every industry as indicated by more demanding energy conversion efficiency of electronic products. The CITC has been undertaking to improve product quality and comply with the RoHS international environment protection standards for Halogen-free process and to develop Schottky diodes of still lower forward bias voltage for better energy conversion efficiency.
