5.0mm PCB Screw Terminal Blocks Connector
Pitch:5.0mm
Material:
Screws:M2.5 steel Zinc plated
Wire guard:Phosphor bronze Ni plated
Or stainless steel
Pin header:Brass, Tin plated
Housing:PBT, UL94V-0
Electrical:
Rated voltage:300V
Rated current:16A
Contact resistance:20mΩ
Insulation resistance:5000MΩ /1000V
Withstanding voltage:AC1500V/1Min
Wire Range:22-14AWG 2.5mm²
Mechanical:
Temp Range:-30º C~+120º C
Max Soldering:+250º C, for 5Sec.
Torque:0.5Nm(4.5lb.In)
Struo lebgtg:4.5-5mm

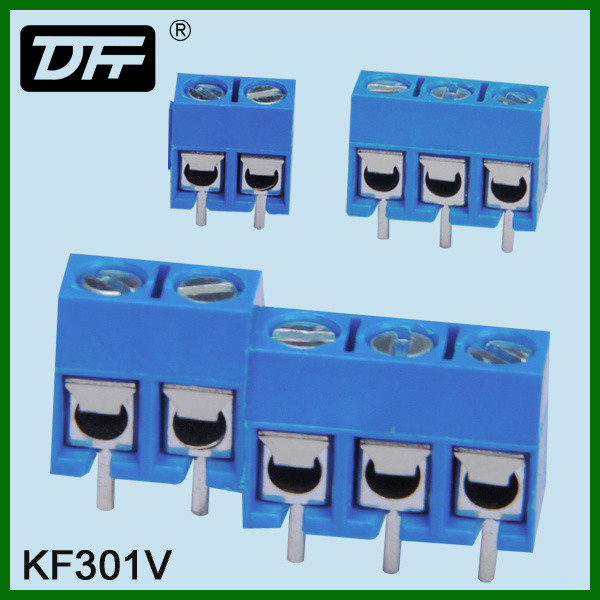

Picture of？UL CE 5.0mm PCB Screw Terminal Blocks Connector
Datasheet of？UL CE 5.0mm PCB Screw Terminal Blocks Connector
Packing of？UL CE 5.0mm PCB Screw Terminal Blocks Connector
Dear friend,KF301V is our popular products,if you are interested in it,please contact with us at any time,we will give you a quick reply and try our best to do all the thing well.
Many thanks for your kind attention to PCB Screw terminal block connector
|
Part number |
KF301V |
|
Pitch |
5.0mm |
|
Material |
PA66, UL94V-0 |
|
Rated voltage/current |
300V/12A |
|
Contact |
Phosphor bronze |
|
Wire range |
22-14AWG 2.5mm² |
|
Strip length |
4.5-5mm. |
|
Temp. Range |
-30C~+150C |
|
package |
we packed in the standard cartons:28*28*42cm,or as your requirement. |
|
Payment |
100% TT before shippment |
