Product Specifications
| Prod Model: |
SD10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor Type: |
Progressive Scan CMOS |
| Resolution: |
2048*1536:12fps |
| Sensor Model: |
Mt9j003 |
| Scan Mode: |
by Line |
| Shutter Mode: |
Rolling Shutter |
| Exposure Time: |
0.036~300ms |
| Sensitivity: |
>0.31V/Lux-Sec(550nm) |
| Dynamic Range: |
65.2db |
| Image Sensor: |
CMOS |
| Megapixel: |
10.0-20.0MP |
| Screen Size: |
2-3" |
| Optical Zoom: |
Fixed Focus |
| Type: |
SLR |
| Lens: |
Carl Zeiss |
| Memory Card Type: |
PC Memory |
Product Description
SD10

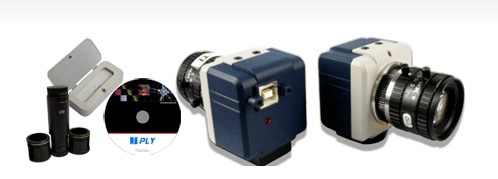

Machine Vision and Inspection USB 2.0 CMOS 10.0MP Camera
Specifications
SENSOR: MT9J003
SENSOR Size: 1/2.3" CMOS Color
Effective pixels: 3664× 2748(10M)
Resolution: 1280× 720(BIN): 28FPS
Pixel size: 1.67μm× 1.67μm
Image data format: Raw8/Raw10/Raw12
Sensibility: 0.31V/Lux-sec(550nm)
SNR: 34dB
Dynamic range: 65.2dB
Scanning mode: Progressive scan
Shutter: Electronic rolling shutter
Exposure time: 0.036~300ms
Exposure control: Auto exposure/Manual exposure/Area exposure
White balance: Manual white balance/Once key white balance/Area white balance
Product firmware update: Remote update is supported
Camera ID: User writing ID into camera is supported
Programmable control: Camera working speed, image dimension, shootmode, image lightness, exposure time, gain, anti-flick, GAMMA, contrast, RGB gain, saturation, black balance, sharpness
Support system : Windows XP(32-bit); Win7(32/64-bit)
Support interface: TWAIN, DirectShow
Data interface : USB2.0 480Mb/s
Product indicator: LED constantly being on when power on and standing by and blink when working
Power consumption: Work≤ 1.3W, Stand by ≈ 0.55W
Working humidity: 10%-90%RH(No condensation)
Storage humidity: 10%-60%RH
Lens Mount: C/CS mount
PCB Size: 33× 33mm(2 blocks)
Product dimension: 44.1× 43× 41.5mm(Without extension ring and outer fixed block)
Product weight: About 123g
