Product Specifications
| Prod Model: |
WS-V720-3X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor: |
720p 1.3megapixel |
| Zoom: |
3X |
| Lens: |
2.0megapicel, 5-15mm |
| Camera Angle: |
41 Degree to 19degree Wide-Angle |
| Interface: |
USB 2.0 |
| Power: |
DC12V |
| Size: |
240 X 145 X 95mm |
| Weight: |
730g |
| Type: |
Voice Conferencing System |
| Communication: |
Wired |
Product Description
Features
720P Resolution
Zoom: 3X optical Zoom
Pan Rotation Angle: 0-360 degree
Tilt Rotation Angle: 0-120 degree
No need video capture card
Support Image Flip function
Compatible with Polycom PVX_8.0, Cisco WebEx series etc. QQ, MSN, Skype, Lync ect.
Using the new 800-megapixel CMOS WS-V720 2.5mm high-definition wide-angle lens, image reproduction and high, a wider viewing angle (up to 75-degree angle), true 720P high-quality image (1280 * 720 resolution and 30 frames / sec); With USB interface, WS-V720 No video capture card, driver-free plug-and-play design, on the left and right rotation, and other high-performance full-focus lens WS-V720, whether you are watching a 30mm or 5 meters from the scene can obtain a clear image camera WS-V720 wide-angle video conference to the Order of the show the best quality and high-definition screen, eliminating the need for the manual focusing cumbersome and embarrassing! This subsection, the product is suitable for small and medium-sized conference rooms, personal desktop video capture for a variety of video conferencing software and QQ, MSN, SKYPE video calls.

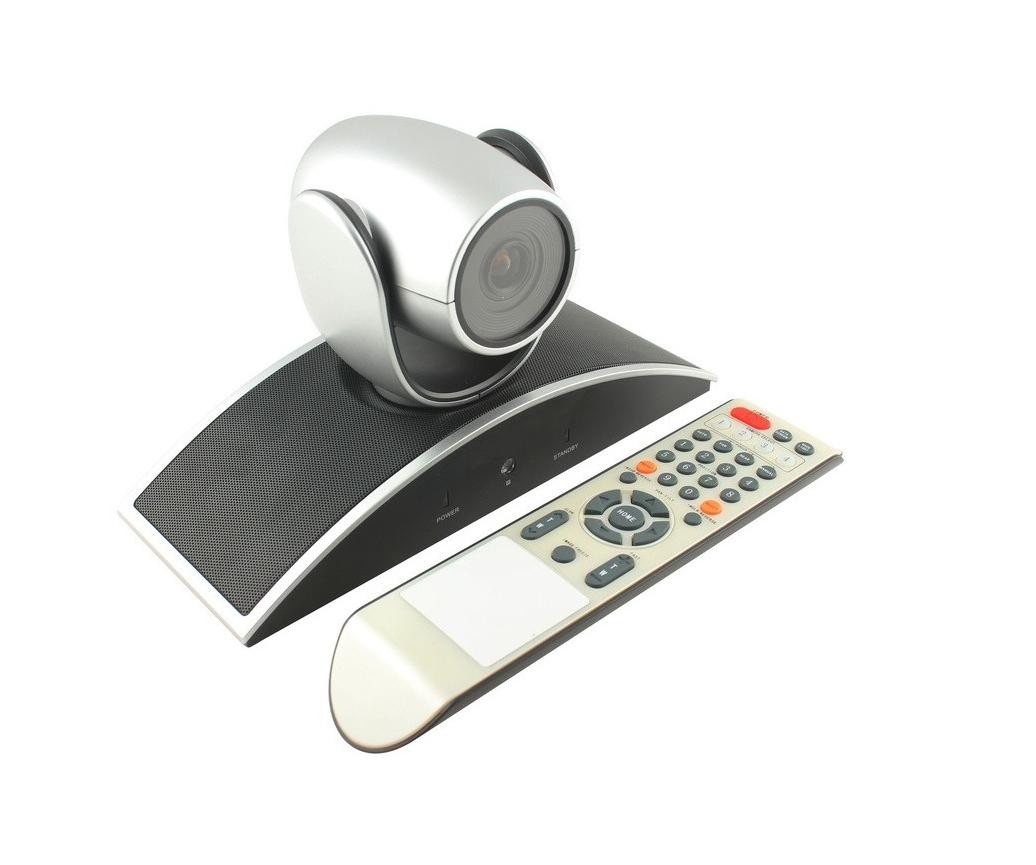

WS-V720 HD video conferencing camera dedicated camera for video conferencing systems industry. Beautiful appearance, unique shape, compact structure; Running smoothly, no noise, PTZ speed adjustable; Precise positioning, stopped deviation jitter, and high reliability; May be long-term stable operation, easy to use, no maintenance. Multi-point goals preset memory, area scan, auxiliary switch control, infrared remote control and other features. 360 ° Horizontal unrestricted scan range, compatible with a variety of control protocols, standard RS422/RS232 control mode.
If you want to get high-quality color images in the operation of the remote control pan / tilt /, WS-V720 video conferencing camera in wide angle is no doubt and good selection, and simple package, close. This camera has a high-speed rotation, tilt quiet operation in a wide range of field of view. Suitable conditions with poor lighting in the video conferencing, distance learning, corporate training, monitoring, Games, concerts and internet communications network transmission application s. WS-V720 is your best choice. "
|
Model No. |
WS-V720-3X |
|
Sensor |
720P 1.3 Megapixels |
|
Resolutions |
720P(1280x720) VGA(640x480) CIF(352x288) |
|
Frame rate |
720P:30fps |
|
Zoom |
3x optical |
|
Minimum illumination |
[email protected] |
|
Lens |
2.0 Megapixel, 5.-15mm lens |
|
Camera angle |
41° -19° wide-angle |
|
Focus |
30mm - infinity |
|
Exposure |
Auto |
|
White Balance |
Auto/Manual |
|
S/N Ration |
48dB |
|
Interface Universal Serial Bus |
USB 2.0 |
|
Pan/Tilt Range |
Pan:0° - 360; Tilt:0 - 120°. |
|
Pan/Tilt Speed |
60-120°/sec. |
|
Power |
DC 12V |
|
Product size |
240 x 145 x 95mm |
|
Product Weight |
730g (including cable) |
|
Cable length |
5 Meters |
