World's First Finger Touch Portable Interactive White Board

Name: World's First Finger Touch Portable Interactive White Board
Brand: china-manufacturer-directory.com
SKU: 725264085
Availability: InStock
Rating: 4.8 (44 reviews)

Supplier:	Winsafe Technology Co., Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	WS-PIW01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Features

Unique Laser Image Technology;
Completely portable, less than 1kg weight;
Boardless, no need physical board, can work on any flat and even surface;
Auto calibration within 5s, 95% success rate;
Finger touch with multi-touch, up to 100" active size;
Can recognize plenty of gestures;
Supports up to 10-people multi-writing;
Software with English, Russia, Spanish, Korean, Polish Languages options.

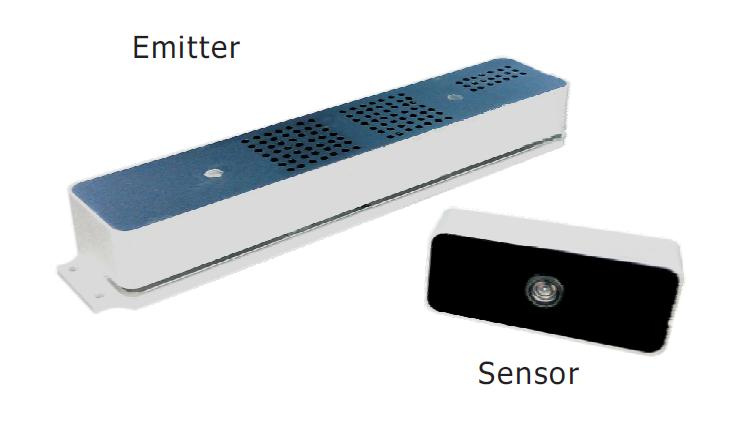

WS-PIW01 Portable interactive whiteboard comes with two parts: Emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisile light and parallel with the projection screen surface, 1-2mm above the screen surface. When fingers or any non-transparent objects touch this virtual sruface, the light will be reflected and detected by sensor. Computer will then figure out the position of the mouse by accrately calculating the reflected light position.

Model		WS-PIW01
Calibration		Automatic(5s) / Manual(25/36 points) / Semi Automatic (4 points)
Gesture Recognition		Single finger is for "Write", two fingers for "Move", "zoom in or out" and "scroll bar", Palm for "Erase", Palm stay 2s for spot, Palm two clicks for back to desktop
Multi-Touch		Ten points touch, write and erase can do together
Latency		<30ms
Filter		Software auto-control, enhance stability
Minimum Active Size		40 inch
Max Active Size		120 inch(no sunshine room); 100 inch(sunshine room)
Technology		Laser Image Technology
Positional Accuracy		±1 Pixel (Resolution 4096 * 4096)
Aspect Ratio		4:3;16:9;16:10
Projector Ratio		Ultra short throw:0.19, FP3ENGLD4, installation distance:0.30-0.4M; Short throw:0.34, FP3ENGLA4, istallation distance:0.54 - 1.1M; Long throw:3.0, FP3ENGLE4, installation distance:2.15-3.2M.
Laser Beam		Short throw / Long throw: 3units; Ultra short throw: 4 units
Laser Safety		CLASS I(Safety laser)
Wave of the laser		808nm
Power		5w
Power of the laser		150mW/Unit *3
Power requirements		5V/1.5A
Signal refresh rate		120fps
Connect		The sensor and computer are connected by USB cable; Emitter and Sensor are wireless; Emitter just need power
Weight		0.5kg
OS Requirement		Windows XP, Vista, Windows 7, Windows 8
Software		Calibration software(driver) and Glboard(education software)
Certification		CE,FCC
Package		1. Sensor;2. Emitter 3. Mounts 4. USB Cable(12m) 5. Pionter 6. Power adaptor 7. Manual.
