Product Specifications
| Prod Model: |
VOA-A-FC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

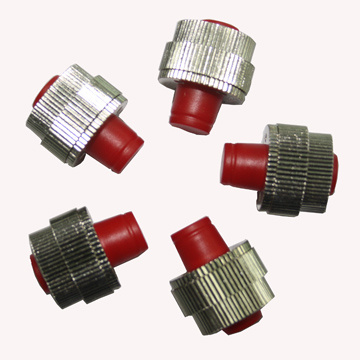

Variable Optical Attenuators - Adapter Type
Variable optical attenuator - adapter type has a structure similar to an optical adapter. It utilizes the air gap between the two connectors to realize optical attenuation. However, the air gap can be continuously adjusted and fixed manually. This induces a variable optical attenuation from 0.5dB to 35dB and 40dB. This component can be used in applications where optical attenuation needs to be frequently adjusted. It has very small size and is very low-cost.
Features:
High attenuation precision
Good stability
Small size and light weight
Easily adjusted
Applications:
Optical fiber communication systems
Optical fiber CATV systems
Optical power tests
Specifications:
1. Item Specification: Operating Wavelength(nm) 1310/1550
2. Excess Loss (dB): Less then0.3
3. Operating Temperature: -40~+85
4. Storage Temperature: -40~+85
5. Industry Standard: Telcordia TA-NWT-001209
Ordering Information:
VOA-A-FC
Note: Only FC type adapter VOA is available. This VOA suits FC/UPC or FC/APC connectors.
Shenzhen netcom technology Co., Ltd, is a highly professional and fast-developing company of Passive & Active Optical Components and FTTH system, and the factory is located in beautiful coastal industrial city-Shenzhen, China.
We provide Fiber media converter, Optical Transceiver, PLC Splitter, FBT Couplers, Fiber Optic Patch Cord, Fiber Optic Attenuator, Adapter, Connectors etc...
These years, SZ NetCom is always devoted to achieve "Quality First, Customers First" and Competitive price for the clients. All SZ NetCom's products are designed and tested to seriously meet the International Standards of Telcordia & RoHS Compliance.
Our professional R&D team and production team have excellent knowledge and work experience. We do believe that knowledge is power. We are dedicated to fulfill the needs of our customers by offering high quality products as well as prompt and reliable services.
If you are interested in any of our products, please don't hesitate to contact us. We look forwarding to cooperating with you.
