Quanzhou Truest Communication Co., Ltd. >> VHF&UHF Dual Band Two Way Radio Tc-Vu11cc

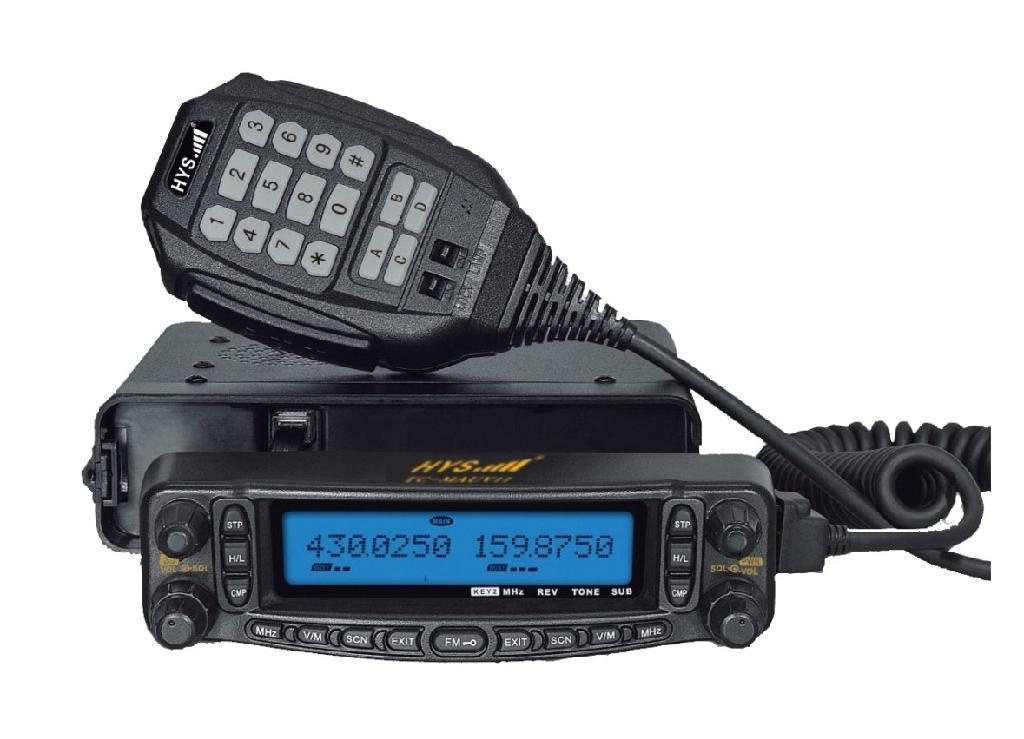

VHF&UHF Dual Band Two Way Radio Tc-Vu11cc

Name: VHF&UHF Dual Band Two Way Radio Tc-Vu11cc
Brand: china-manufacturer-directory.com
SKU: 756688505
Availability: InStock
Rating: 4.8 (72 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	TC-VU11CC
Markets:	North America,South America,Eastern Europe,Southeast Asia
Frequency Range:	FM:87-108MHz(Receiving) VHF:136-174.995MHz
Memory Channels:	128
Voltage:	7.5V
Operating Temperature:	Minus-30-Degree-60 Degree
Battery Capacity:	1600mAh
Working Mode:	Same Frequency Simplex or Double Frequency Simplex
Antenna Impedance:	50omen
Frequency Stability:	±2.5ppm
Net Weight:	Net Weight
Dimensions:	58X105X38mm
Style:	Sky Wave
Condition:	New
Screen:	With Screen
Standard:	Standard

Product Description

1. Frequency Range: 136-174MHz, 350-390MHz, 400-470MHz, 480-520MHz
2. Busy Channel lockout
3. Low Voltage Alarm with Sound and Light

4. Working Mode: U&V, U&U, V&V, V&U		21. Auto Backlight
5. Dual frequency display(Caller ID)		22. Auto/Manual Keyboard Lock
6. Dual frequency standby in any band		23. Three Display Color selectable both in transmitting,receiving and standby
7. Receiving and transmitting inter-band		24. Frequency, Channel order and Channel name multi-display mode
8. DTMF Signaling System		25. Calling Ring Function
9. Digital FM Radio		26. DTMF
10. 50 Groups CTCSS and 105 Groups DCS		27. PTT-ID Function
11. ANI Code Display		28. Mute mode (CTCSS/DCS, CTCSS/DCS and Optional Signal, CTCSS/DCS plus Optional Signal)
12. All calls, group calls and selective calls
11.Alarm(Distant Urgency Alarm and Alarm at local)		29. Offset Frequency( can be set between 0 and 69.9875 MHz in Frequency Mode)
13. Non-standard CTCSS(Can be edited arbitrary between 60Hz and 259.9 Hz)		30. Operating MENU directly through Keypad
14. TOT		31. Frequency, Channel and MENU Fast Search Function
15. High/Low Power shift		32. Channel Parameter can be saved in the Frequency Mode
16. CTCSS or DCS can be set respectively		33. 128 Channels
17. Channel Step(5K, 6.25K, 10K, 12.5K, 25K)		34. Reverse Frequency Function
18. VOX function		35. U/V Receiving and Transmitting Inter-Band can be Connected with Repeater
19. Battery Save Function		36. Wired Cloning Function
20 Wide and Narrow band Selectable (N:12.5KHz/W:25KHz)		37. PC Programmable
General Specifications
Frequency Range	FM:87-108MHZ(Receiving) VHF:136-174.995MHZ(Receiving &Transmitting) UHF0:350-390.995MHZ(Receiving) UHF1:400-479.995MHZ(Receiving &Transmitting) UHF2:480-520.955MHZ(Receiving)	Working Mode	Same frequency simplex or Double frequency simplex
Memory Channels	128	Antenna Impedance	50Ω
Voltage	7.5V	Frequency Stability	±2.5ppm
Operating Temperature	-30ºC-+60ºC	Net Weight	About 246g
Battery capacity	1600mAh (Li-ion)	Dimensions	58X105X38MM(without antenna)
Transmitter (Measurements made per TIA/EIA-603)
RF Output Power	High:4W ,Low:1W	Audio Modulation Characteristic	(300-3000Hz),+1dB- -3dB
Modulation Mode	16KφF3E/11KφF3E	Adjacent Channel Power	≥65dB
Spurious Radiation	<7μW	Modulation Distortion	≤5%
Max Offset frequency	Channel space 25KHz±5KHz/12.5KHz±2.5KHz	Channel Space	25KHz
Receiver (Measurements made per TIA/EIA-603)
Sensitivity	(12dBSINAD) 0.18μV	Co-channel Rejection	≥-0.8dB
Noise Quieting Sensitivity	≤0.8μV	Limited radio features	≤3
Squelch Sensitivity	≤0.2μV	Adjacent Channel Selectivity	≥55dB
Audio Output Power	500mW	Inter modulation characteristics	≥65dB
Audio Distortion	≤5%	Blocking characteristics	≥84dB
Audio Response	(300-3000Hz)+1dB--3dB	Spurious Radiation	9KHz-1GHz≤-57dBm
Channel Space	25KHz≥70dB/12.5KHz≥60dB

Compatible With American Military Standard(MIL-STD-810C/D/E)

Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.

In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.

For more information about Truest, contact us now.
