Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Universal Testing Machine |
| Power Source: |
AC380V |
Product Description
1. MAIN FUNCTIONS & FEATURES

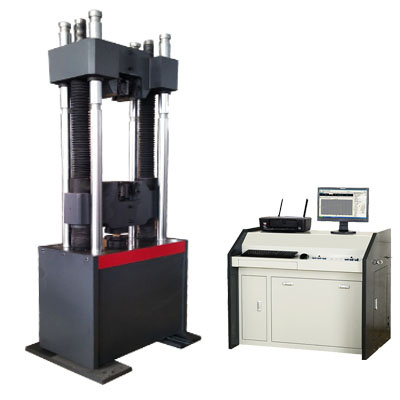

1) Using microcomputer controlled high precision electro-hydraulic servo valve to drive precise hydraulic cylinder and can realize constant speed control to test force, displacement, deformation, etc. and so that to make tensile, compression, bending tests. If equipped with accessories, it can comply with other test requirements for various materials;
2) Adopting underneath type hydraulic cylinder, which is installed at the bottom of the main machine, running stably; upper and lower jaw base are open structure, easy to clamp specimen;
3) Independent hydraulic servo loading system, using high precision broadband electro-hydraulic servo valve to ensure system high precision, high efficiency, low noise, quick response; using independent hydraulic clamping system to ensure system run stably and low noise, and no-slipping of specimen during test.
Microcomputer control and processing system:
l Servo control system: complete test parameters setting, test procedure auto control, data acquisition, processing, analysis, storage and display (test data including: upper and lower yield points, tensile strength, break strength, elastic modulus, elongation, proof strength of non-proportional elongation, etc.). It can realize closed-loop control of test force, deformation, displacement and constant speed control to test force, strain, displacement, deformation;
l Displaying test force, peak, deformation, piston displacement, test curve on screen, with intelligent system of full keyboard input and control mode, which can realize arbitrary setting and smooth shift between control modes;
l Complete data acquisition and processing (with many test methods, standards). With functions of simulation and reproduction of test procedure, re-analysis of test data, enlargement, comparison, traverse, zoom in or out of test curves;
l Using modularization, open programming, human design, users can freely adjust test standards, test reports, test parameters to meet with their different requirements, easy to upgrade and manage rights;
l Using database to manage test data;
l With expansion and updating capacity.
4) protection functions:
l limit position protection for oil cylinder;
l over current protection for hydraulic system;
l overload protection;
l over current, over voltage protection;
l safe protection at the time of specimen break;
l automatic protection after test.
2. MAIN TECHNICAL SPECIFICATION
| Item | WAW-1000D |
| Max. load(KN) | 1000KN |
| Measurement range | 2%-100%F.S |
| Relative error of indicating value | Less than ±1% |
| Load resolution | 0.1KN |
| Max. tensile space (including piston stroke) | 650 |
| Max. compression space (mm) | 500 |
| Span between columns (mm) | 550 |
| Max. clamping width of flat specimen | 70 |
| Clamping thickness of flat specimen | 0-40 |
| Clamping diameter of round specimen | 13-40 |
| Size of upper an lower pressure platen (mm) | 160 |
| Overall Dim. of main machine (mm) | 830*670*2100 |
| Overall Dim. of control cabinet (mm) | 1130*710*920 |
| Oil pump motor power | 4.5KW |
1. Brief introduction
Jinan Bang ke Testing Machine Co., Ltd, with rich experience and outstanding business philosophy, is specialized in designing and manufacture various testing machines. On the basis of our much experiences of designing and sales group, we have the ability to supply a variety of normal and special testing equipments and also our customers can enjoy our superior services.
2. Products
Electronic universal testing machine, Compression testing machine, Hydraulic universal testing machine, Tension testing machine, Static stiffness testing machine, Ring stiffness testing machine, Wood based panel testing machine, Torsion testing machine, Fatigue testing machine, Bending testing machine, Impact testing machine
3. Materials can be tested:
Metal and non-metal materials, Composite materials, Rubber and plastic, Construction materials, Weave, Package, Wire and cable, Spring, Tubing, Wood Pellet ore, Other materials.
4. Appliction industries
Mechanical metallurgy, Petrochemical industry, Construction, Electricity and coal industry, Measurement and quality inspection, Inspection, Aerospace, Transportation, etc.
