WCDMA 3G / 4G Lte Broadband 4G Router with 4 LAN RJ45 Port with Firewalls, VPN

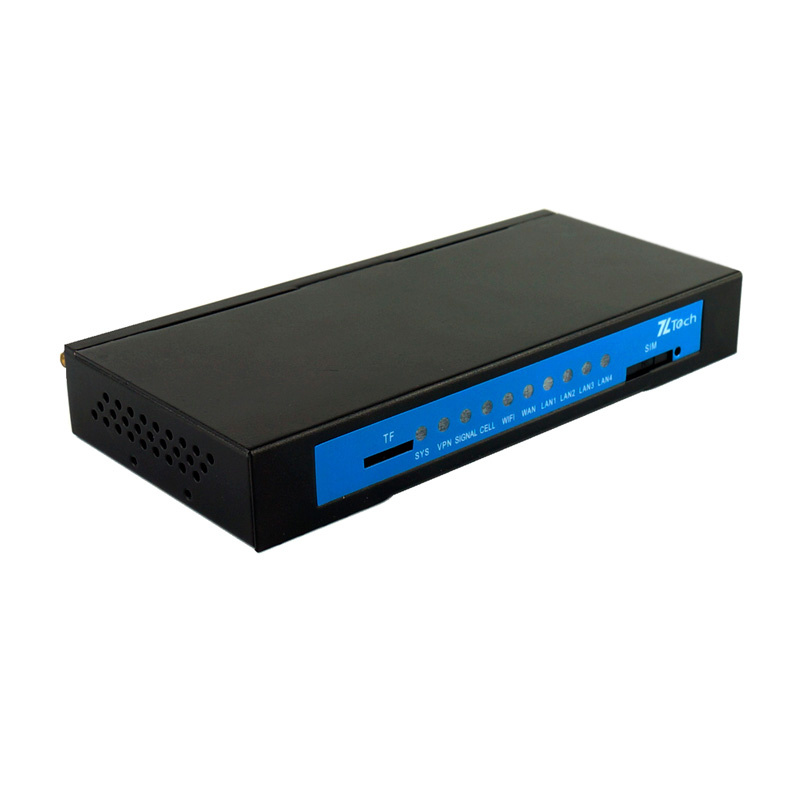

Name: WCDMA 3G / 4G Lte Broadband 4G Router with 4 LAN RJ45 Port with Firewalls, VPN
Brand: china-manufacturer-directory.com
SKU: 680424261
Availability: InStock
Rating: 4.3 (115 reviews)

Supplier:	Shenzhen Skymatch Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ZL-R520
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Wireless
Network Site:	Border Router
Transfer Rate:	100Mbps
Firewall:	Firewall
Ports:	≤4
Port Structure:	Modular
Application:	Enterprise
Performance:	Non Line Speed Router
Architecture:	Single Bus Symmetric Multi CPU
Network:	4G Lte, HSPA, HSPA+, WCDMA, GPRS/Edge and GSM, etc

Product Description

ZL-R520 series Cellular Router is designed for establish a 2G/3G/4G cellular wireless network and share a cellular broadband internet connection. The R520 adopt strict standard of the industrial-strength design that enable users to quickly create a secure network and provide access to the Internet using a cellular network.

Skymatch Industrial Mobile Data products are widely used in more than 50 countries and regions, and more than twenty M2M industrial fields, such as Smart Grids, ITS (Intelligent Transportation System), Intelligent Home System, Finance, POS, supply chain automatic management system, industrial automation, intelligent building, fire protection, public security, environmental protection, weather forecast, digital medical treatment, telemetry, military, space exploration, agriculture, forestry, water-related affairs, coal-mining industry, petrochemical industry and many other areas.

>>| Features

>>| Industrial Design

Adopt high-performance industrial-strength wireless module
Adopt high-performance 32-bit communication processor
Double card design, stable and reliable
Support low power mode, including sleep mode, timing starting up and shutdown mode, timing on-line and off-line mode
Adopt IP30 metal shell. The metal shell and system is isolated safely, specially fits to control industrial fields
Wide range input voltage:12-35V

>>| Stable and Reliable

Dual watchdog design to make sure stable system
Keep alive link, make sure data terminal online forever
Built-in 1.5KV electro-magnetic isolation protection in LAN and WAN
Built-in 1.5KV ESD protection in RS232, SIM/UIM.
Built-in phase-reversal and over-voltage protection in power port
Built lightning protection in antenna interface (optional

>>| Easy to use

Provide standard RS232, Ethernet port and WIFI port, can connect Serial devices, Ethernet and WIFI devices directly
Standard WAN port (support standard protocol PPPOE), can connect ADSL devices directly
Intelligent data terminal, transmit data while be connected
Multifunctional Central Management Software, manage devices conveniently (Optional)
Several work mode can be chosen, easy to use
Convenient system configuration and maintenance interface (include local/remote WEB/CLI

>>| Powerful Technique

Support several WAN connections (Includes Static IP, DHCP, L2TP, PPTP, PPPOE, 3G/HSPA/4G)
Support to switch from the mobile networks to wired WAN intelligently; Dual-link process backup intelligently (optional)
Support VPN client (PPTP/L2TP/TPSEC/GRE)
Support SNMP v1 v2 v3
Support remote management, SYSLOG/SNMP/TELNET/HTTP etc
Support local and remote online upgrade, import or export profile
Support NTP
Support to copy VLAN/MAC address
Support WIFI AP/AP Client (WIFI 802.11b/g/n supported) several working mode (optional)
Encrypt WIFI through WPA/WPA2, filter MAC address
Support APN/VPDN
Support DHCP Server and DHCP Client, DDNS, Firewall, NAT, DMZ mainframe flow statistication
Support several networking protocol like TCP/IP, UDP, FTP(optional), HTTP, etc.

Hardware Specifications

Wireless Module	Industrial Wireless module
Wireless Internet	Telecom:2G CDMA1x, 3G CDMA2000 EVDO Rev0, RevA , RevB; Unicom: 2G GSM/GPRS/EDGE,3G WCDMA HSDPA/HSUPA/HSPA/HSPA+/DC-HSPA+; Mobile: GSM/GPRS/EDGE, 3G TD-SCDM/TD-HSDPA/TD-HSUPA; 4G FDD LTE; 4G TD-LTE; Support GPRS/EDGE CLASS 12;
Wireless Spectrum	GSM 900/1800Mhz dual-band or 850/900/1800/1900Mhz quad-band;
	CDMA1x/EVDO: 800/1900Mhz or 450Mhz;
	TD-SCDMA/TD-HSDPA/TD-HSUPA 2010~2025MHz/1880~1920MHz;
	4G FDD LTE: Band 1--2100Mhz Band 2--1900Mhz Band 3--1800Mhz Band 4-AWS(1700/2100Mhz) Band 5--850Mhz Band 7--2600MHz Band 8--900Mhz Band 12--700Mhz Band 13--700(B13)Mhz Band 17--700(B17)/AWS Band 19-800Mhz Band 20--DD800Mhz Band 21 Band 25 - 1900Mhz G Block Band 31- 450Mhz other FDD LTE spectrum... 4G TDD LTE (TD-LTE): Band 41 - 2500/2600Mhz Band 40 -- 2300Mhz Band 39 - 1900Mhz Band 38 -- 2600Mhz other TDD LTE spectrum... Note: There are many different band and frequency. Please confirm which spectrum and frequency with your carriers you need before purchase.
Network Rate	4G LTE: FDD LTE Downlink 100Mbps, Uplink 50Mbps TDD LTE Downlink 150Mbps, Uplink 50Mbps DC-HSPA+ Internet: Downlink: 42Mbps; Uplink: 5.76Mbps
	HSPA+(H):Downlink: 21Mbps ;Uplink: 5.76Mbps
	HSPA+(L):Downlink: 14.4Mbps ;Uplink: 5.76Mbps
	HSUPA/HSPA : Downlink: 7.2Mbps;Uplink: 5.76Mbps
	HSDPA : Downlink: 7.2 Mbps;Uplink: 384k bps
	WCDMA/UMTS : Uplink / Downlink: 384 kbps
	EDGE : Downlink: 236.8 kbps;Uplink: 118 kbps
	GPRS : Downlink: 85.6 kbps;Uplink: 42.8 kbps CDMA1x : Uplink / Downlink:153.6kbps
	CDMA2000 EVDO Rev B: 14.4Mbps Downlink, 5.7Mbps Uplink Rev A: 3.1Mbps Downlink, 2.4Mbps Uplink Rev O: 2.4Mbps Downlink, 153.6kbps Uplink
	3G TD-SCDMA: Downlink rate 2.8Mbps,Uplink rate 2.2Mbps
Transmission Power	<24dBm
Receiver Sensitivity	<-109dBm

WIFI parameters

Standard and band	IEEE802.11b/g/n
Broadband	IEEE802.11b/g: MAX rate 54Mbps IEEE802.11n : MAX rate 300Mbps
Safety and Encryption	WPA/WPA2
Transmission Power	15dBm
Receiver Sensitivity	<-72dBm@54Mbps

Hardware system

CPU	Industrial 32-bit communication processor
FLASH	64Mbit
SDRAM/DDR	DDR2 512Mbit

Port

WAN	One 10/100M WAN , adaptive MDI/MDIX, Built-in 1.5KV electro-magnetic isolation protection
LAN	Four 10/100M LAN ,adaptive MDI/MDIX,Built-in 1.5KV electro-magnetic isolation protection
Serial	One RS232 serial ,Built-in 1.5KV ESD protection Serial parameters: Data bits: 5, 6, 7, 8 bit Stop bit: 1, 2 bit Check: None,even parity check, odd parity check, SPACE( chosen) and MARK check( chosen) Serial rate: 2400~115200bit/s
Antenna	Two WCDMA standard ; SMA Antenna Interfaces , impedance 50Ω Two WIFI standard SMA Antenna Interfaces , impedance 50Ω
Lamp	SYS System status lamp x1 CELL Call status lamp x1 VPN VPN lamp x1 SIGNAL Signal lamp x1 WIFI WIFI lamp x1 LAN LAN status lamp x4 WAN WAN status lamp x1
SIM/UIM	Standard drawer-style SIM ports , support 1.8V/3V SIM/UIM card, Built-in 1.5KV ESD protection
Power Port	Standard DC port ,Built-in phase-reversal protection Standard 3 core aviation port
RESET	A reset button
TF Port	One TF card port to extended memory

Power Supply

Standard Power	DC 12V/2A
Power Supply Range	DC 12~30V
Power Consumption	<450mA(12V)

Physical Features

Shell	Use IP30 metal shell
Dimensions	183x88.5x27mm (Not include the antennas and other installation parts)
Weight	800g

Work Environment

Work Temperature	-20~+80º C
Storage Temperature	-40~+85º C
Relative Humidity	95% ( No condensation)

Industrial Application

1) Finance: Bank saving room monitoring system, mobility securities trading and information inquiry system

2) Communication: power environment centralized control system, communication maintenance workers' line inquiry

3) Police: Police vehicle monitor and dispatching system, Mobility data inquiry (like ID, criminal records), mobile data communication inquiry (like car, driver files)

4) Heat: Thermodynamic system monitoring and maintenance

5) Power: Smart grid monitoring and maintenance

6) Company: Mobile office management, mobile data inquiry of the outworker

7) Industry: Remote sensing, Telemetry, and receiver of remote-control system

8) Weather: data acquisition and remote transmission

9) Water conservancy:water temperature detecting

10) Life: Real-time data collecting in offtake station, (water,sanitary sewer,gate,pump station) water plant remote monitor and maintenance

E-business: B2B,B2C E-business,e-payment, stock exchange etc

Monitoring: Video surveillance
