Wireless 3G Cellular Router, GSM Router, GPS Router for Vehicle Multimedia

Product Specifications

Prod Model:	ZL-B320
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Wireless
Network Site:	Border Router
Transfer Rate:	10/100/1000Mbps
Firewall:	Firewall
Ports:	≤4
Port Structure:	Modular
Application:	Enterprise
Performance:	Non Line Speed Router
Architecture:	Single Bus Symmetric Multi CPU
Network:	3G

Product Description

>>Product Introduction

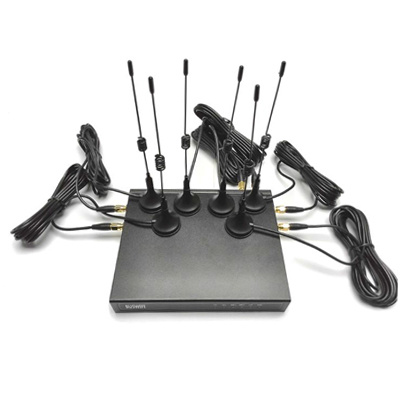

ZL-B320 is specially designed for vehicle multimedia equipment Wi-Fi Router. ZL-B320 adopted strict and high industrial standard for business users to provide an excellent internet connecting and entertainment solutions. ZL-B320 industrial router use 32-bit communication processor and industrial-grade wireless module. Besides, it provides a WAN port, a LAN port, a RS232 serial port, a WIFI interface, a SD card slot and a USB interface, it can connect a serial port, Ethernet and WIFI at the same time to provide data transmit transparently.

It is a creative product which has many functions, such as locate the position of trucks and manage the status of the vehicle, push advertisement, establish Wifi wireless network, enjoy offline html5 video, music, information or game, etc.


ZL-B320 Functions:
Locate the position of the Vehicle
Manage the status of the vehicle
Advertising Push,
Establish Wi-Fi wireless network, enjoy offline html5 video, music, information or game, etc.

>>| Features
>>| Industrial Design
Adopt high-performance 32-bit communication processor
Support low power mode, including sleep, timing starting up and shutdown, timing on-line and off-line
Adopt IP30 metal shell. The metal shell and system is isolated safely, specially fits to control industrial fields
Adopt high-performance industrial-strength wireless module
Wide range input voltage: 12-35V
>>| Stable and Reliable
Dual watchdog design to protect a stable system
Auto-dial feature, keep data terminal always online
Built-in 1.5KV electro-magnetic isolation protection in Ethernet port.
Built-in 1.5KV ESD protection in RS232, SIM/UIM port.
Built-in phase-reversal and over-voltage protection in power port
Built lightning protection in antenna interface
>>| Easy to use

RS232, WAN, LAN and WIFI are offered, can connect Serial, WAN, LAN and WIFI devices directly
Standard WAN port (support standard protocol PPPOE), can connect ADSL devices directly
Intelligent data terminal, transmit data while be connected
Multifunctional Central Management Software, manage devices conveniently
Several work module can be chosen, easy to use
Convenient system configuration and maintenance interface (include local/remote WEB/CLI)


>>| Powerful Technique

Support several WAN connections (includes static IP, DHCP, L2TP, PPTP, PPPOE, 3G/HSPA/4G)
Support VPN client (PPTP/ L2TP/ IPSEC/ GRE)
Support remote management, SYSLOG/SNMP/TELNET/ HTTP etc.
Support local and remote online upgrade, import or export profile
Support NTP
Support copy VLAN/MAC address
Support WIFI AP/AP Client (WIFI 802.11b/g/n supported)
Encrypt WIFI through WPA/WPA2, filter MAC address
Support APN/VPDN
Support DHCP Server and DHCP Client, DDNS, NAT, DMZ, mainframe flow statistication
Support several networking protocol like TCP/IP, UDP,  FTP(optional), HTTP, etc.
-----------------------------------------------------------------------------------------------------------------------------------------------

>>| Specifications
Basic Parameters


Items	Description
Wireless Module	Industrial Wireless module
Support Wireless Internet	Telecom:2G CDMA1x, 3G CDMA2000 EVDO Rev0, RevA , RevB; Unicom: 2G GSM/GPRS/EDGE,3G WCDMA HSDPA/HSUPA/HSPA/HSPA+/DC-HSPA+ Mobile: GSM/GPRS/EDGE, 3G TD-SCDM/TD-HSDPA/TD-HSUPA; 4G FDD LTE; 4G TD-LTE; Support GPRS/EDGE CLASS 12;
Wireless Spectrum	UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+(WCDMA/FDD)2100Mhz or 850/1900/2100MHz or 850/900/1900/2100Mhz/AWS;
	GSM 900/1800Mhz dual-band or  850/900/1800/1900Mhz quad-band;
	CDMA1x/EVDO: 800/1900Mhz or 450Mhz;
	TD-SCDMA/TD-HSDPA/TD-HSUPA 2010~2025MHz/1880~1920MHz;
	4G FDD LTE: Band 1--2100Mhz Band 2--1900Mhz Band 3--1800Mhz Band 4-AWS(1700/2100Mhz) Band 5--850Mhz Band 7--2600MHz Band 8--900Mhz Band 12--700Mhz Band 13--700(B13)Mhz Band 17--700(B17)/AWS Band 19-800Mhz Band 20--DD800Mhz Band 21 Band 25 - 1900Mhz G Block Band 31- 450Mhz other FDD LTE spectrum... 4G TDD LTE (TD-LTE): Band 41 - 2500/2600Mhz Band 40 -- 2300Mhz Band 39 - 1900Mhz Band 38 -- 2600Mhz other TDD LTE spectrum... Note:  There are many 4G LTE spectra, please confirm which spectrum you need before purchase.
Network Rate	4G LTE: FDD LTE Downlink 100Mbps, Uplink 50Mbps TDD LTE Downlink 150Mbps, Uplink 50Mbps DC-HSPA+ Internet:Downlink: 42Mbps;Uplink: 5.76Mbps
	HSPA+(H): Downlink: 21Mbps; Uplink: 5.76Mbps
	HSPA+(L): Downlink: 14.4Mbps; Uplink: 5.76Mbps
	HSUPA/HSPA : Downlink: 7.2Mbps; Uplink: 5.76Mbps
	HSDPA : Downlink: 7.2 Mbps; Uplink: 384k bps
	WCDMA/UMTS: Uplink / Downlink: 384 kbps
	EDGE : Downlink: 236.8 kbps; Uplink: 118 kbps
	GPRS : Downlink: 85.6 kbps; Uplink: 42.8 kbps CDMA1x : Uplink / Downlink:153.6kbps
	CDMA2000 EVDO Rev B: 14.4Mbps Downlink, 5.7Mbps Uplink Rev A: 3.1Mbps Downlink, 2.4Mbps Uplink Rev O: 2.4Mbps Downlink, 153.6kbps Uplink
	3G TD-SCDMA: Downlink rate 2.8Mbps, Uplink rate 2.2Mbps
Transmission Power	<24dBm
Receiver Sensitivity	<-109dBm

WIFI Parameters

Items	Description
Standard and band	IEEE802.11b/g/n
Broadband	IEEE802.11b/g: MAX rate 54Mbps IEEE802.11n: MAX rate 300Mbps
Safety and Encryption	WPA/WPA2
Transmission Power	15dBm
Receiver Sensitivity	<-72dBm@54Mbps

Hardware System

Items	Description
CPU	Industrial 32-bit communication processor
FLASH	64Mbit
SDRAM/DDR	DDR2 4Gbit

Interfaces

Items	Description
WAN	10/100M Ethernet port x1, adaptive MDI/MDIX, Built-in 1.5KV electro-magnetic isolation protection
LAN	10/100M Ethernet port x1, adaptive  MDI/MDIX, Built-in 1.5KV electro-magnetic isolation protection
Serial	RS232 serial port x1, Built-in 1.5KV ESD protection Serial parameters: Data bits: 5, 6,  7, 8 bit Stop bit:  1, 2 bit Check: None, even parity check, odd parity check, SPACE (chosen) and MARK check ( chosen) Serial rate: 2400~115200bit/s
Antenna	WCDMA standard SMA Antenna Interfaces  x2,  impedance 50 WIFI standard SMA Antenna Interfaces  x4,  impedance 50
Lamp	SYS        System status light x1 CELL     Call status light x1 VPN       VPN light x1 SIGNAL   Signal light  x1 WIFI     WIFI light x1 LAN      LAN status light x1 WAN     WAN status light x1
SIM/UIM	Two drawer-style SIM card slot ,  support 1.8V/3V SIM/UIM card, Built-in 1.5KV ESD protection
Power Port	Standard DC port, Built-in phase-reversal protection Standard 3 core aviation port
RESET	Reset button x1
TF Port	One TF port to extended memory

Power

Standard Power	DC 12V/2A
Power Supply Range	DC 12~30V
Power Consumption	<450mA(12V)

Physical

Shell	Use IP30 metal shell
Dimensions	213x89x27mm (not include antenna and installation parts)
Weight	800g

Environment

Work Temperature	-20~+80 degree
Storage Temperature	-40~+85 degree
Relative Humidity	95% ( No condensation)

Interfaces


1. Antenna x6
2. RJ45 LAN Port x1
3. SD Card Socket x1
4. Reset Button x1
5. USB Port x1
6. DC Power x1
7. RJ45 WAN Port x1
8. RS232 Serial x1

>>|Vehicle Router Applications:
-  WIFI Coverage
-  Advertising Push
-  CCTV
-  GPS
-  Vehicle Status Management
-  APP Development
