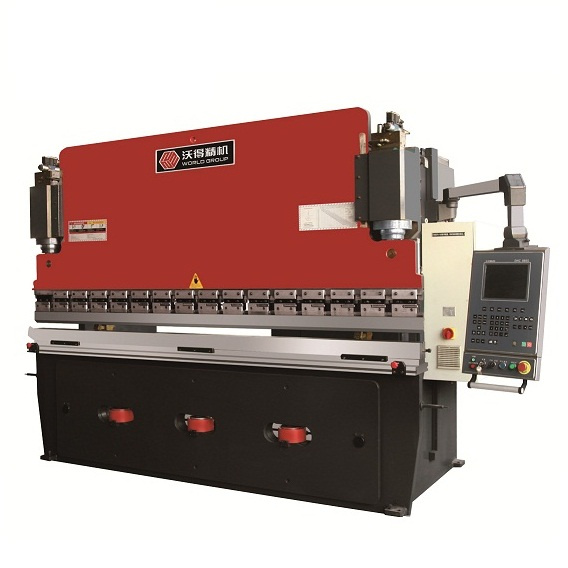

We67k-160X3200 Sheet Bending Machine with Delem Nc System

Name: We67k-160X3200 Sheet Bending Machine with Delem Nc System
Brand: china-manufacturer-directory.com
SKU: 737643425
Availability: InStock
Rating: 5 (145 reviews)

Price:	US $ 10000-50000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

WE67K-160x3200 sheet bending machine with Delem NC system

Features:
1)Two hydraulic cylinders with electro hydraulic servo valve.
2)Deflection can be compensated by hydraulic vaulted back-off system.
3)Backgauge mechanism can control several backgauge axes.
4)Frame is welded with steel plate and is treated with annealing.
5)Hydraulic system adopts integrated control system and imported ring seals.
6)CNC system uses Delem DA-52 system.
7)Axis: Y1+Y2+X+(V)

Item	unit	63/2500	63/3200	100/2500	100/3200	100/4000	125/2500	125/3200	125/4000
Nominal force	kN	630	630	1000	1000	1000	1250	1250	1250
Length of table	mm	2500	3200	2500	3200	4000	2500	3200	4000
Distance between uprights	mm	2050	2700	2050	2700	3200	2050	2700	3200
Throat depth	mm	300	300	350	350	350	350	350	350
Ram stroke	mm	100	100	120	120	120	120	120	120
Max. open height between ram and table	mm	400	400	400	400	400	400	400	400
Backgauge stroke	mm	500	500	500	500	500	500	500	500
Idle speed	mm/s	110	110	130	130	130	130	130	130
Work speed	mm/s	14	14	10	10	10	10	10	10
Return speed	mm/s	120	120	125	125	125	125	125	125
Main motor	kW	5.5	5.5	7.5	7.5	7.5	7.5	7.5	7.5
Overall dimension ( LxWxH )	mm	2750	3300	2750	3700	4150	2750	3300	4150
		1600	1600	1750	1570	1750	1750	1750	1750
		2450	2650	2700	2550	2750	2650	2750	2800
Weight	kg	6000	6600	8300	9500	11000	8800	10500	12000
Item	unit	160/2500	160/3200	160/4000	200/2500	200/3200	200/4000	250/2500	250/3200
Nominal force	kN	1600	1600	1600	2000	2000	2000	2500	2500
Length of table	mm	2500	3200	4000	2500	3200	4000	2500	3200
Distance between uprights	mm	2050	2700	3200	2050	2700	3200	2050	2700
Throat depth	mm	350	350	400	400	400	400	400	400
Ram stroke	mm	200	200	200	250	250	250	250	250
Max. open height between ram and table	mm	450	450	450	520	520	520	520	520
Backgauge stroke	mm	500	500	600	500	500	500	500	500
Idle speed	mm/s	120	120	120	110	110	110	110	110
Work speed	mm/s	10	10	10	10	10	10	10	10
Return speed	mm/s	115	115	115	110	110	110	110	110
Main motor	kW	11	11	11	18.5	18.5	18.5	18.5	18.5
Overall dimension ( LxWxH )	mm	2750	3300	4150	2750	3300	4150	2750	3300
		1800	1800	1800	2000	2000	2000	2000	2000
		2650	2750	2800	2800	2910	2950	2850	2930
Weight	kg	9600	11800	13200	10000	14500	16000	12800	15000
Item	unit	250/4000	320/3200	320/4000	400/3200	400/4000	400/5000
Nominal force	kN	2500	3200	3200	4000	4000	4000
Length of table	mm	4000	3200	4000	3200	4000	5000
Distance between uprights	mm	3200	2700	3200	2700	3200	4000
Throat depth	mm	400	400	400	400	400	400
Ram stroke	mm	250	250	250	300	300	300
Max. open height between ram and table	mm	520	550	550	570	570	570
Backgauge stroke	mm	500	500	500	500	500	500
Idle speed	mm/s	110	80	80	80	80	80
Work speed	mm/s	10	8	8	8	8	8
Return speed	mm/s	110	85	85	85	85	85
Main motor	kW	18.5	22	22	30	30	30
Overall dimension ( LxWxH )	mm	4150	3350	4150	3470	4270	5270
		2000	2100	2100	3200	3200	3200
		2980	3150	3200	4250	4370	4710
Weight	kg	17800	19600	22200	24000	26000	32000

Prod Model:	WE67K-160x3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Valve Brand:	Rexroth
Type For Cutting Machine:	Hydraulic Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
