Product Specifications
| Prod Model: |
YBF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
Product Description
1. General

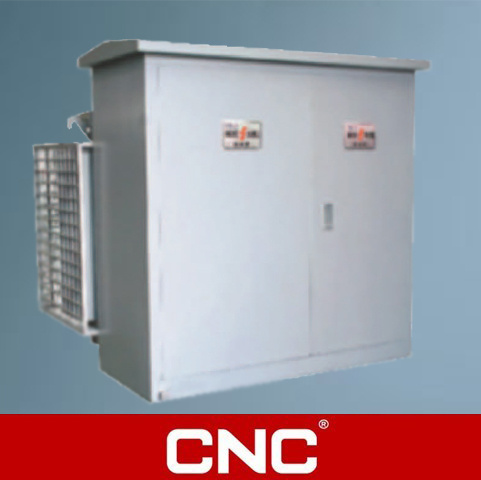

YBF-40.5/0.69 series wind power substation is a grid-connected exported specialized electricity transformation equipment, which raise the 0.6-0.69kV generated by wind power generating unit to 35kV. It was a kind of new wind power generating product developed by our company according to the new situation of national new energy source and wind power generating market requirements. It is a desirable wind power generation matching equipment which integrated reliability, security and technology economical efficiency.
3. Working Conditions
3.1 Ambient Temperature: -40ºC~40ºC
3.2 Altitude: ≤ 2000m
3.3 Humidity: Daily average ≤ 100%, monthly average ≤ 90
3.4 Earthquake intensity: ≤ Magnitude 8
3.5 Outdoor wind speed: ≤ 50m/s, Wind pressure ≤ 100kgf.
3.6 Pollution withstand class: Dirty area of III degree
3.7 Applicable in the outdoor places without fire, explosion danger, conductive dust and chemical corrosive gas.
3.8 Ice thickness ≤ 10mm.
4. Features
4.1 Transformers of this product adopt the high-quality silicon steel sheet material. Its no-load loss and load loss both are more energy-saving and environmental-friendly than similar products.
4.2 High-voltage parts adopt good-quality load switch + fuse combined electrical equipments, which can protect the Transformers rapidly and reliably. And small-capacity transformer is also equipped to provide 0.4 KV electricity used for lighting and maintenance of box-type transformer and wind tower.
4.3 Good performance of heat resistance, strong ability of overload operation.
4.4 Long working life which is over 20 years.
4.5 Maintenance free: There is no need to filter oil or alter oil during working life period, the sealing parts of Transformers have the same working life with Transformers.
4.6 High protection degree: The body of wind power substation adopts double-door sealing structure. The splice place of all doors are sealed by sealing rubber strip, and dust-proof equipment are installed in the ventilation opening, which can prevent dust, rain and storm from attacking the wind power substation effectively, the protection degree reach IP54.
CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.
Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.
We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
