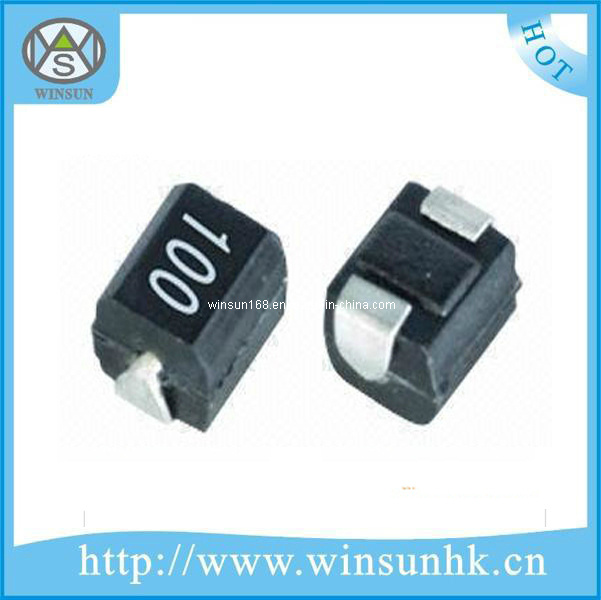

WS-FHW-UF Series Wire Wound Chip/SMD Ferrite Inductor
FEATURES:
. Minature size, suitable for SMT;
. Using terminal electrode structure to restrain the
parasitic component effect quite caused by lead;
. low DC resistance , high current and high inductance;
. Execellent in solderability and heat resistance.
. The product has good heat durability that withstands lead-free compatible reflow soldering conditions.
. Lead-free material is used for the plating on the terminal
. The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series.
. The product uses metal terminals, which realize excellent connection reliability.
. Highly heat resistant thermoplastic resin is used to form the exterior package.
. From 0.01μH to 1000μH, all of the products in the E-12 series are J(±5%)
tolerance products.
. This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available.
APPLICATIONS
Audio-visual equipment including TVs, VCRs and digital cameras.
Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.
Electronic equipment used in onboard automobile equipment
including car audio and ECU systems.
Other electronic equipment including HDDs and ODDs.
SPECIFICATIONS
Inductance : 0.01uH~1000uH
Size: 0603~1812
Rated Current : 20~1000mA(Max)
DCR : 0.13~28 Ω (Max)
SRF: 1.4~1150MHz(Min)
Operating temperature range :40 to +85°C
Storage temperature range: 10 to +40°C
ELECTRICAL CHARACTERISTICS
(WS-FHW-UF Series)
Follow-up have 0805, 1008 1210,1812 size
