Tengzhou Sanzhong Machinery Manufacture Co., Ltd. >> X6325W Vertical and Horizontal Turret Milling Machine

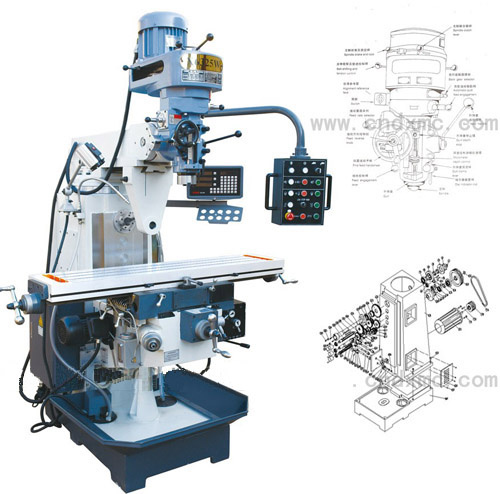

X6325W Vertical and Horizontal Turret Milling Machine

Name: X6325W Vertical and Horizontal Turret Milling Machine
Brand: china-manufacturer-directory.com
SKU: 676150122
Availability: InStock
Rating: 4.3 (100 reviews)

Supplier:	Tengzhou Sanzhong Machinery Manufacture Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	According to The Demand of The Customer
Processing Type:	Metal
Usage:	General
Precision:	Precision
Automatic Grade:	Semiautomatic
Object:	Metal
Type:	Turret Milling Machine
Structure:	Vertidal
Controlling Mode:	Normal

Product Description

Specification
X6325W

Table size
1270*260

Table travel
700*280*450

Spindle
Taper(mm)
NT30 R8 NT40

Driling dia(mm)
15

Quill travel(mm)
27

Main parts of size

Distance from spindle to table surface(mm)
100-490

Dirll press
Head swivels

Left Right
± 90°

Before Behind
± 45°

Main
Motor
Voltage
380V

Frequency
50Hz

Motor
3HP

Hardened guideways

7: 24/40 standard spindle

Hand lubricate system

X, Yaxis auto feeding

Z axis auto feeding be available at extra cost

Our company is special in producing milling machine, radial arm milling machine and multi-function turret milling machine which are popular in Europe, Southeast Asia market. With high quality, good credit, concentrate all for customer. We are obey the principle to satisfy with our customer by actively innovating, absorb other companies' advantage, perfecting every product, moves customers with good credit, wins customers with high quality. We will perfect our service with higher, faster, newer, stricter woking attitude, and afford our efforts for your success.
