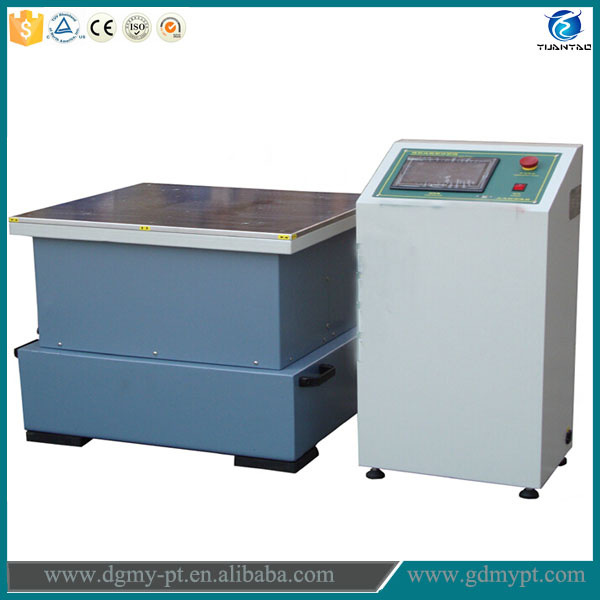

YEV-14 High Frequency Low Frequency Customization Electronic Type Vibration Machine
Introduction&Application:
Electromagnetic Type Vibration Tester, adopts " double magnetic circuit structure", " self generation
skeleton moving coil", "air suspension bearing", " linear bearing and roller guide", " ear shaft vibration
isolation" and other modern advanced technology and special technology, which can complete
respectively three shaft sine vibration test and broadband random vibration test, complete the classic (half
sine, trapezoid and after peak saw) pulse and shock response spectrum test. It also can complete
mechanics and climatic environment more comprehensive test equipped with climate box. Vibration
tester is widely applied to national defense, weapons, aviation, aerospace, communications, electronics,
electrical appliances, transportation, home appliances, etc.
Feature:
1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 4000 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault. 6 Best after sales service: One year free parts maintenance.
7 Customization is available & welcomed.
Technical parameters: See the label.
Except Electromagnetic Type Vibration Tester, Dongguan YuanYao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp.
Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test
equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase! We assure you of our best services at all times.
Specification |
Model | YEV-11 | YEV-12 | YEV-13 | YEV-14 | YEV-15 | YEV-16 |
Vibrator Model | GV100/25 | GV200/25 | GV300/25 | GV300/40 | GV500/25 | GV600/25 |
Frequency Range(Hz) | 2-4000 | 2-4000 | 2-4000 | 2-2500 | 2-3000 | 2-2500 |
Max. Exciting Force(kg.f) | 100 | 200 | 300 | 300 | 500 | 600 |
Max. Displacement(MMp-p) | 25 | 25 | 25 | 40 | 25 | 25 |
Max.Acceleration(G) | 40 | 80 | 80 | 33 | 83 | 100 |
Max. Speed(cm/s) | 150 | 150 | 160 | 120 | 150 | 150 |
Payload(kg) | 65 | 65 | 110 | 120 | 190 | 190 |
Moving Coil Weight (kg) | 2.5 | 2.5 | 4 | 9 | 6 | 6 |
Moving Coil Circular(mm) | 140 | 140 | 150 | 225 | 202 | 202 |
Vibrator Weight(kg) | 220 | 250 | 240 | 760 | 690 | 700 |
Dimensions(LWH)mm | 675×560×660 | 675×560×660 | 675×560×660 | 675×560×660 | 800×600×710 | 800×600×710 |
Power Amplifier Model | SA1K | SA2K | SA3K | SA4K | SA5K | SA6K |
Power Amplifier Weight(kg) | 210 | 210 | 250 | 300 | 300 | 320 |
Cooling Method | Force-Air Cooling |
Power Amplifier Size(L×W×H)mm | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 |
Power Source[k.w] | AC 1Ψ 220V/50Hz;3Ψ 380V 50Hz |
General Power(KVA) | 5 | 6 | 6 | 9 | 17 | 18 |
If want to know our goods' details, please contact me in your free time, thanks again.
