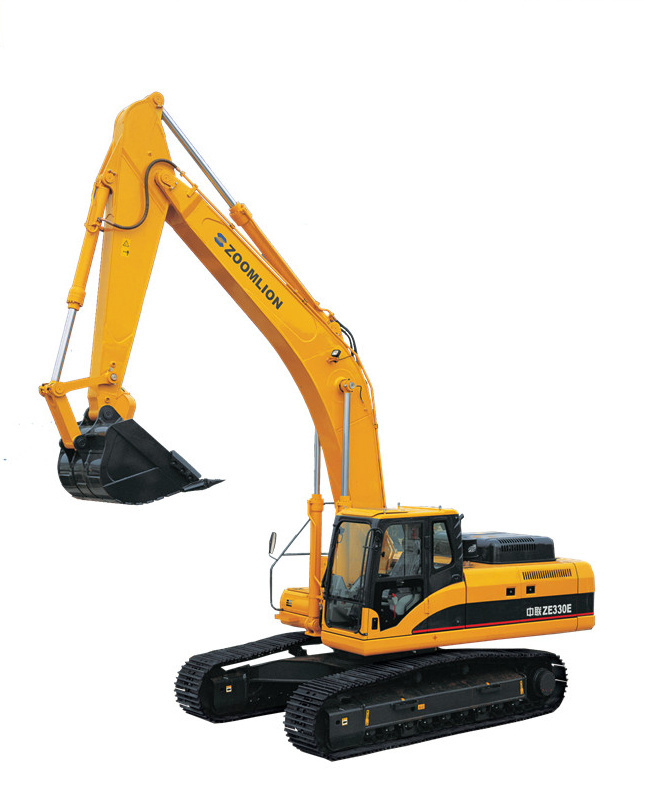

Zoomlion Crawler Excavator Ze330e

Zoomlion Crawler Excavator Ze330e
Supplier: Henan General Machinery Imp. & Exp. Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: ZE330E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Crawler Excavator
Size: Large-Scale
Condition: New
Certification: ISO9001: 2000

Product Description

(a)Supreme Power, High Reliability and Low Fuel Consumption

(b)Advanced and reliable hydraulic control system
Model ZE330E
Machine weight 31500 kg
Bucket capacity 1.45 m³
Swing armlength 6470 mm
Bucket rod length 3185 mm
Engine
Model Cummins 6CT8.3-C250
Type 6 cylinders, 4 stroke, water cooling, direct injection, turbochagred, inter0cooled
Rated power 198kw/2000rpm
Max. torque 1157N.m/1500 rpm
Bore×stroke 114×135 mm
Displacement 8300 ml
Hydraulic system
Main pump type Awry-plate type duplex variable dispalcement piston pump
Max. flow  2×264 L/min
Guide pump gear pump
Travelling motor Double-speed awry-plate type  piston motor with automatic brake and parking brake
Slewing motor Awry-plate type  piston motor with automatic brake
Working device Hydraulic circuit 32.4 Mpa (35.3 Mpa when boosting )
Travelling Hydraulic circuit 34.3 Mpa
SlewingHydraulic circuit 25.5 Mpa
Guide hydraulic circuit 3.9 Mpa
Hydraulic cylinder(No. of cylinders-Bore×stroke×piston rod diameter)
Swing arm 2-140×1480×100 mm
Bucket rod  1-160×1810×110 mm
Bucket  1-140×1285×100 mm
Dimension
Overall length 11150 mm
Overall width 3190 mm
Overall height (To Swing armtop ) 3374 mm
Tail slewing radius 3426 mm
Tail length 3403 mm
Counter weight ground height 1161 mm
Min. ground clearance 499 mm
Crawler ground length 3830 mm
Crawler length 4750 mm
Track gauge 2590 mm
Crawler span 3190 mm
Crawler board width 600 mm
Grouserheight 30 mm
Overall height (Cab top ) 3101 mm
Rotary table width 2995 mm
Working scope
Max.digging reach 11100 mm
Ground max.digging reach 10920 mm
Max.digging depth 7380 mm
Max. vertical digging depth 6480 mm
Max. digging height 10210 mm
Max. dummping height 7110 mm
Min. slewing radius   4310 mm
Coolant & lubrication oil capacity (Fullfilled )
Fuel tank 590 L
Hydraulic system 370 L
Hydraulic tank 195 L
Drive & brake system
Drive type Full hydraulic
Travelling motor Awry-plate type  piston motor
Reducing mechanism Planetary reducer
Slewing control Two levers with foot pedals
Parking brake Wet multi-disc plate brake
Max.tractoring force 264 kN
Gradeability 35° (70%)
Travelling speed (high/low) 5.1~3.3 km/h
HNGM in China is a national importer & exporter of electromechanical products, established in 1985 and get approved ISO9000.

Since then, Henan General Machinery Imp. & Exp. Co., Ltd, as a specialized trading company, has been providing kinds of mechanical products and services to the global market. With development of over 25 years, HNGM has built close relationships with lots of domestic manufacturers and more than 2, 000 overseas customers; We have business in the world.

With flexible management modes, our business scope has covered not only mechanical products which mainly include mining and engineering equipments, but also mineral materials; Refractories and chemicals.

The robust & close cooperation with manufacturers and some of research institutes makes HNGM is capable of helping customers to design/submit the complete solution for industry project.

HNGM has become the agent of NHL-Terex rigid dump truck and Siemens gear box and breakers. And we are endeavoring to get agents approval of some famous brands of wheel loader and bulldozers in China. By the above ways we could guarantee smoother supply of whole machines and spare parts.

In the past over 15years, the business of mineral materials; Refractories and chemicals are greatly expanded. Every year, HNGM exports more than 30, 000tons of variety of above materials products to foreign clients.

Nearly three decades' Precipitation and accumulation endows HNGM with incomparable advantages of mechanicals and raw materials. We are always ready to win more affirmation with cost-effective products and services.
