Product Specifications
| Prod Model: |
WAW-1000D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Round Specimen Jaw: |
Diameter 4mm-32mm |
| Flat Specimen Jaw: |
0-15mm |
| Tensile Space: |
500-600mm |
| Type: |
Universal Testing Machine |
| Weight: |
>2000Kg |
| Power Source: |
AC380V |
| Display: |
Computer Display |
| Maxcapacity: |
1000kn |
Product Description

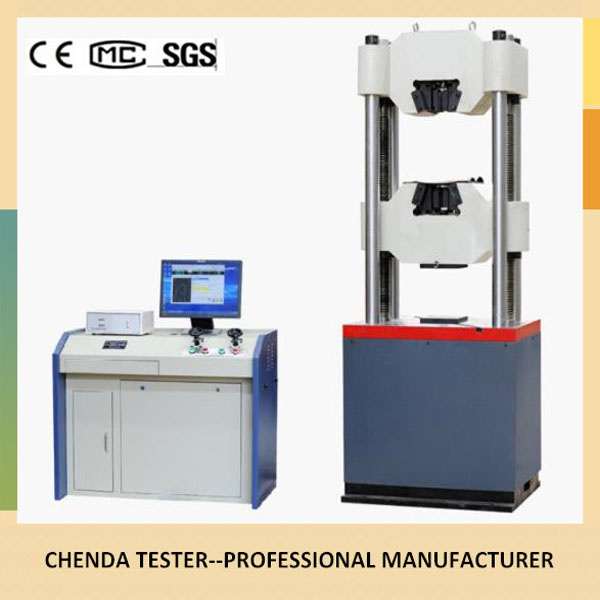

1000KN Four Colums Computer servo control hydraulic universal testing machine
Materials testing machine (hydraulic universal testing machine) is very suitable for making test of tensile, shear, compression and flexure. It is widely used in aerospace, machinery manufacturing, wire and cable, rubber, plastic, building materials and other industries of material test.
Function and features:
This testing machine is adopting oil hydraulic power to push the piston in the oil cylinder to provide lading force. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force. This series machine is hydraulic clamping and overload protection.
Packaging & shiping:
Packing with standard export wooden cases
Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
|
No. |
Name |
Specification |
quantity |
Remark |
|
1 |
Host |
Chenda |
1 |
|
|
2 |
Cabinet |
Chenda |
1 |
|
|
3 |
Measurement
and control system |
Chenda |
1 |
|
|
4 |
Oil pressure transducer |
|
1 |
|
|
5 |
Round specimen jaw
specification |
Φ4–Φ10mm Φ10–Φ20mm
Φ20–Φ32mm |
|
Standard delivery is 3 sets
tensile fixtures. The client's
can choice according to your
requirement |
|
6 |
Flat specimen jaw
specification |
0-15mm 15-30mm |
1 |
|
7 |
Compression specification |
|
1 |
|
|
8 |
Bending fixture |
|
1 |
|
|
9 |
Accompany document |
