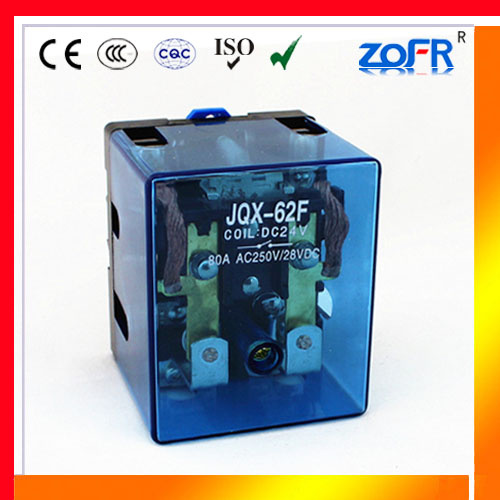

100A Dpdt Jqx-62f Power Relay
Product Specifications
| Prod Model: |
JQX-62F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Power Relay JQX-62F
Features:
1) (LWH) Outline Dimensions: 84x68x66mm
Specifications:
1) Contact Arrangement (China ) 2H, 2D, 2Z;
(International) 2A 2B 2C
2) Contact Rating: 80A 300VAC, 80A 30VDC ,120A 250VAC
3) Contact Resistance or Voltage drop: 50
4) Max.Switching Power: 2400W 24000VA
5) Max.Switching Voltage: 120Vdc 500Vac
6) Max.Switching Current: 80A , 120A
7) Mechanical Operation life: 1 107
8) Electrical Operation life: 1 104
9) Coil power consumption: 3. 6W to 6.0VA
10) Coil Rated Voltage: 6 220VDC 6 380VAC
11) Pickup voltage: 75% (DC) rated voltage , 80% (AC) rated voltage
12) Release voltage: 10% (DC) rated voltage, 30% (AC) rated voltage
Characteristics
1) action time: 30ms
2) release time: 30ms
3) VDC(max) Coil Maximan VoltageVDC: 120% rated voltage
4) Insulation Resistance: 1000 (at 500V)
5) Dielectric Strength (Between contacts): 1500VAC
(Between contact and coil): 2500VAC
6) Shock Resistance: 10G
7) Vibration resistance: 10~55Hz 10G double amplitude 1.5mm
8) Ambient Temperature: -40 ~ +60
9) Relative Humidity: 85% (at 40 )
Zhejiang Zhongji Technology Co., Ltd was established in 1991, with advanced technology, our company is equipped with high standard production lines and a stable technical staff, management team for production and examination.
We have more than 100 series and 1, 000 different kinds of relay specifications, and mainly manufacturer all types of electromagnetic relay, PCB relay, auto relay, high power relay, time relay, counting relay, microcomputer control switch, floatless relay, electromotor protection relay, power-saving control switch, solid state relay, static-stated electric relay, gas relay, the relay bases and so on.
The products of our company have been approved by CE, ISO9001, and the China Compulsory Certification (CCC).All of the products have been listed in quality control system in the China Product Quality Association ( CPQA) "21315".We have established many sales branch offices in the domestic market, and the products are well sold and highly praised in more than 30 provinces, cities and municipalities, and as far away in Europe, America, Southeast Asia, Middle East and Africa, etc.
Zhejiang Zhongji Technology Co., Ltd.With advanced technology, superior quality, reasonable price, good reputation, warm and thoughtful service, provides products to customers' satisfaction.We are willing to sincerely cooperation, create brilliance!
