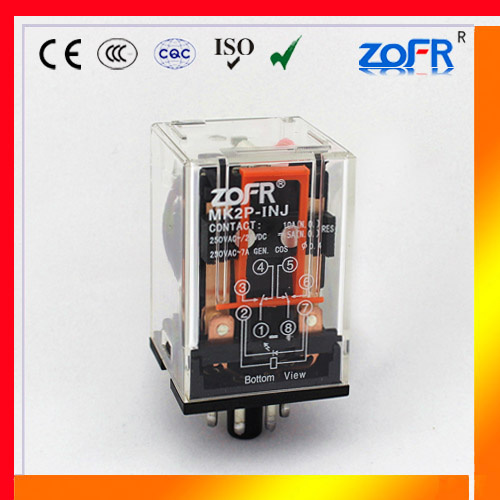

10A Dpdt General Purpose Relay Mk2p
Product Specifications
| Prod Model: |
MK2P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Place of Origin: Zhejiang China (Mainland) Brand Name: ZOFRModel Number: MK2P
Theory: Electromagnetic Relay Usage: General Purpose Size: 35*35*55mm
Protect Feature: Epoxy Contact Load: High Power
Packaging & Delivery
Packaging Detail: 300PCS one carton
Delivery Detail: 20000PCS within 6 Days
Features:
10A switching capability (2Z/2C type)
8PIN configurations
Environmental friendly product (RoHS available)
Various socket available, and dust cover of limpidity
Silver alloy contact available
Exterior size: 35*35*55mm
Specification:
Contact Form: 2Z (2C)
Initial Contact Resistance: 100Ω M(1A 6VDC)
Contact Material: Silver alloy AgCdO
Contact Rating(Res. Load): 10A 250VAC/30VDC
Coil Voltage: 3VDC/5VDC/6VDC/9VDC/12VDC/18VDC/24VDC/48VDC
Max. Switching Voltage: 250VAC/30VDC
Max. Switching Current: 10A
Max. Switching Power: 300W 2500VA
Mechanical life: 1× 107 times
Electrical life: 1× 105 times
Initial Insulation Resistance: 100m, 500VDC
Dielectric Strength: Between coil contacts 1500VAC 1min.
Between open contacts 1000VAC 1min.
Electric contact group 1500VAC 1min.
Operate Time (at nomi. Volt): 10ms
Release Time (at nomi. Volt): 5ms
Impact Resistance: Stability 100m/s2; Intensity 1000m/s2
Vibration Resistance: 1mm 10~55Hz
Humidity: 35%~95%R. H
Temperature: -40º ~ +70º
Termination: PCB and Plug type leading-out terminal
Construction: Dust cover
Coil power: DC: 1.5W AC: 2.5VA
Nominal Voltage: 5VDC/6VDC/12VDC/24VDC/48VDC/110VDC
6VAC/12VAC/24VAC/48VAC/120VAC/220VAC/240CAC
Action Voltage: 4.8VAC/9.6VAC/19.2VAC/38.4VAC/80.0VDC/88.0VAC
4.8VAC/9.6VAC/19.2VAC/38.4VAC/88VAC/176VAC
Drop-out Voltage: 0.60VDC/1.20VDC/4.80VDC/10.0VDC/11.0VDC
1.80VAC/3.60VAC/7.20VAC/14.4VAC/36.0VAC/72.0VAC
Max. Voltage: 7.2VDC/14.4VDC/28.8VDC/57.6VDC/120VDC/132VDC
7.2VDC/14.4VDC/28.8VDC/57.6VDC/132VDC/164VDC
Zhejiang Zhongji Technology Co., Ltd was established in 1991, with advanced technology, our company is equipped with high standard production lines and a stable technical staff, management team for production and examination.
We have more than 100 series and 1, 000 different kinds of relay specifications, and mainly manufacturer all types of electromagnetic relay, PCB relay, auto relay, high power relay, time relay, counting relay, microcomputer control switch, floatless relay, electromotor protection relay, power-saving control switch, solid state relay, static-stated electric relay, gas relay, the relay bases and so on.
The products of our company have been approved by CE, ISO9001, and the China Compulsory Certification (CCC).All of the products have been listed in quality control system in the China Product Quality Association ( CPQA) "21315".We have established many sales branch offices in the domestic market, and the products are well sold and highly praised in more than 30 provinces, cities and municipalities, and as far away in Europe, America, Southeast Asia, Middle East and Africa, etc.
Zhejiang Zhongji Technology Co., Ltd.With advanced technology, superior quality, reasonable price, good reputation, warm and thoughtful service, provides products to customers' satisfaction.We are willing to sincerely cooperation, create brilliance!
