Product Specifications
| Prod Model: |
JQX-30F 2Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specifications

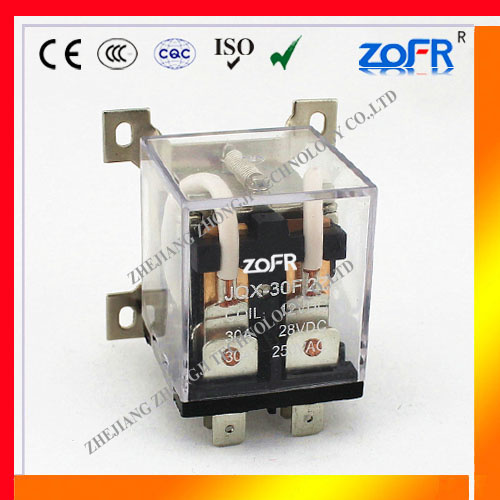

JQX-30F Transparent power relay
Coil Voltage: DC: 6~ 220V; AC: 6~380V
Silver alloy contacts
Copper material
Accept OEM services
JQX-30F Transparent power relay
Technical Data:
Contact form: 1Z, 1H, 1D/2Z, 2H, 2D
Contact material: Silver alloy
Contact capacity: 30A 250VAC/28VDC
Coil voltage: DC 6~220V; AC 6~380V
Coil power: DC≤ 2.0W; AC≤ 3.2VA
Nominal voltage: 6VDC, 12VDC, 24VDC, 48VDC, 60VDC, 110VDC
Nominal voltage: 12VAC, 24VAC, 48VAC, 110VAC, 220VAC, 240VAC
Contact resistance: ≤ 30mΩ (1A 6VDC)
Operation time: 20ms/15ms
Electrical life: 105
Mechanical life: 106
Dielectric strength: Between open contacts: 2500V 1min; Between coil and contacts: 1500V 1min
Operation ambient: -40~+55° c
Zhejiang Zhongji Technology Co., Ltd was established in 1991, with advanced technology, our company is equipped with high standard production lines and a stable technical staff, management team for production and examination.
We have more than 100 series and 1, 000 different kinds of relay specifications, and mainly manufacturer all types of electromagnetic relay, PCB relay, auto relay, high power relay, time relay, counting relay, microcomputer control switch, floatless relay, electromotor protection relay, power-saving control switch, solid state relay, static-stated electric relay, gas relay, the relay bases and so on.
The products of our company have been approved by CE, ISO9001, and the China Compulsory Certification (CCC).All of the products have been listed in quality control system in the China Product Quality Association ( CPQA) "21315".We have established many sales branch offices in the domestic market, and the products are well sold and highly praised in more than 30 provinces, cities and municipalities, and as far away in Europe, America, Southeast Asia, Middle East and Africa, etc.
Zhejiang Zhongji Technology Co., Ltd.With advanced technology, superior quality, reasonable price, good reputation, warm and thoughtful service, provides products to customers' satisfaction.We are willing to sincerely cooperation, create brilliance!
