Product Specifications
| Prod Model: |
JQX-40F 1Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specifications

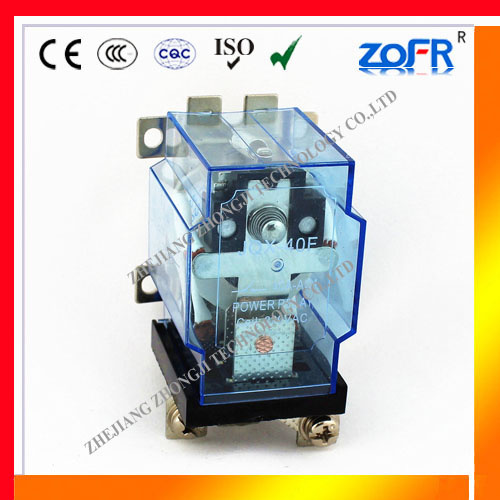

JQX-40F Power Relay 1Z 40A 220V
Contact capacity: 250VAC/30VDC
AgCdo material silver alloy
1Z, 2Z
Accept OEM sirvices
JQX-40F Power Relay 1Z 40A 220V
Specification
1) Outline dimensions: 74.0 X 47.0 X 47.0mm
2) Contact data:
A) Contact arrangement: 1Z(1C, 1H)
B) Materials: Silver alloy
3) Max. Switching current: 40A
4) Max. Switching voltage: 28V DC / 250V AC
5) Max. Switching power: 1.12KW / 10kVA
6) Rated load (resistive): 1Z: 28VDC/40A 250VAC/40A
2Z: 28VDC/40A 250VAC/40A
7) Coil data:
A) Nominal voltage: 6 - 220V DC / 6 - 380V AC
B) Picd-up voltage: AC≤ 75%, DC≤ 90%
C) Drop-out voltage: DC≥ 10%, AC≥ 30%
D) Coil power: 3.5W / 5.5VA
8) Specifications data:
A) Contact resistance: ≤ 50mΩ
B) Insulation resistance: ≥ 500mΩ
C) Dielectric strength Vr. M. S:
I) Between open contacts: ≥ 1, 500V AC
II) Between coil and contacts: ≥ 2, 000V AC
III) Between contacts form: ≥ 2, 000V AC
D) Ambient temperature: -45 - +55° C
E) Operation/release time: ≤ 20/20ms
Zhejiang Zhongji Technology Co., Ltd was established in 1991, with advanced technology, our company is equipped with high standard production lines and a stable technical staff, management team for production and examination.
We have more than 100 series and 1, 000 different kinds of relay specifications, and mainly manufacturer all types of electromagnetic relay, PCB relay, auto relay, high power relay, time relay, counting relay, microcomputer control switch, floatless relay, electromotor protection relay, power-saving control switch, solid state relay, static-stated electric relay, gas relay, the relay bases and so on.
The products of our company have been approved by CE, ISO9001, and the China Compulsory Certification (CCC).All of the products have been listed in quality control system in the China Product Quality Association ( CPQA) "21315".We have established many sales branch offices in the domestic market, and the products are well sold and highly praised in more than 30 provinces, cities and municipalities, and as far away in Europe, America, Southeast Asia, Middle East and Africa, etc.
Zhejiang Zhongji Technology Co., Ltd.With advanced technology, superior quality, reasonable price, good reputation, warm and thoughtful service, provides products to customers' satisfaction.We are willing to sincerely cooperation, create brilliance!
