Product Specifications
| Prod Model: |
T140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

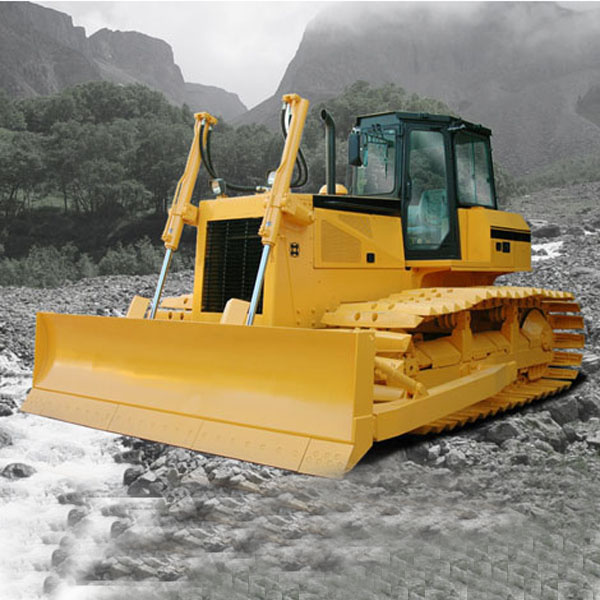

T140 bulldozer adopts the turbo-charged D6114ZG5B engine which features big power, low noise, good performance, and high reliability. The main clutch is of the two-plate wet constantly-engaged type, which has the function of hydraulic supporting power control. The gearbox is the 5F+4R constant-mesh skewed tooth mechanical transmission system. The driver's cab has a hexagonal shape, which provides a broader field of view. The bulldozer is equipped with a high-level comfortable vibration-absorbing seat. The A/C or the heating system is optional for the user to install depending on his or her demands.
The electronic instrument-monitoring device enables the driver to know the working status of the bulldozer at any time. The working mechanism adopts hydraulically pre-guiding control. T140 bulldozer is reasonable in its arrangement, easy to maintain and repair.
| Model | T140 |
| Total weight | 17500 kg (with ripper) |
| Max. traction force | 141 kN |
| Grade-ability | 30%, vertical; 25%, horizontal |
| Track width | 500 mm |
| Average specific ground pressure | 65 KPa |
| Overall dimensions (L×W×H) | 6342 ×3305×3175 mm (with ripper) |
| Min. ground clearance | 360 mm |
| Min. turning radius (mm) | 3900 mm |
| Diesel engine |
| Model | D6114ZGB |
| Type | 6-cylinder, water-cooled, turbo-charged direct injection |
| Rated power | 115 kW @1800rpm |
| Specific fuel consumption | 230 g/kw.h |
| Max. torque | 759 N.m |
| Traveling speed |
| Five forward gears | 2.5-10.6 km/h |
| Four reverse gears | 3.5-10.5 km/h |
| Shovel blade parameters |
| Overall dimension (WxH) | 3305x1167 mm |
| Max. lifting height | 915 mm |
| Max. depth into earth | 400 mm |
| Entrance angle (Adjustable) | 55 ° |
Since 1990, Kudat Industry and Trade Company has exported engineering machinery, construction machinery and agricultural machinery to international markets. Satisfying customers' stated and implied needs have always been the focus of business policy of Kudat. As a further step to satisfy customers and to give them confidence in our quality & production capabilities, Kudat has adopted ISO 9001: 2000, the international quality management system. And some of our products have also passed CE and EPA certification.
With a rich inventory of numerous products and vast sourcing capabilities (more than 60 famous manufacturers) cater to the requirements of its customers. Except abundant of products, we also set up factory for studying and producing relative machinery products. From base to top, Kudat holds a unique position in the global market of machinery products which is combination of production and trade.
With 16 years experience in the export of machinery products, Kudat has gained reputation and confidence as a reliable Chinese supplier. By virtue of committed management and dedicated employees, Kudat has gained recognition from the government of China as an excellent exporter.
